144 Rockwell Automation Publication 5094-UM001E-EN-P - April 2020
Appendix B Module Tag Definitions
The tables contained in this section list all of the tags available with a module.
Not all tags in the list are used when that module type is added to a project. Tag
use varies by module configuration.
Tag Name Conventions
The module tag names use defined naming conventions. The conventions are as
follows:
Example tag name = Adapter1:I.Pt00.Data
• Adapter = name of the FLEX 5000 EtherNet/IP adapter in the
FLEX 5000 I/O system
•1 = slot number
•I = tag type
The possible FLEX 5000 I/O tag types are C (configuration), EI (event
input), EO (event output), I (input), and O (output)
• Pt00 = module point number
• Data = tag function
In this case, Data represents the input data that is returned to the owner-
controller.

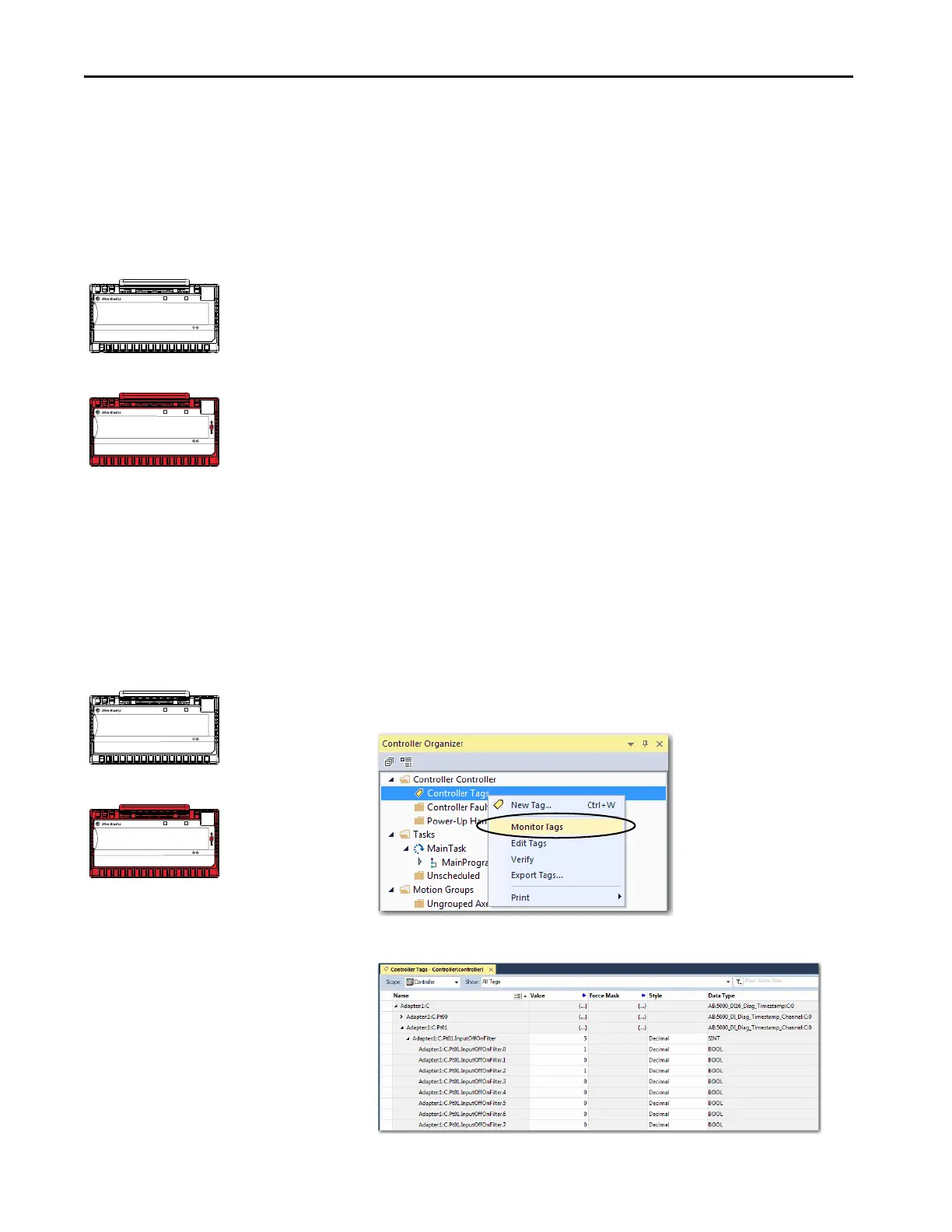

Access the Tags
You view tags from the Tag Editor.
1. Open your Logix Designer application project.
2. Right-click Controller Tags and choose Monitor Tags.
3. Open the tags as necessary to view specific tags.
STATUS
POWER
SAFETY DIGITAL 16 INPUT 24 VDC
5094-IB16S
5
5
TB3I
FLEX 5000
TM
I/O
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
STATUS
POWER
DIGITAL 16 INPUT 24 VDC
5094-IB16
1
1
TB3
FLEX 5000
TM
I/O
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Safety Modules
Standard Modules
STATUS
POWER
SAFETY DIGITAL 16 INPUT 24 VDC
5094-IB16S
5
5
TB3I
FLEX 5000
TM
I/O
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
STATUS
POWER
DIGITAL 16 INPUT 24 VDC
5094-IB16
1
1
TB3
FLEX 5000
TM
I/O
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Safety Modules
Standard Modules
