Appendix B Module Tag Definitions
5094-IB16 Module Tags
This section describes the tags that are associated with the 5094-IB16 module.
Configuration Tags
Tab le 36 describes the 5094-IB16 module configuration tags.
STATUS
POWER
DIGITAL 16 INPUT 24 VDC
5094-IB16
1
1
TB3
FLEX 5000
TM
I/O
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Standard Modules

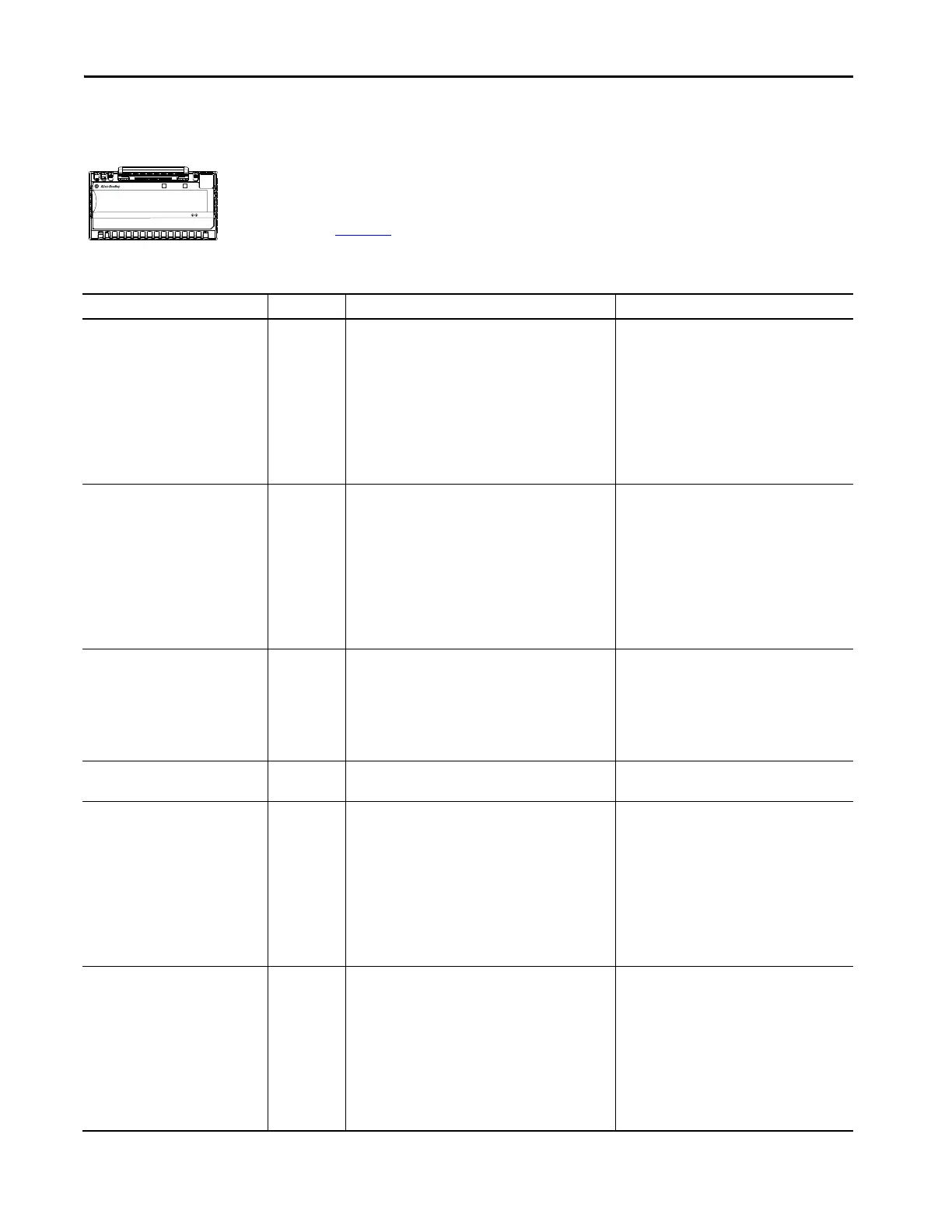

Table 36 - 5094-IB16 Module Configuration Tags
Name Data Type Definition Valid Values
Counterxx.InputOffOnFilter SINT The amount of time that a signal must be in the on state
before the input data indicates the on state.
The amount of time is indicated using an enumeration. Not
all products support all enumeration values.
•9 = 0 μs
• 10 = 100 μs
• 11 = 200 μs
• 12 = 500 μs
• 13 = 1 ms
• 14 = 2 ms
• 15 = 5 ms
• 16 = 10 ms
• 17 = 20 ms
• 18 = 50 ms
Counterxx.InputOnOffFilter SINT The amount of time that a signal must be in the off state
before the input data indicates the off state.
The amount of time is indicated using an enumeration. Not
all products support all enumeration values.
•9 = 0 μs
• 10 = 100 μs
• 11 = 200 μs
• 12 = 500 μs
• 13 = 1 ms
• 14 = 2 ms
• 15 = 5 ms
• 16 = 10 ms
• 17 = 20 ms
• 18 = 50 ms
FieldPowerDiagEN BOOL Determines whether the point faults when no field power is
present.
• If the input is powered from the SA, select this checkbox
to monitor the status of the SA power.
• If the input is powered from another power supply, do
not select this checkbox, so that the input continues to
work even when there is no SA power
• 0 = Field Power/SA Power Diagnostics is not sent
to the controller.
• 1 = Field Power/SA Power Diagnostics is sent to
the controller. Use this if the sensor uses the SA
power in the terminal base.
Counterxx.RolloverAtPreset BOOL Determines whether the simple counter will rollover to 0
when it reaches O:Preset (1) or at 2147483647 (0).
• 0 = Maximum value
•1 = Preset value
Ptxx.InputOffOnFilter SINT The amount of time that a signal must be in the on state
before the input data indicates the on state.
The amount of time is indicated using an enumeration. Not
all products support all enumeration values.
Ptxx depends on the number of counters that have been
configured.
•9 = 0 μs
• 10 = 100 μs
• 11 = 200 μs
• 12 = 500 μs
• 13 = 1 ms
• 14 = 2 ms
• 15 = 5 ms
• 16 = 10 ms
• 17 = 20 ms
• 18 = 50 ms
Ptxx.InputOnOffFilter SINT The amount of time that a signal must be in the off state
before the input data indicates the off state.
The amount of time is indicated using an enumeration. Not
all products support all enumeration values.
Ptxx depends on the number of counters that have been
configured.
•9 = 0 μs
• 10 = 100 μs
• 11 = 200 μs
• 12 = 500 μs
• 13 = 1 ms
• 14 = 2 ms
• 15 = 5 ms
• 16 = 10 ms
• 17 = 20 ms
• 18 = 50 ms
