98 Rockwell Automation Publication 5094-UM001E-EN-P - April 2020

Chapter 6 Configure the Standard Module

Points Category

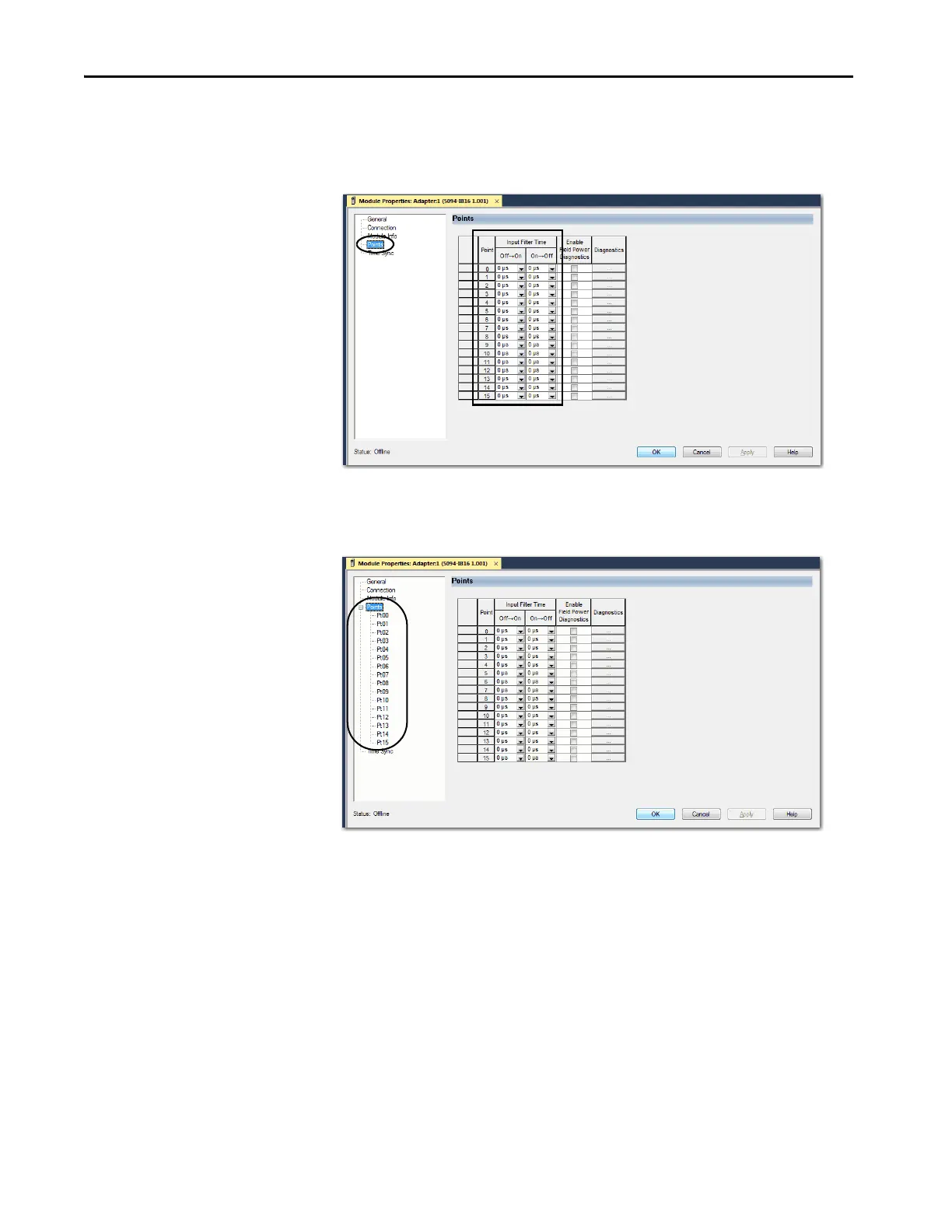

The Points category shows the available input filter time values for the

module points.

If you choose Timestamped Data for Input Data in the Module Definition dialog

box, the Points category expands.
