Rockwell Automation Publication 5094-UM001E-EN-P - April 2020 133
Troubleshoot Your Module Appendix A
FLEX 5000 Safety Input
Modules Status Indicators

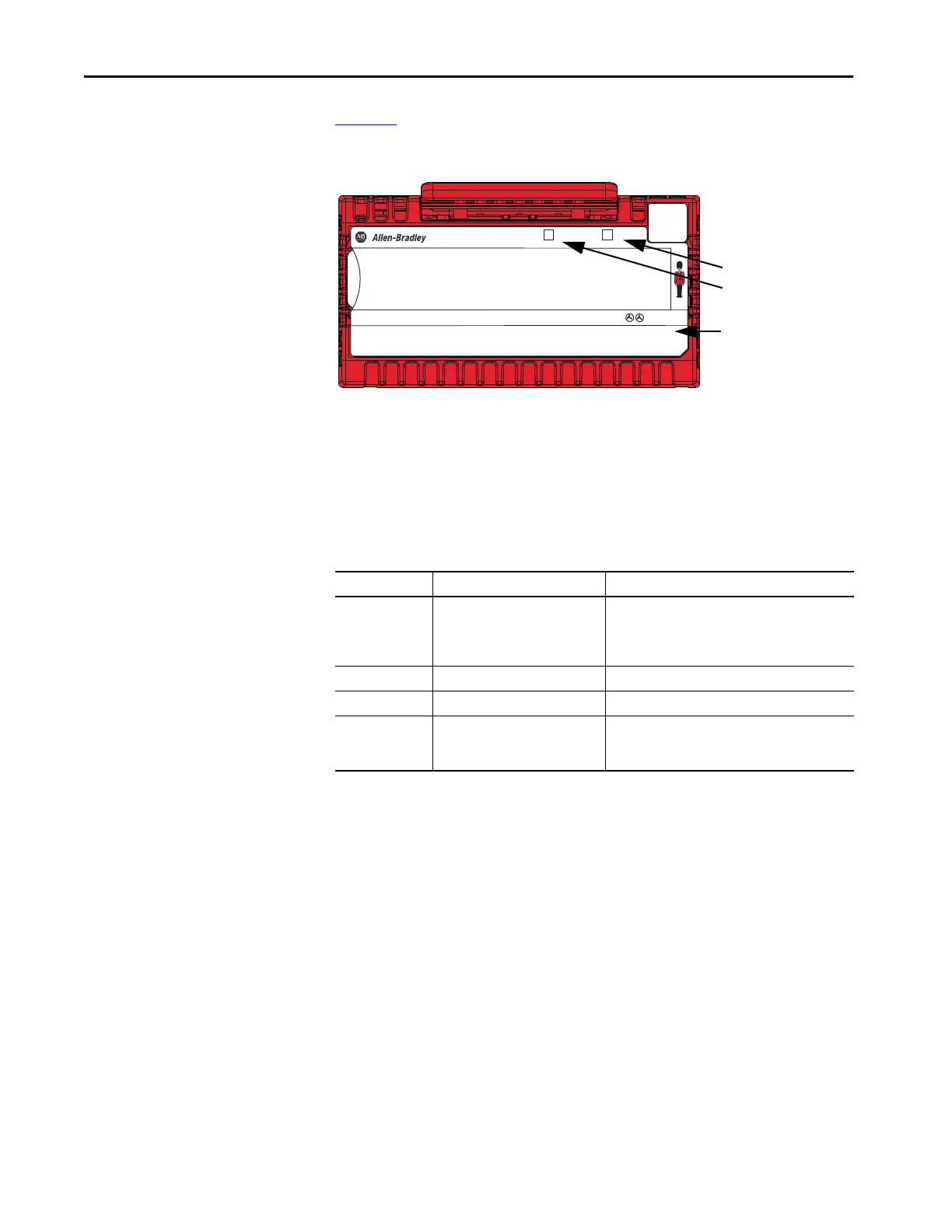

Figure 21 shows the status indicators on FLEX 5000 safety input modules.
Figure 21 - FLEX 5000 Safety Input Modules
Table 29 - I/O Status Indicators - FLEX 5000 Safety Input Modules
Indicator State Description Recommended Action
Off One of the following:
• The input point is Off.
• There is no backplane power.
One of the following:
• Confirm that the input point is configured properly.
• Confirm that there is backplane power supplied
through the FLEX 5000 EtherNet/IP adapter.
Steady yellow The input point is operating normally. None
Flashing red Recoverable faults. Locate and correct faults.
Steady red • A Field Power Loss condition
exists.
• Internal channel fault.
• Locate and correct the cause of field power loss
condition.
• Locate and correct the internal fault.
STATUS
POWER
SAFETY DIGITAL 16 INPUT 24 VDC
5094-IB16S
5
5
TB3I
FLEX 5000
TM
I/O
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Module status indicator
SA power status indicator
I/O status indicators
Input Point 0 (I00)
Input Point 1 (I01)
Input Point 2 (I02)
Input Point 3 (I03)
Input Point 4 (I04)
Input Point 5 (I05)
Input Point 6 (I06)
Input Point 7 (I07)
Input Point 8 (I08)
Input Point 9 (I09)
Input Point 10 (I10)
Input Point 11 (I11)
Input Point 12 (I12)
Input Point 13 (I13)
Input Point 14 (I14)
Input Point 15 (I15)
