Appendix A Troubleshoot Your Module
FLEX 5000 Input Modules
Status Indicators

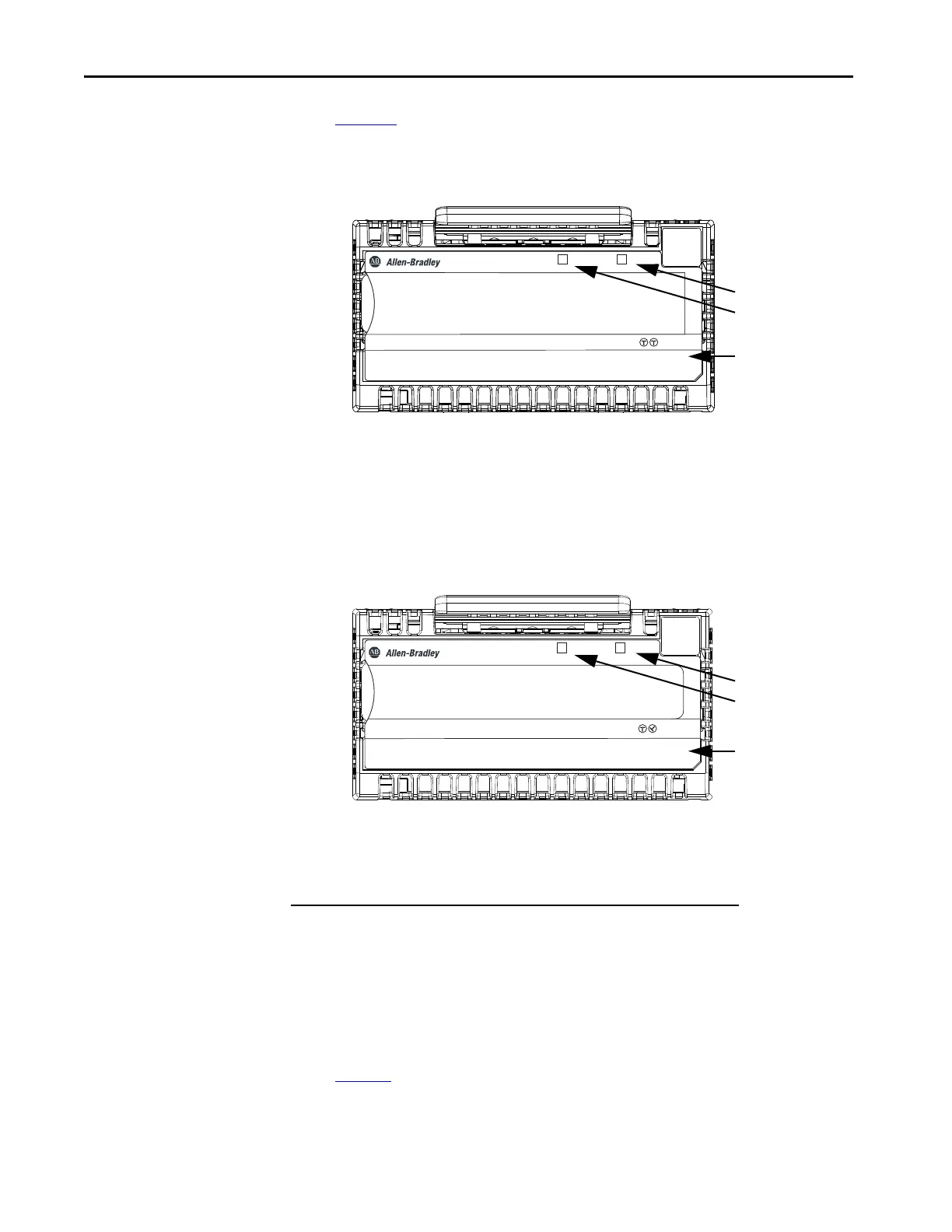

Figure 16 shows the status indicators on FLEX 5000 DC input modules.
Figure 16 - FLEX 5000 DC Input Module Status Indicators
Tab le 24 describes the I/O Status indicators on FLEX 5000 input modules.
STATUS
POWER
DIGITAL 16 INPUT 24 VDC
5094-IB16
1
1
TB3
FLEX 5000
TM
I/O
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Input Point 0 (I00)
Input Point 1 (I01)
Input Point 2 (I02)
Input Point 3 (I03)
Input Point 4 (I04)
Input Point 5 (I05)
Input Point 6 (I06)
Input Point 7 (I07)
Input Point 8 (I08)
Input Point 9 (I09)
Input Point 10 (I10)
Input Point 11 (I11)
Input Point 12 (I12)
Input Point 13 (I13)
Input Point 14 (I14)
Input Point 15 (I15)
SA power status indicator
I/O status indicators
5094-IB16, 5094-IB16XT
Module status indicator
STATUS
POWER
FLEX 5000
TM
I/O
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
DIGITAL 32 INPUT 24 VDC
5094-IB32
14
TB32V
16 17 18 19 20
21 22 23
24 25 26
27 28 29 30 31
Input Point 0 (I00)
Input Point 1 (I01)
Input Point 2 (I02)
Input Point 3 (I03)
Input Point 4 (I04)
Input Point 5 (I05)
Input Point 6 (I06)
Input Point 7 (I07)
Input Point 8 (I08)
Input Point 9 (I09)
Input Point 10 (I10)
Input Point 11 (I11)
Input Point 12 (I12)
Input Point 13 (I13)
Input Point 14 (I14)
Input Point 15 (I15)
SA power status indicator
I/O status indicators
5094-IB32, 5094-IB32XT
Module status indicator
Input Point 16 (I16)
Input Point 17 (I17)
Input Point 18 (I18)
Input Point 19 (I19)
Input Point 20 (I20)
Input Point 21 (I21)
Input Point 22 (I22)
Input Point 23 (I23)
Input Point 24 (I24)
Input Point 25 (I25)
Input Point 26 (I26)
Input Point 27 (I27)
Input Point 28 (I28)
Input Point 29 (I29)
Input Point 30 (I30)
Input Point 31 (I31)
Top row
Bottom row
To Next Page
