Publication 2094-UM001A-EN-P — September 2006
132 Configure and Startup the Kinetix 6000 Drive System
Configure the Motion Group
Follow these steps to configure the motion group.
1. Right-click Motion Groups in the explorer dialog and select New
Motion Group.
The New Tag dialog opens.
2. Name the new motion group.
3. Click OK.
New group appears under the Motion Groups folder.

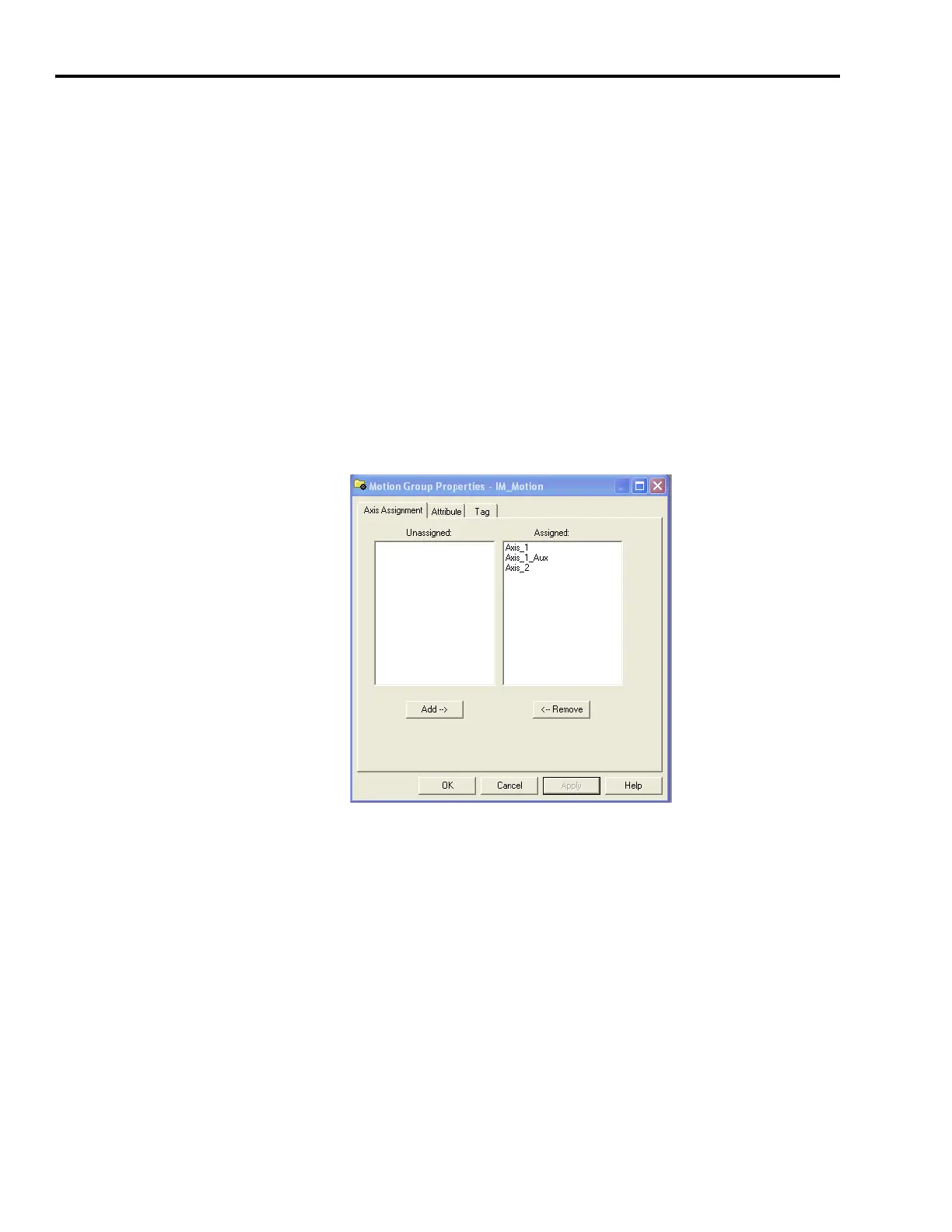

4. Right-click the new motion group and select Properties.
The Motion Group Properties dialog opens.
5. Select the Axis Assignment tab and move your axes (created
earlier) from Unassigned to Assigned.
6. Select the Attribute tab and edit the default values as appropriate
for your application.
7. Click OK.
