Publication 2094-UM001A-EN-P — September 2006
DC Common Bus Applications 237

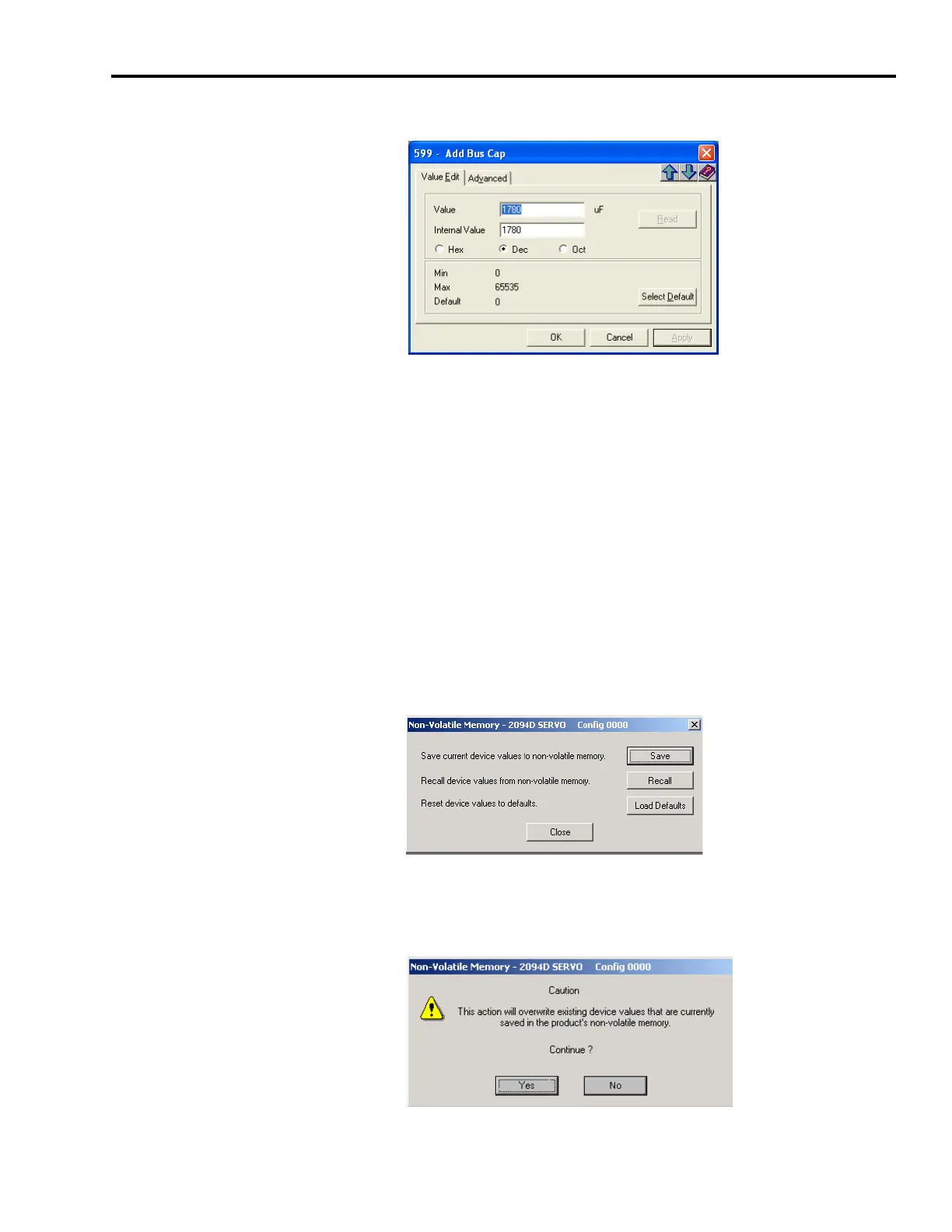

The command dialog for parameter x599 - Add Bus Cap opens.
6. Select the Value Edit tab and enter the Add Bus Cap Value (μF).
7. Click OK.
The RBM delay time is changed, but not saved in non-volatile
memory.
Saving the Add Bus Cap Parameter to Non-Volatile Memory
Follow these steps to save the Add Bus Cap parameter to non-volatile
memory.
1. From the menu bar choose Actions\Non-Volatile Memory.
The following message dialog opens.
2. Click Save.
The changes are saved to non-volatile memory and the following
cautionary message dialog opens.
3. Click Yes.
