Publication 2094-UM001A-EN-P — September 2006
78 Connecting the Kinetix 6000 Drive System
Grounding Your
Kinetix 6000 System
All equipment and components of a machine or process system
should have a common earth ground point connected to chassis. A
grounded system provides a ground path for short circuit protection.
Grounding your modules and panels minimize shock hazard to
personnel and damage to equipment caused by short circuits,
transient overvoltages, and accidental connection of energized
conductors to the equipment chassis.
Grounding Your System to the Subpanel
The 2094 power rail (2094-PRx or 2094-PRSx) ships with a braided
ground strap, 100 mm (3.9 in.), that connects to the bonded cabinet
ground bus. Connect the other end to either the power rail ground
stud or mounting bracket ground stud, if mounting brackets are used.

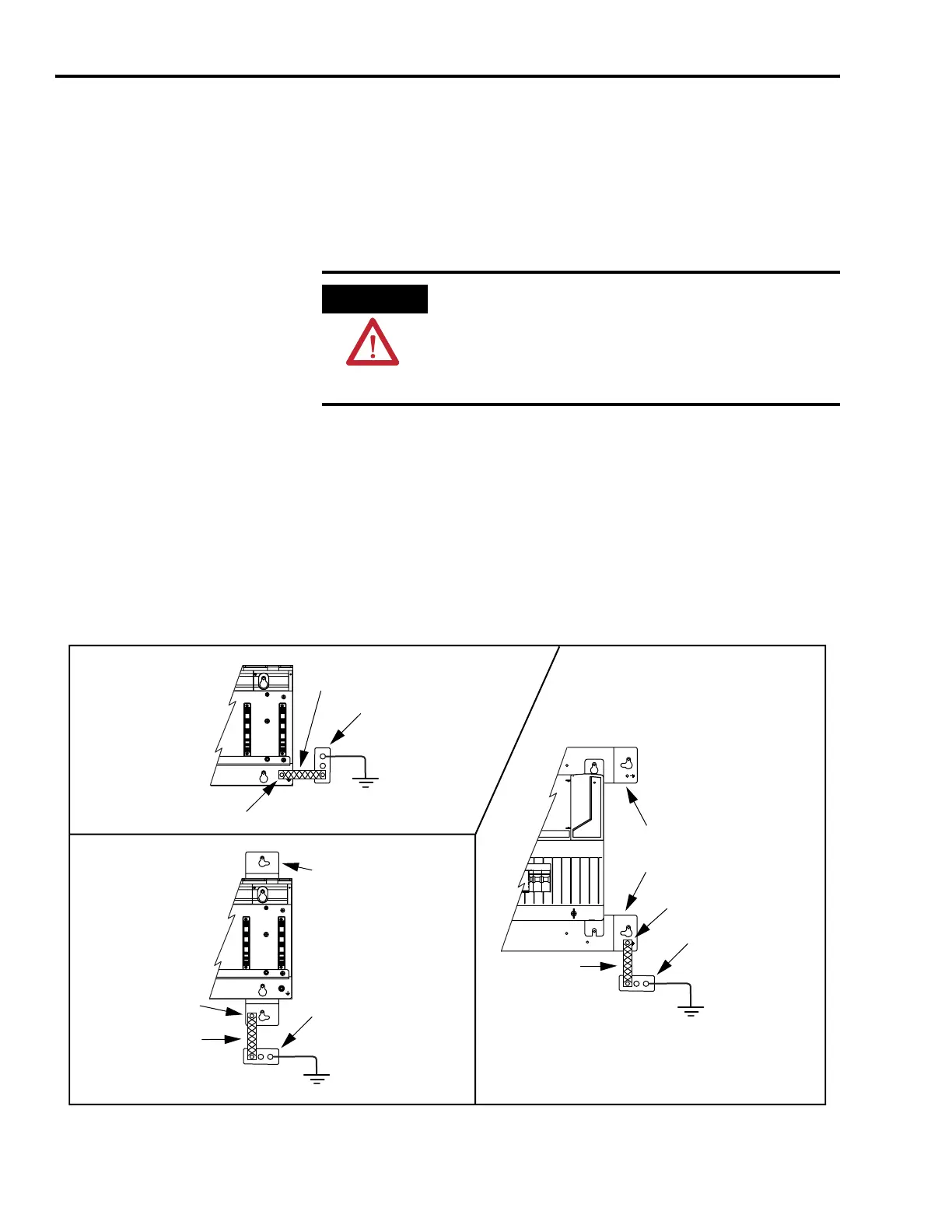

Connecting the Braided Ground Strap Examples
ATTENTION
The National Electrical Code contains grounding requirements,
conventions, and definitions. Follow all applicable local codes
and regulations to safely ground your system.
For CE grounding requirements, refer to Agency Compliance on
page 16.
LIM
PRS
PR
LIM
PR/PRS
PR
PR
Ground Grid or Power
Distribution Ground
Bonded Cabinet
Ground Bus
Braided
Ground Strap
2094 Power Rail
(2094-PRSx shown)
Bonded Cabinet
Ground Bus
Bonded Cabinet
Ground Bus
2094 Power Rail
on 2094 Mounting Brackets
(2094-PRSx shown)
Line Interface Module
on 2094 Mounting Brackets
(2094-ALxxS shown)
Ground Grid or Power
Distribution Ground
Ground Grid or Power
Distribution Ground
Braided
Ground Strap
Braided
Ground Strap
Ground Stud
Ground Stud
Ground Stud
2094 Mounting Bracket
(2094-XNBRKT-1)
2094 Mounting Bracket
(2094-XNBRKT-1)
