Publication 2094-UM001A-EN-P — September 2006
160 Troubleshooting the Kinetix 6000 Drive System
Supplemental
Troubleshooting
Information
This section provides information for accessing and changing
parameters not accessible through RSLogix 5000 software.
Tools for Changing Parameters
Most parameters are accessible through RSLogix 5000 software.
Alternatives include the DPI compatible Human Interface Module
(HIM) and DriveExplorer software.
Changing Parameters Using DriveExplorer

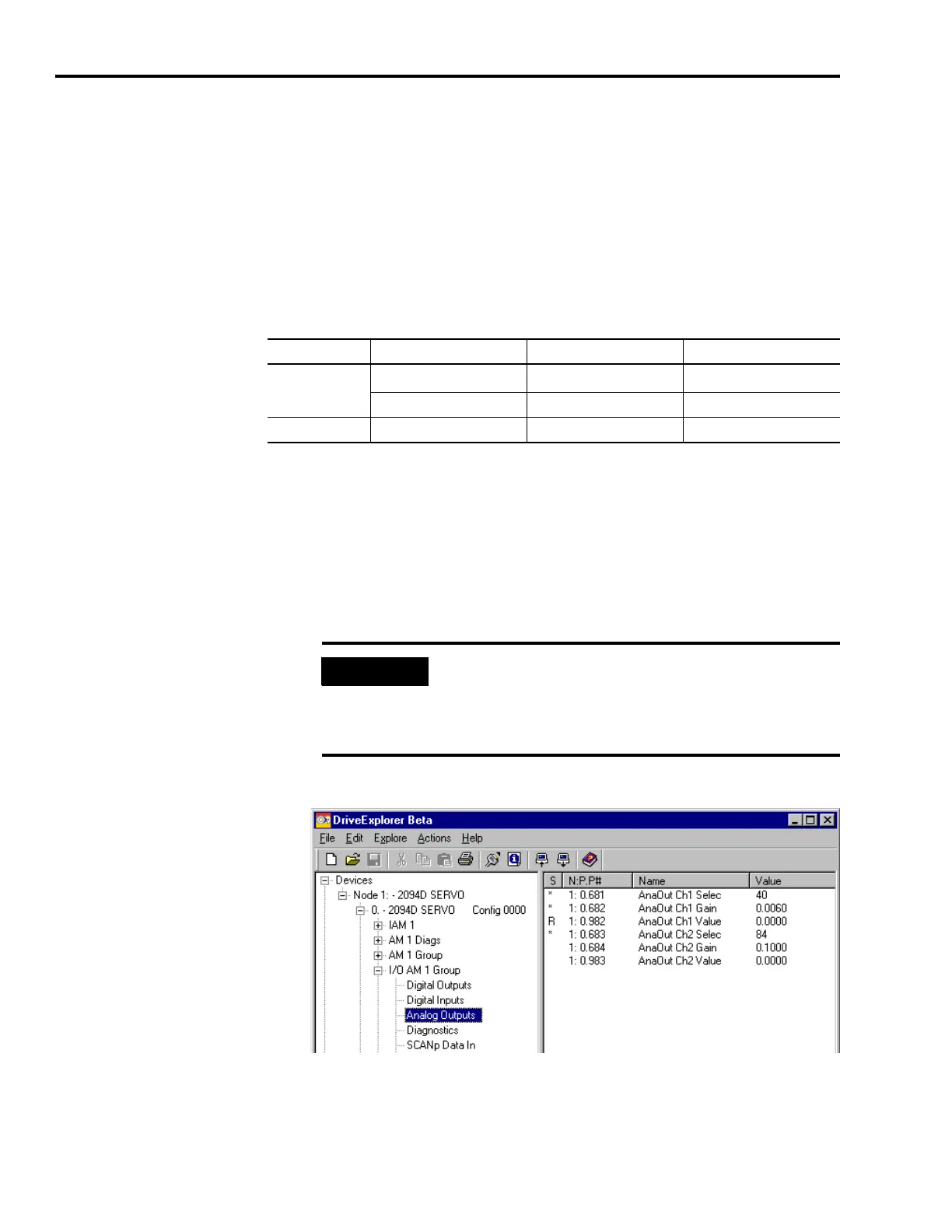

To navigate using DriveExplorer, refer to the example dialog below.
In this example, the I/O Interface group folder is open, the Analog
Outputs parameter is selected, and the parameter elements are
displayed in the box to the right.
DriveExplorer Example
Method Description Catalog Number Firmware Revision
DriveExplorer
DriveExplorer software
(1)
9306-4EXP02ENE 2.01 or later
Serial to SCANport adapter 1203-SSS (Series B) 3.004 or later
HIM Full numeric LCD HIM 20-HIM-A3
(2)
N/A
(1)
Refer to DriveExplorer Getting Results Manual, publication 9306-GR001, for instructions.
(2)
Compatible catalog numbers include all 20-HIM-Ax.
IMPORTANT
Parameters are read-only when the SERCOS ring is active. You
must break the SERCOS ring to change parameters.
To save changes, perform a non-volatile save (NVS) prior to
cycling power.
