Publication 2094-UM001A-EN-P — September 2006

Upgrading Firmware 223

Verifying the Firmware Upgrade

Follow these steps to verify your firmware upgrade was successful.

This procedure is optional.

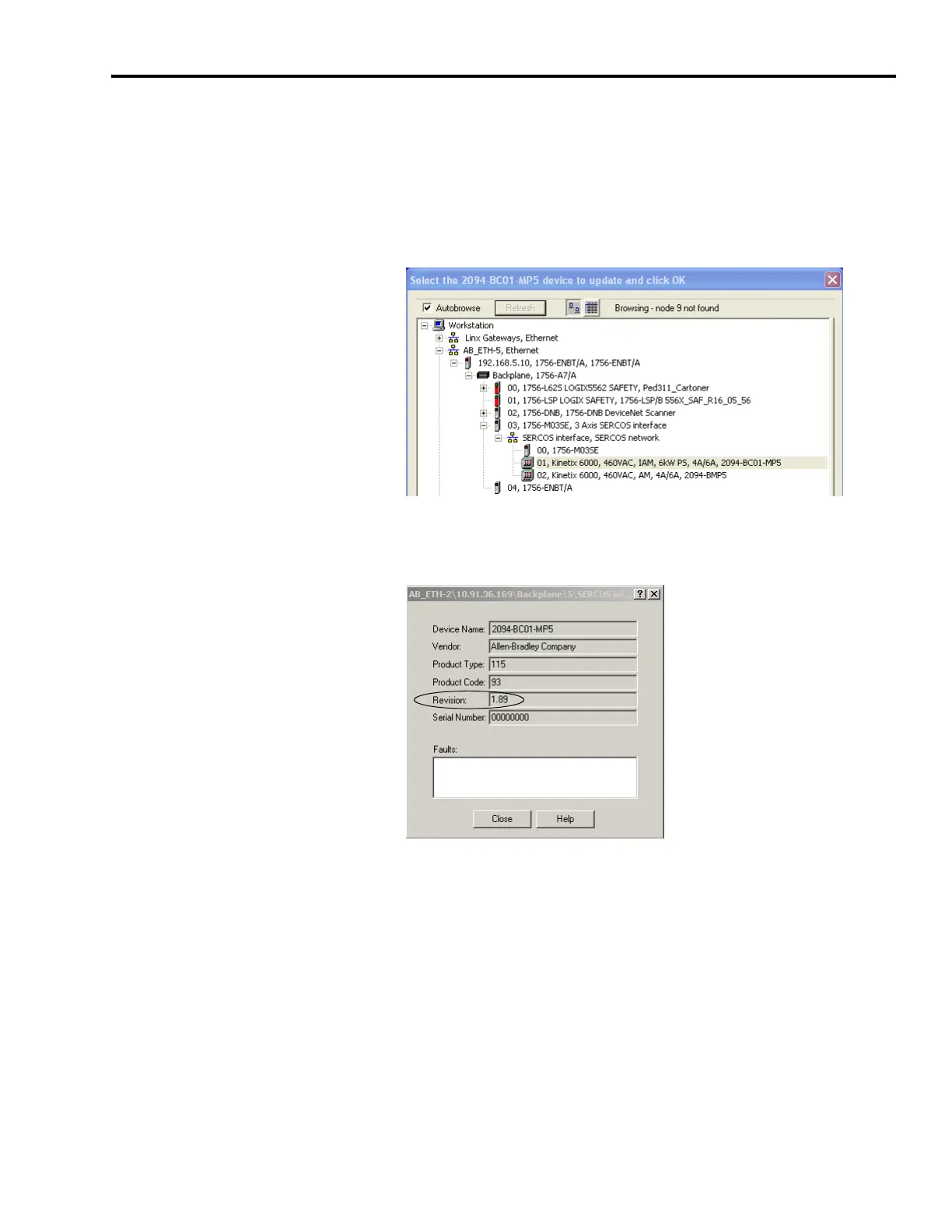

1. Return to the RSLinx Classic software and expand the dialog tree

to gain access to your drive module, as you did earlier.

2. Right-click the drive module and select Drive Properties.

The Drive Properties dialog opens.

3. Verify the new firmware revision level.

4. Click Close.
