Publication 2094-UM001A-EN-P — September 2006
234 DC Common Bus Applications
Common Bus Capacitance
Example
In the example below, the sum of the leader IAM power rail modules
capacitance (6530 µF) and the follower IAM power rail modules
capacitance (5280 µF) equals 11,810 µF total bus capacitance.
The sum of the follower IAM power rail modules equal 5280 µF
additional bus capacitance.

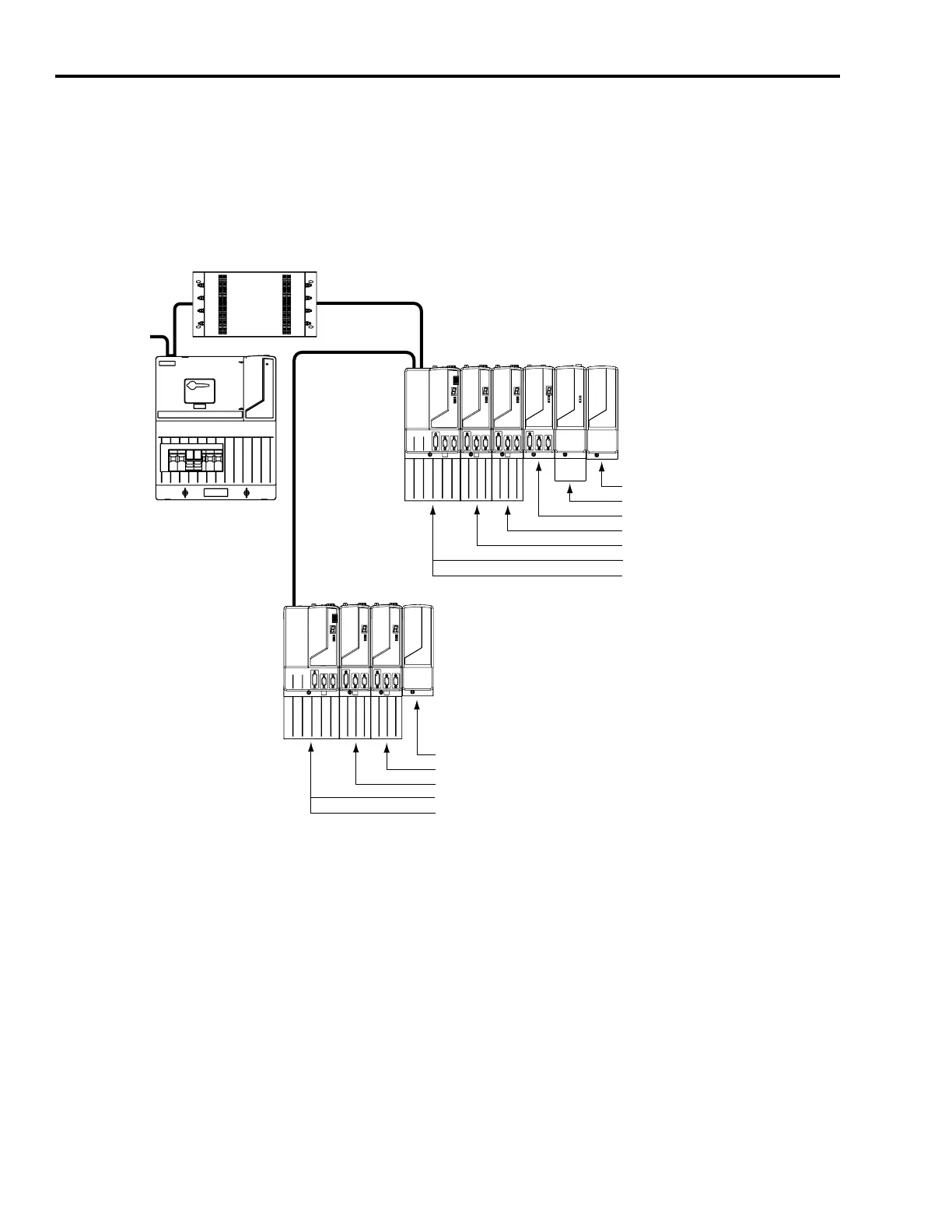

Calculating Common Bus Capacitance
PRF (2094-PRF) N/A
SM (2094-BSP2) 470 µF
AM (2094-AM02) 780 µF
AM (2094-AM03) 1320 µF
AM (2094-AM03) 1320 µF
IAM (2094-AC16-M03) Converter 1320 µF
IAM (2094-AC16-M03) Inverter 1320 µF
PRF (2094-PRF) N/A
AM (2094-AM03) 1320 µF
AM (2094-AM03) 1320 µF
IAM (2094-AC16-M03) Converter 1320 µF
IAM (2094-AC16-M03) Inverter 1320 µF
MAIN VAC
Line Interface
Module
(optional
component)
Three-phase
Input Power
Kinetix 6000 (230V)
Leader IAM
AC Line
Filter
Kinetix 6000 (230V)
Follower IAM
5280 µF Additional Bus Capacitance
11,810 µF Total Bus Capacitance
DC Common Bus
