Publication 2094-UM001A-EN-P — September 2006
86 Connecting the Kinetix 6000 Drive System

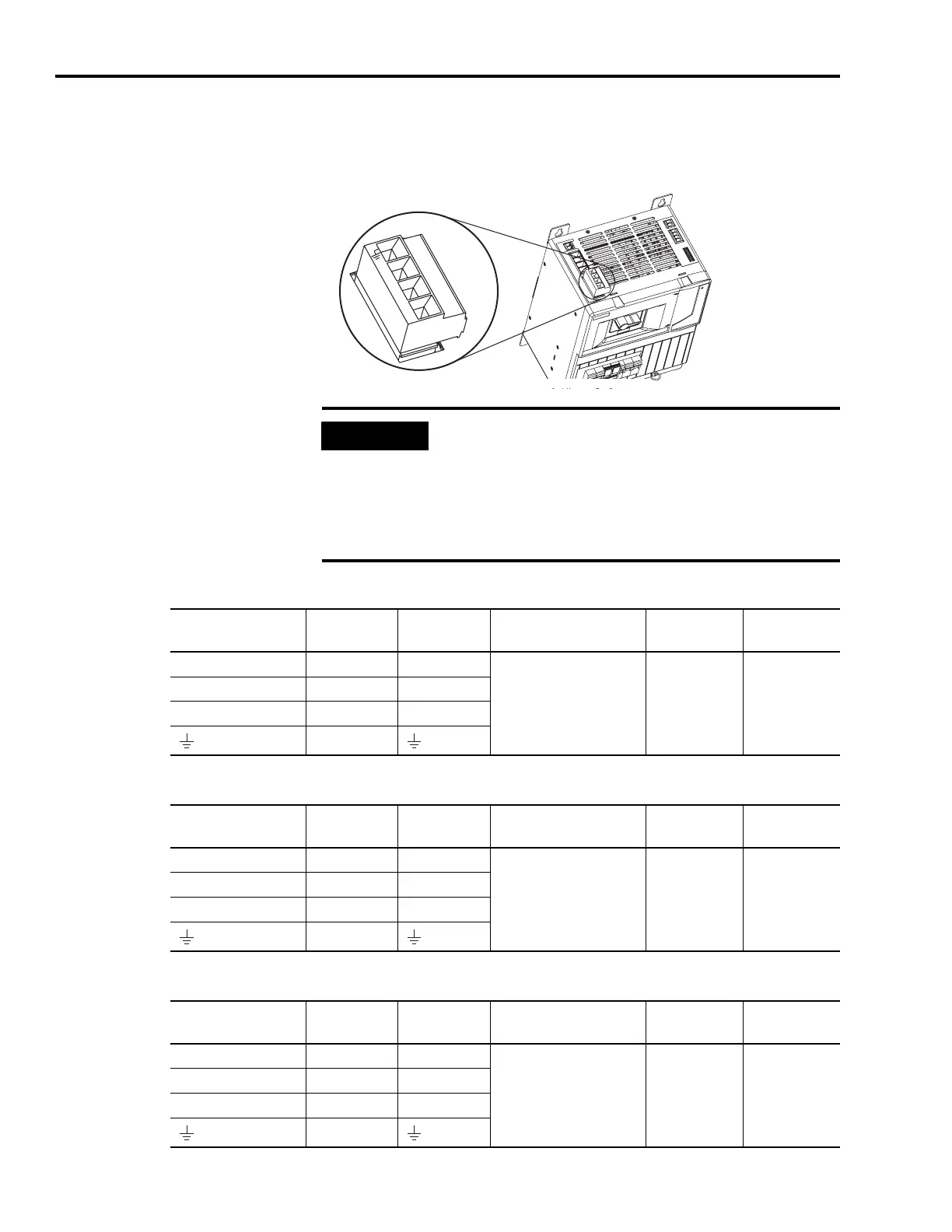

Wiring the VAC LOAD (OPL) Connector
Line Interface Module (OPL connector)
VAC LOAD (OPL) Connector (2094-ALxxS, -BLxxS, or -XL75S-Cx)
VAC LOAD (OPL) Connector (2094-AL09)
VAC LOAD (OPL) Connector (2094-BL02)
L3
L2
L1
1 2 3 4
Line Interface Module, Top View
(2094-XL75S-Cx is shown)
IMPORTANT
Line interface modules (2094-ALxxS, -BLxxS, and -XL75S-Cx)
are capable of connecting to two IAMs, providing each IAM has
its own line filter and the maximum current specification is not
exceeded.
Refer to Power Wiring Examples on page 194 for an example of
the LIM wired to two IAMs.
Three-phase Supply OPL Pin Signal
Recommended Wire Size
mm
2
(AWG)
Strip Length
mm (in.)
Torque Value
Nm (lb-in)
L1 4 L1’
2.5-25
(14-4)
16.0
(0.63)
2.7
(24)
L2 3 L2’
L3 2 L3’
1
Three-phase Supply OPL Pin Signal
Recommended Wire Size
mm
2
(AWG)
Strip Length
mm (in.)
Torque Value
Nm (lb-in)
L1 1 L1’
2.5-25
(14-4)
16.0
(0.63)
2.7
(24)
L2 2 L2’
L3 3 L3’
4
Three-phase Supply OPL Pin Signal
Recommended Wire Size
mm
2
(AWG)
Strip Length
mm (in.)
Torque Value
Nm (lb-in)
L1 4 L1’
4.0
(12)
10.0
(0.38)
1.5 - 1.8
(13.2 - 15.9)
L2 3 L2’
L3 2 L3’
1
