Publication 2094-UM001A-EN-P — September 2006

Upgrading Firmware 229

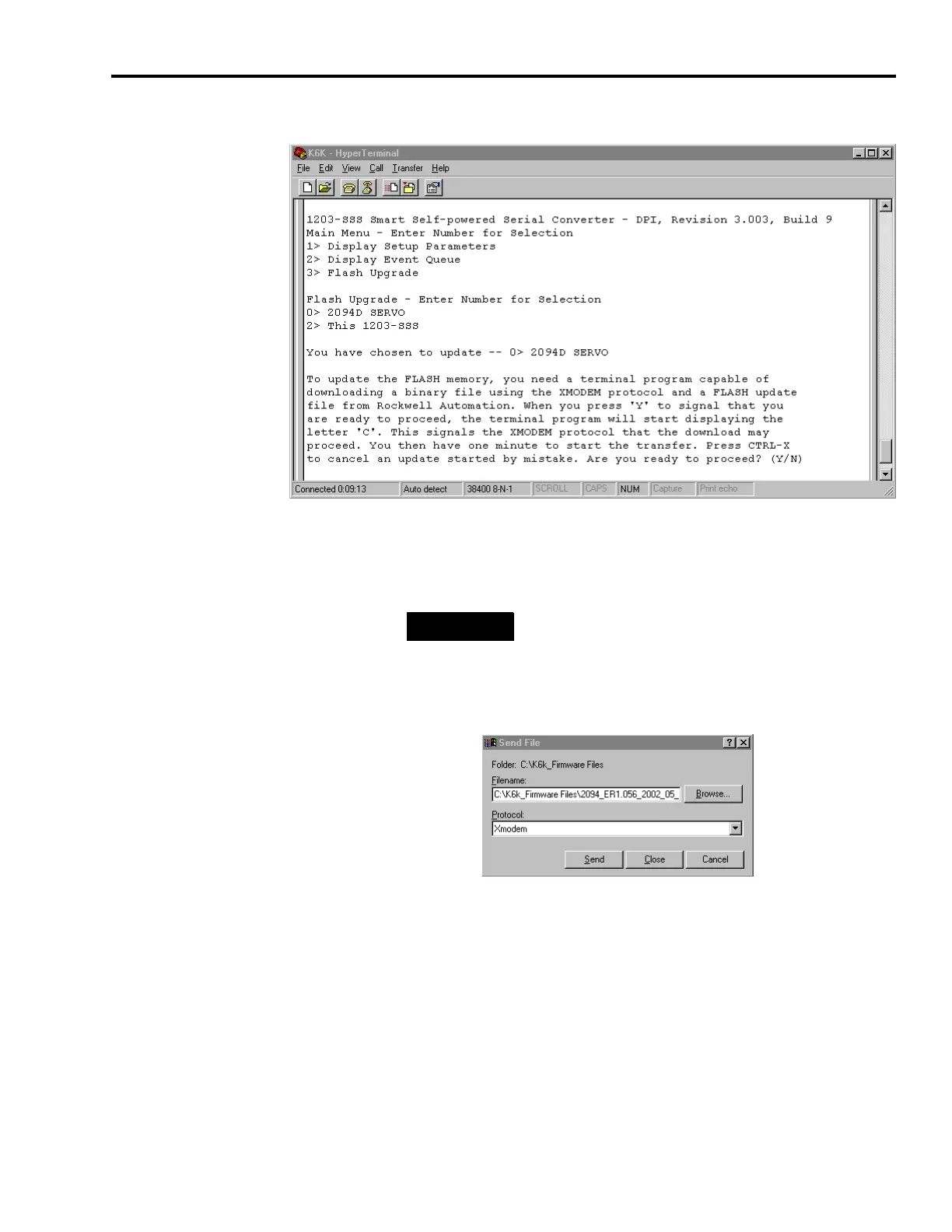

The following dialog opens.

4. Enter Y.

As indicated in the text, the program begins displaying the

character C.

5. From the Transfer menu select Send File.

The Send File dialog opens.

6. Browse for your firmware upgrade file.

7. Select Xmodem protocol.

8. Select Send.

TIP

Program times-out after 60 seconds. If program times-out

before you complete steps 5...8, return to Step 1.

Firmware upgrade file, as provided by Rockwell

Automation Technical Support at (440) 646-5800.
