Publication 2094-UM001A-EN-P — September 2006
Specifications and Dimensions 185
Product Dimensions
This section contains product dimensions for your Kinetix 6000 system
components.
Integrated Axis Module Dimensions
2094-AC05-MP5-S, AC05-M01-S, and -AC09-M02-S (230V)
2094-BC01-MP5-S, -BC01-M01-S, and -BC02-M02-S (460V)
Modules are shown mounted to the power rail and the dimensions
reflect that in the depth of the module.

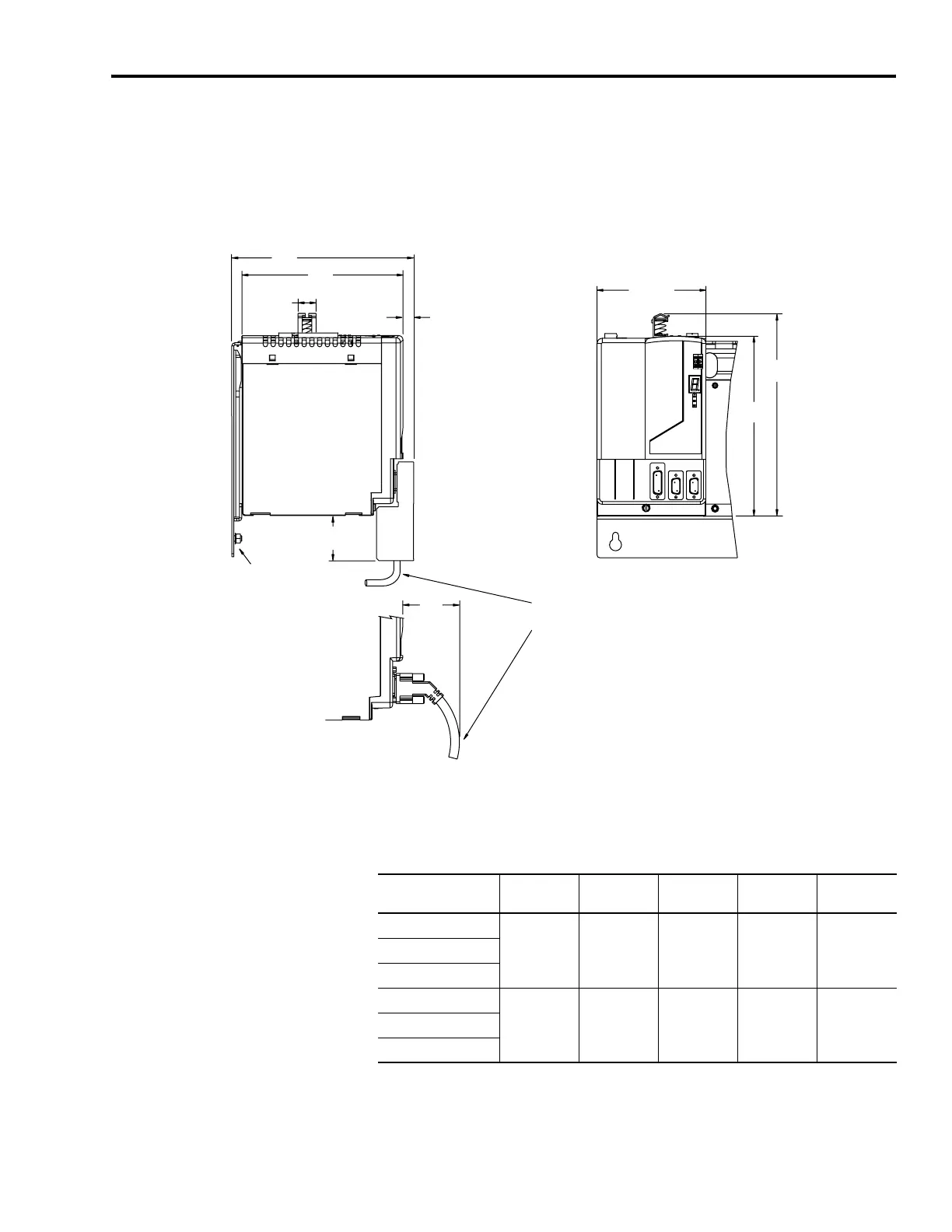

IAM Dimensions
62
(2.45)
A
B
D
E
F
8.9
(0.35)
125
(4.9)
20
(0.8)
Dimensions are in millimeters (inches)
Important: Additional clearance below the connector
is necessary to provide the recommended cable-bend
radius.
2090-XXNFxx-Sxx (flying lead)
Feedback Cable with
2090-K6CK-D15Mxx
Low-profile Connector Kit
2090-UXNFBxx-Sxx (premolded connector) Feedback Cable
Power Rail
This view illustrates the
additional clearance required for
premolded cable connectors.
2094-AC05-M01-S (230V)
(shown)
Kinetix 6000 IAM
A
mm (in.)
B
mm (in.)
D
mm (in.)
E
mm (in.)
F
mm (in.)
2094-AC05-MP5-S
198 (7.8) 176 (7.0) 51 (2.0) 206 (8.2) 231 (9.1)2094-AC05-M01-S
2094-AC09-M02-S
2094-BC01-MP5-S
272 (10.7) 249 (9.8) 0 (0) 256 (10.1) 281 (11.0)2094-BC01-M01-S
2094-BC02-M02-S
