218 Upgrading Firmware
Configuring Logix Communications
This procedure assumes that your communication method to the
Logix controller is using the Ethernet protocol. It is also assumed that
your Logix Ethernet module has already been configured.
For more information, refer to the ControlLogix System User Manual,
publication 1756-UM001.
Follow these steps to configure Logix communications.

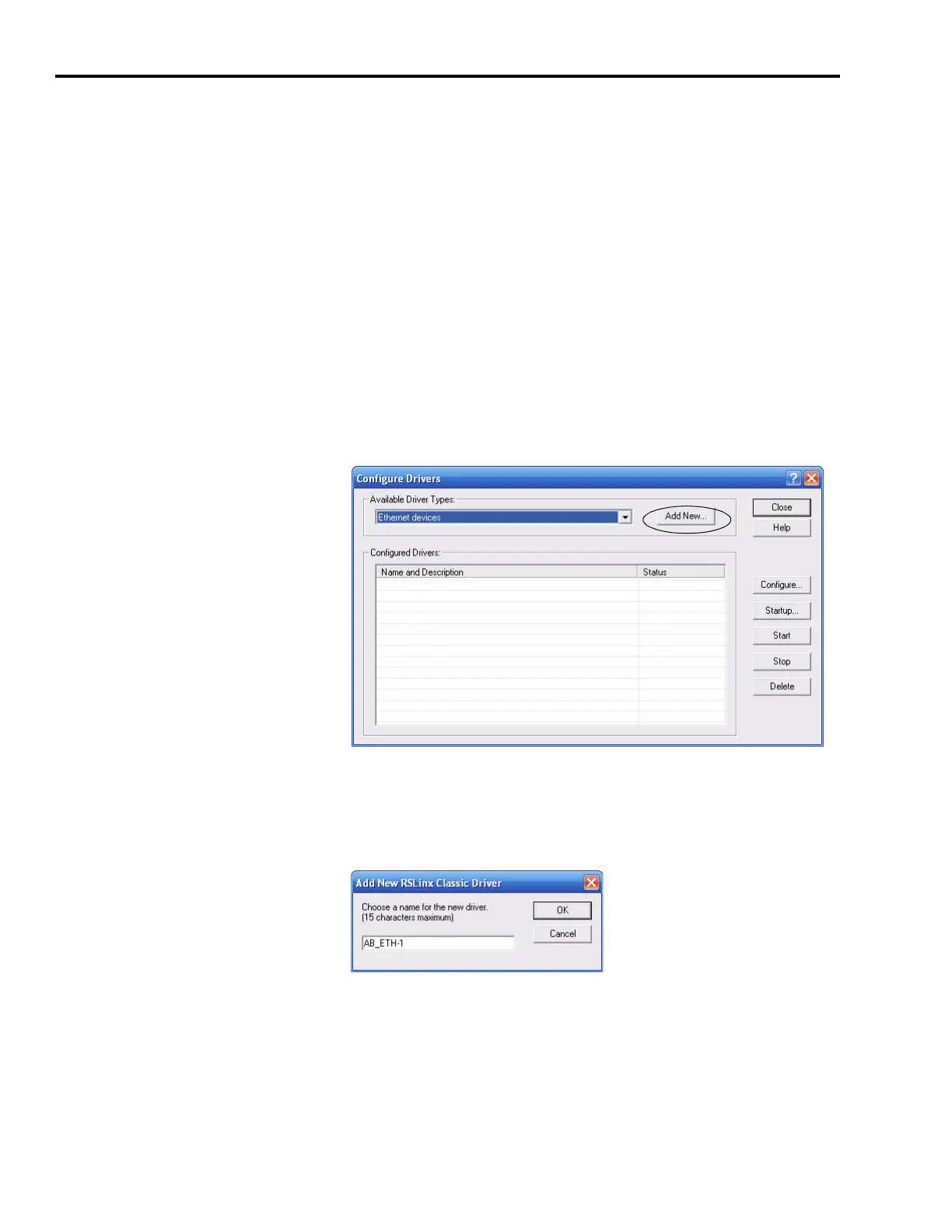

1. Open the RSLinx Classic software and select Configure Drivers
from the Communications menu.
The Configure Drivers dialog opens.
2. Select Ethernet devices from the Available Driver Types menu.
3. Click the Add New button.
The Add New RSLinx Classic Driver dialog opens.
4. Name the new driver.
5. Click OK.
