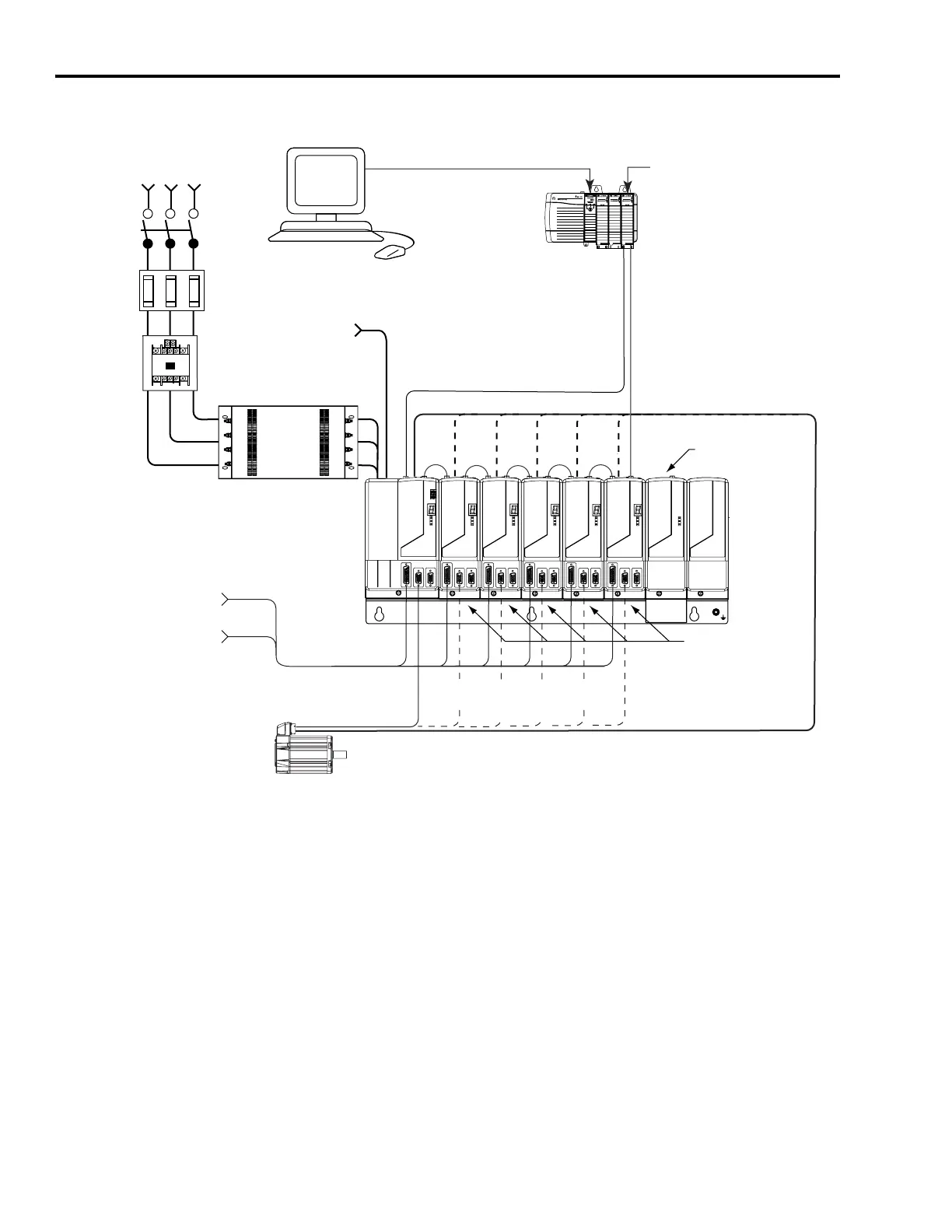

Typical Kinetix 6000 System Installation (without LIM)
Kinetix 6000 Multi-axis Servo Drive System
SERCOS Fiber-optic Ring
2090-SCxxx-x
Line
Disconnect
Device
Magnetic
Contactor
Input
Fusing
Three-phase
Input Power
Single-phase
Control Power
Integrated
Axis Module
2094-xCxx-Mxx-S
Motor Feedback Cable
2090-XXNFxx-Sxx
Power Rail
2094-PRSx
MP-Series, TL-Series, 1326AB (M2L/S2L),
F- and Y-Series Motors
(MPL-xxxx motors shown)
I/O Connections
To input sensors
and control string.
Axis Modules (5)
2094-xMxx-S
Shunt Module
(optional component)
2094-BSP2
Motor Power Cable
2090-XXNPxx-xxSxx
Slot Filler
Module
(required to
fill any unused
slots)
2094-PRF
AC Line Filter
2090-XXLF-xxxx
Low Profile Connector Kits for
I/O, Motor Feedback, and Aux Feedback
2090-K6CK-Dxxx
Logix SERCOS interface Module
Logix Platform
(ControlLogix is shown)
RSLogix 5000
Software
Logix Controller Programming Network
To Next Page
