Publication 2094-UM001A-EN-P — September 2006
176 Specifications and Dimensions
In the example below, the sum of the IAM, AMs, and SM equal 500 W
of continuous shunt power.

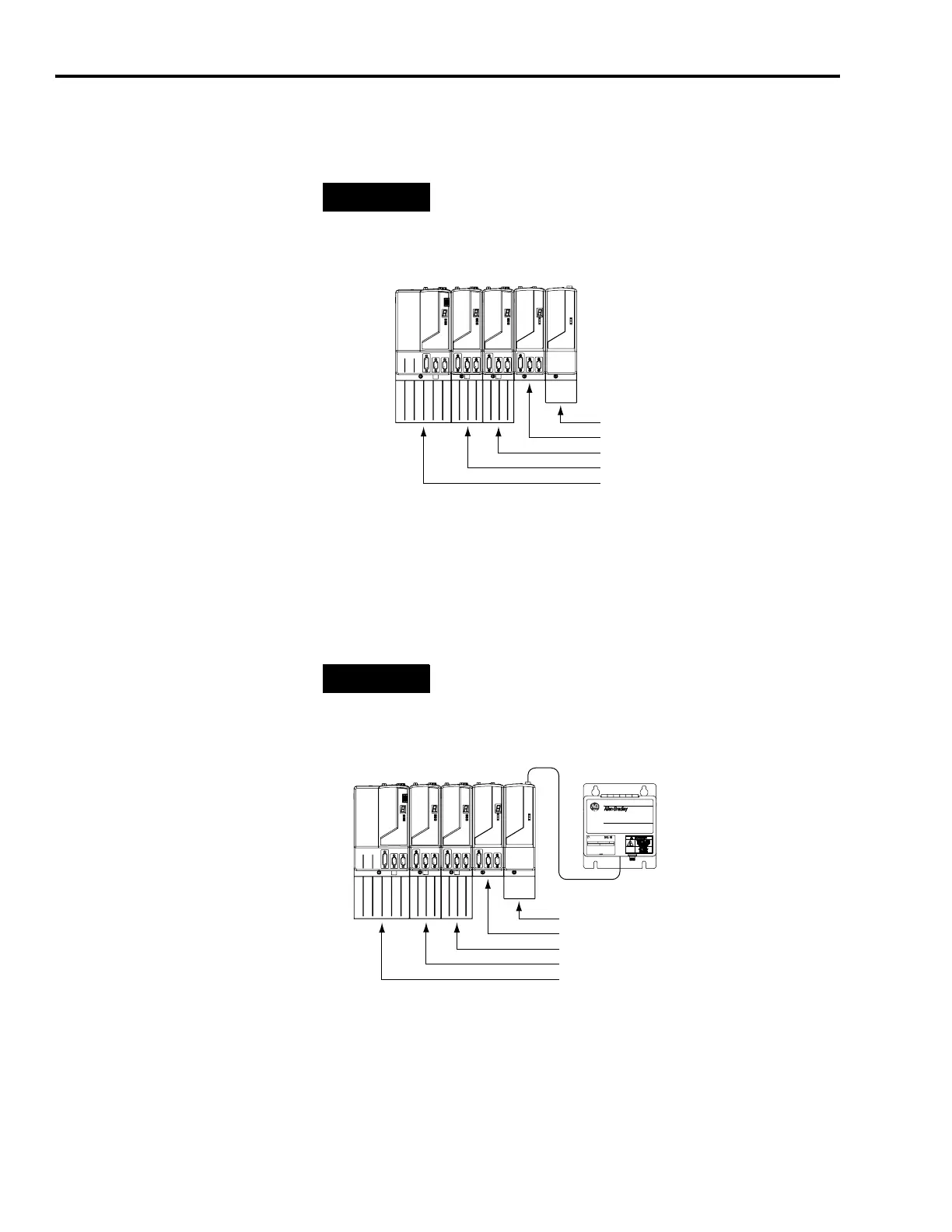

Shunt Power Example (without external shunt)
In the example below, the system is identical to that shown in the
example above, except the Kinetix 6000 (2094-BSP2) shunt module is
wired to a Bulletin 1394 external shunt module. The IAM and AM
internal shunt power is disabled and the continuous shunt power is
equal to that of the external shunt module alone.
Shunt Power Example (with external shunt)
TIP
Shunt power adds up the same way for 460V (IAM, AM, and
SM) systems too.
Kinetix 6000 (230V) Shunt Power Example
500 W Continuous Shunt Power
SM (2094-BSP2) 200 W Shunt Module
AM (2094-AM02) No Internal Shunt
AM (2094-AM03) 50 W Internal Shunt
AM (2094-AM03) 50 W Internal Shunt
IAM (2094-AC16-M03) 200 W Internal Shunt
TIP
The external shunt disables the internal shunt capacity of 460V
(IAM, AM, and SM) systems too.
BULLETIN 1394 300W SHUNT MODULE
ALLEN-BRADLEY
FOR USE WITH 1394-SJT22-X SYSTEM MODULE
CAT. PART SER.
INPUT DC INPUT AC
FOR FUSE REPLACEMENT USE:
BUSSMAN CAT. NO.
R
Shunt Module
Kinetix 6000 (230V) Shunt Power Example
900 W Continuous Shunt Power
Bulletin 1394 External Shunt Module
(1394-SR9AF) 900 W External Shunt
SM (2094-BSP2) 200 W Shunt Module
AM (2094-AM02) No Internal Shunt
AM (2094-AM03) 50 W Internal Shunt
AM (2094-AM03) 50 W Internal Shunt
IAM (2094-AC16-M03) 100 W Internal Shunt
