Part Replacement Procedures Chapter 3

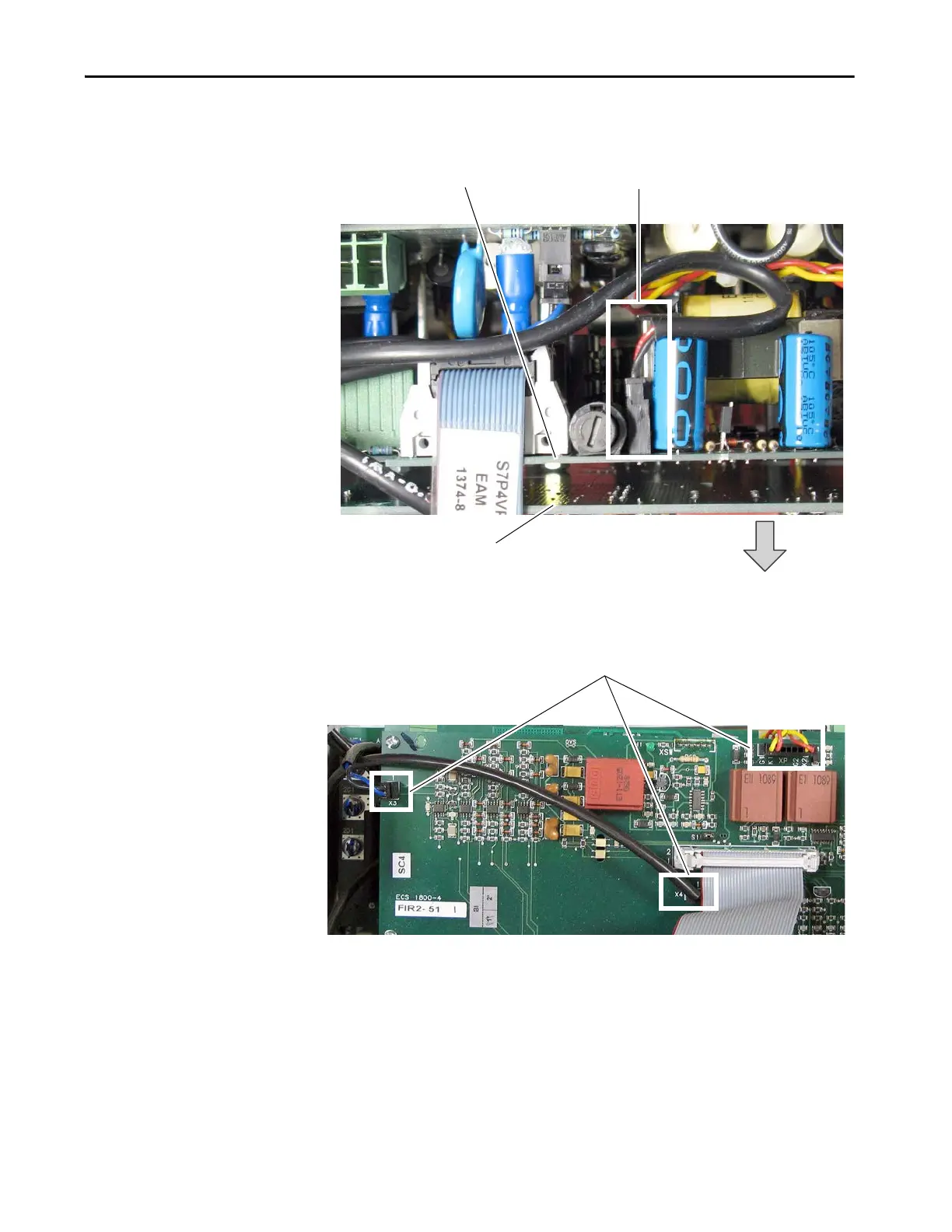

11. Remove the cable from connector XV on the switching power supply
board.
12. Remove the cables from connectors X3, X4, and XP on the pulse
transformer board.
11
Front of drive
Switching power supply board
Pulse transformer board
12
