Part Replacement Procedures Chapter 3

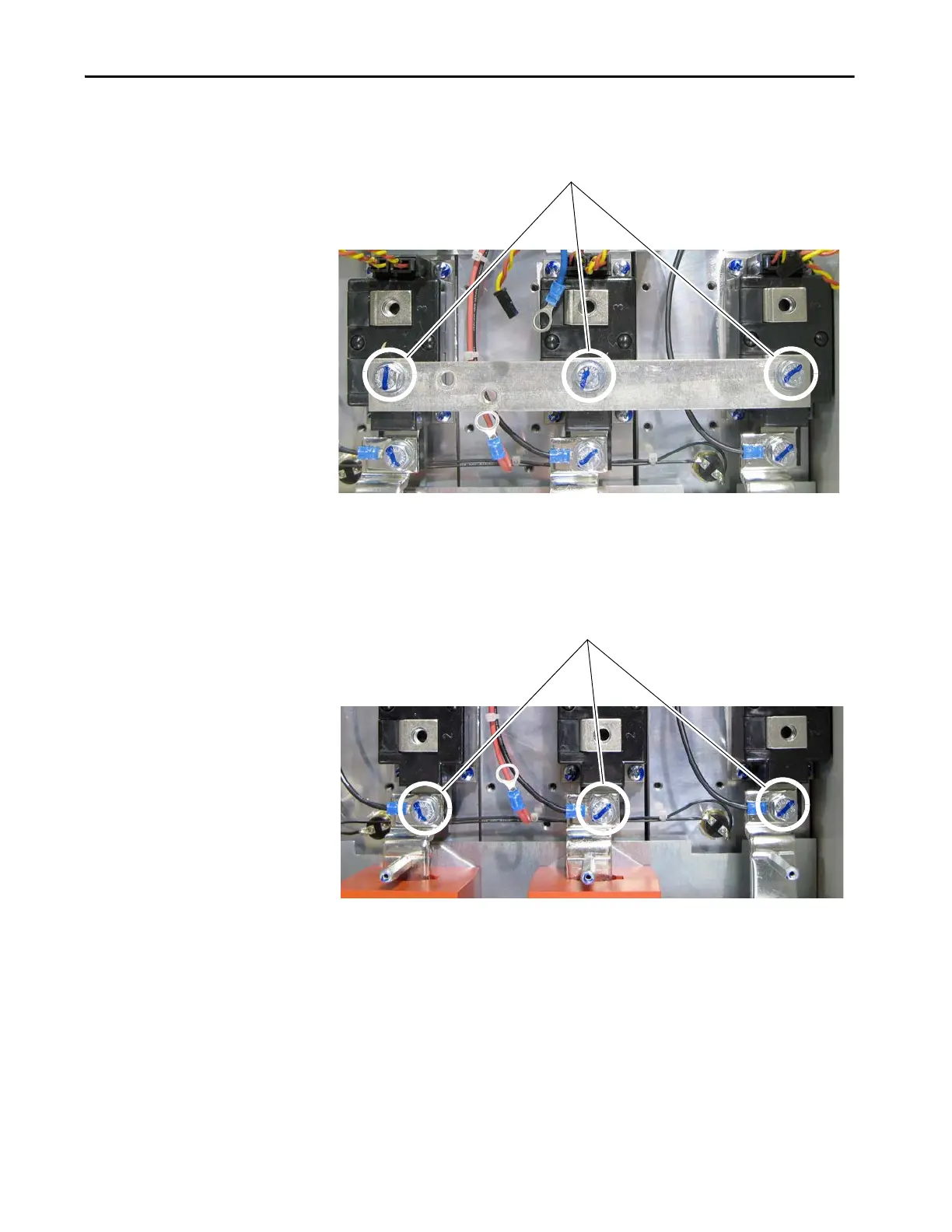

18. Remove the bolts and washers that secure the lower horizontal bus bar
to the SCR modules and remove the bus bar.
19. Remove the bolts, washers and wires that secure the U, V and W phase
power terminals to the SCR modules.
Non-Regenerative Drive
18
Non-Regenerative Drive
19
