Rockwell Automation Allen-Bradley PowerFlex 20P Hardware Service Manual

86 Rockwell Automation Publication 20P-TG002B-EN-P - February 2018
Chapter 3 Part Replacement Procedures

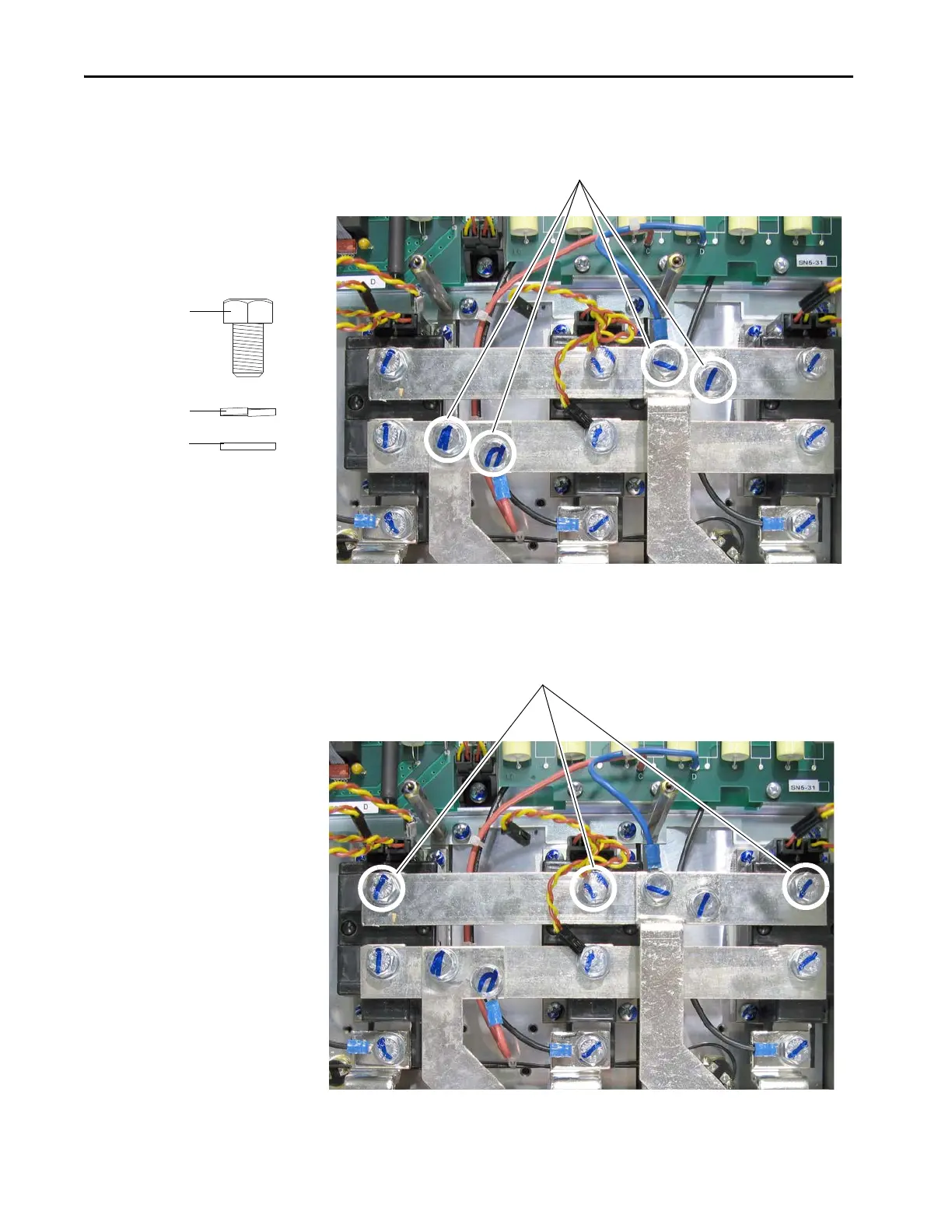

16. Remove the bolts and washers that secure the C and D terminal bus bars
to the horizontal bus bars.
17. Remove the bolts and washers that secure the upper horizontal bus bar
to the SCR modules and remove the bus bars.
Bolt
Lock washer
Flat washer
Note proper order of washers for
installation.
Non-Regenerative Drive
16
Non-Regenerative Drive
17
