7-6 Using DeviceLogix™
2. Bulletin 280G and 281G ArmorStart Fault Bits

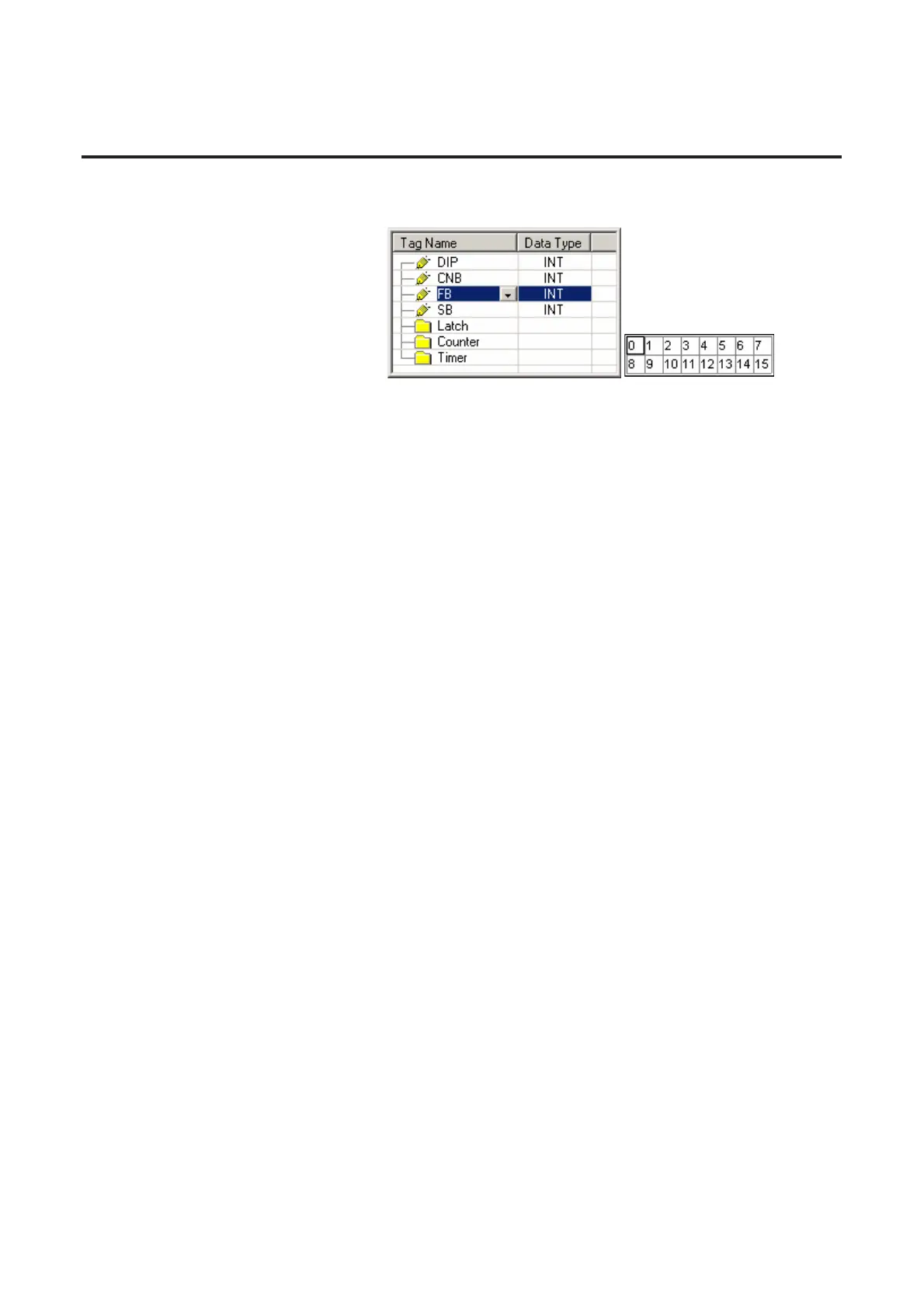

The screen capture below how to choose fault bits in the ladder editor.
The following list contains the fault bit definitions for Bulletin 280G
and 281G ArmorStart units:
ArmorStart Revision 2.xxx (280G and 281G)
0 = Short Circuit
1 = Overload
2 = Phase Loss
3 = Control Power
4 = IO Fault
5 = Over Temp
6 = Phase Imbalance
7 = DNet Power Loss
8 = EEprom
9 = HW Flt
10 = PL Warning
11 = CP Warning
12 = IO Warning
13 = Phase Imbal Warn
14 = DN Warning
15 = HW Warning
