Using DeviceLogix™ 7-7
3. Bulletin 280G and 281G ArmorStart Produced Network Bits

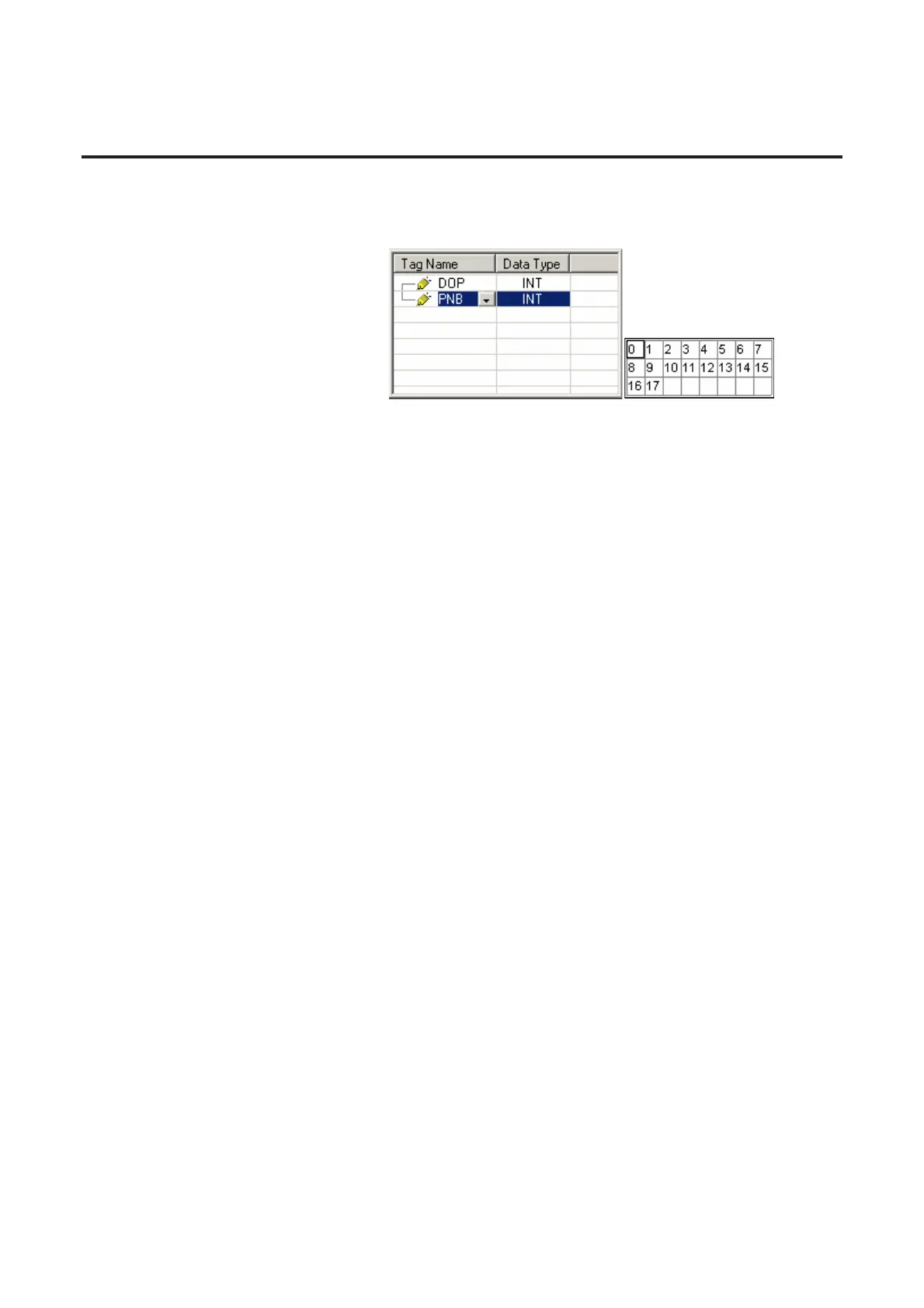

The screen capture below shows how to choose Produced Network
Bits in the ladder editor.
The following table contains the produced network bit definitions for
Bulletin 280G and 281G ArmorStart units:
ArmorStart Revision 2.xxx (280G and 281G)
0 = Net Output 0
1 = Net Output 1
2 = Net Output 2
3 = Net Output 3
4 = Net Output 4
5 = Net Output 5
6 = Net Output 6
7 = Net Output 7
8 = Net Output 8
9 = Net Output 9
10 = Net Output 10
11 = Net Output 11
12 = Net Output 12
13 = Net Output 13
14 = Net Output 14
15 = Fault Reset
16 = Motion Disable
17 = Keypad Disable
