Rockwell Automation ArmorStart Bulletin 280G User Manual

A-4 Specifications
Bulletin 280G/281G, Continued

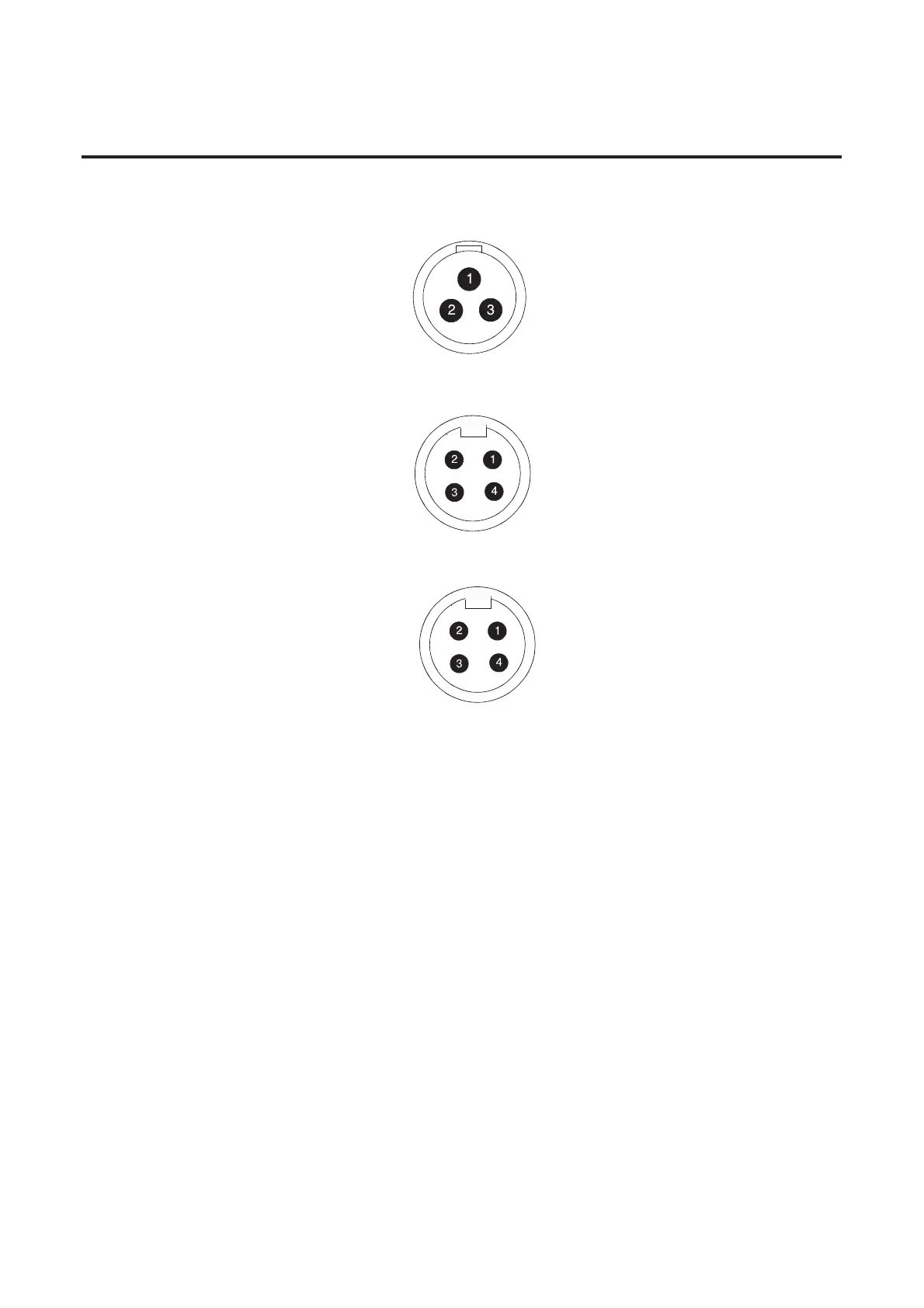

Figure A.6 External Connections for 120V AC Control Power
Figure A.7 Safety Monitor Input (SM1/SM2)
Figure A.8 External Connections for Safety Input Power (A1/A2)
Pin 1: SM2- White
Pin 2: SM1 - Brown
Pin 3: N/C- No connection
Pin 4: N/C- No connection
Pin 1: M - White
Pin 2: A1 - Brown
Pin 3: P - Black
Pin 4: A2 - Blue
Pin 1: GND - Green/Yellow
Pin 2: L1 - Black
Pin 3: L2 - White
