Specifications A-9
Bulletin 284G, Continued

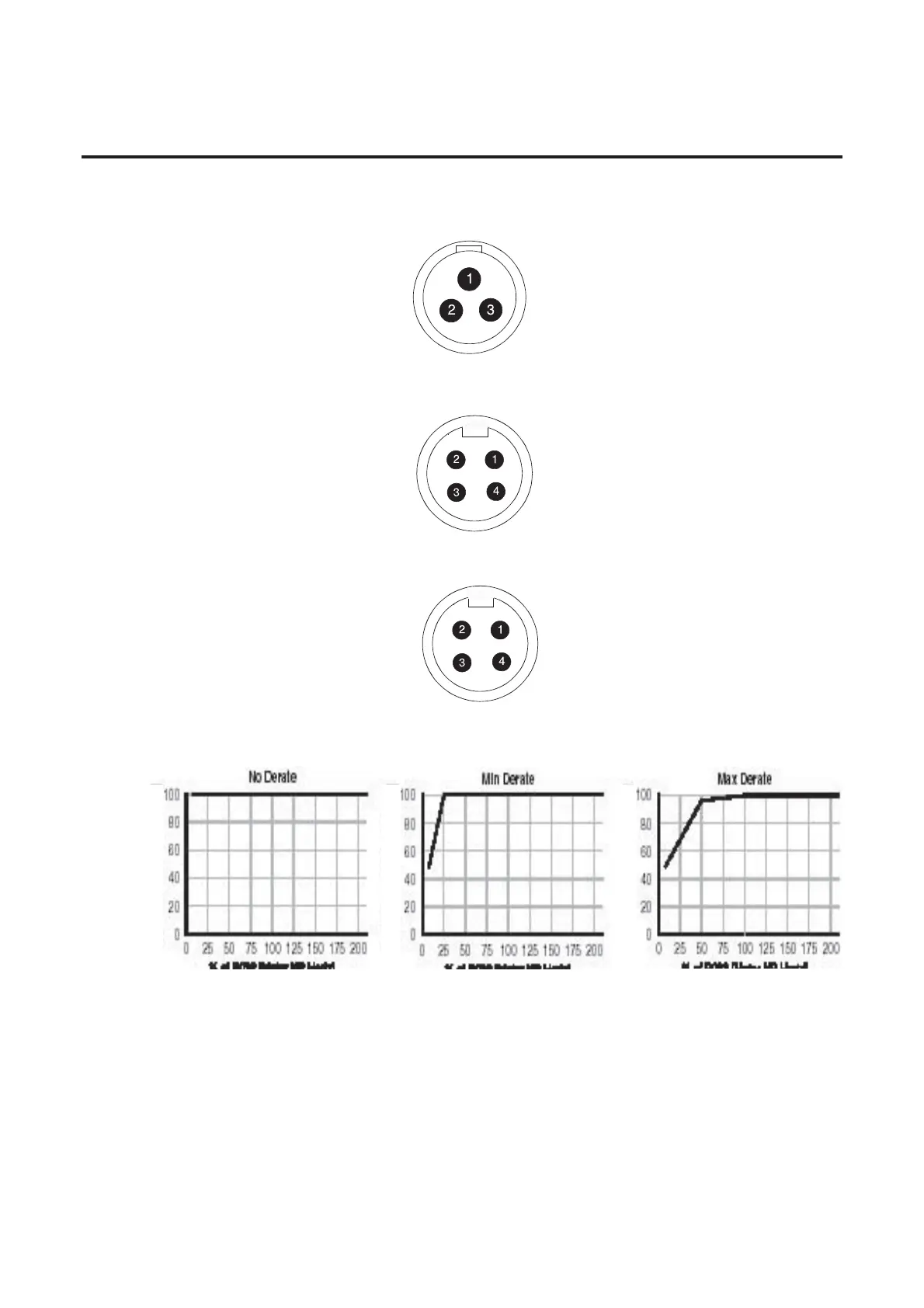

Figure A.15 External Connections for 120V AC Control Power
Figure A.16 Safety Monitor Input (SM1/SM2)
Figure A.17 External Connections for Safety Input Power (A1/A2)
Overload Curves
Pin 1: SM2- White
Pin 2: SM1 - Brown
Pin 3: N/C- No connection
Pin 4: N/C- No connection
Pin 1: M - White
Pin 2: A1 - Brown
Pin 3: P - Black
Pin 4: A2 - Blue
Pin 1: GND - Green/Yellow
Pin 2: L1 - Black
Pin 3: L2 - White
% of P132 (Motor NP Hertz) % of P132 (Motor NP Hertz)
% of P132 (Motor NP Hertz)
% of P133 (Motor OL Current)
% of P133 (Motor OL Current)
% of P133 (Motor OL Current)
