Rockwell Automation ArmorStart Bulletin 280G User Manual

Appendix E
Accessories

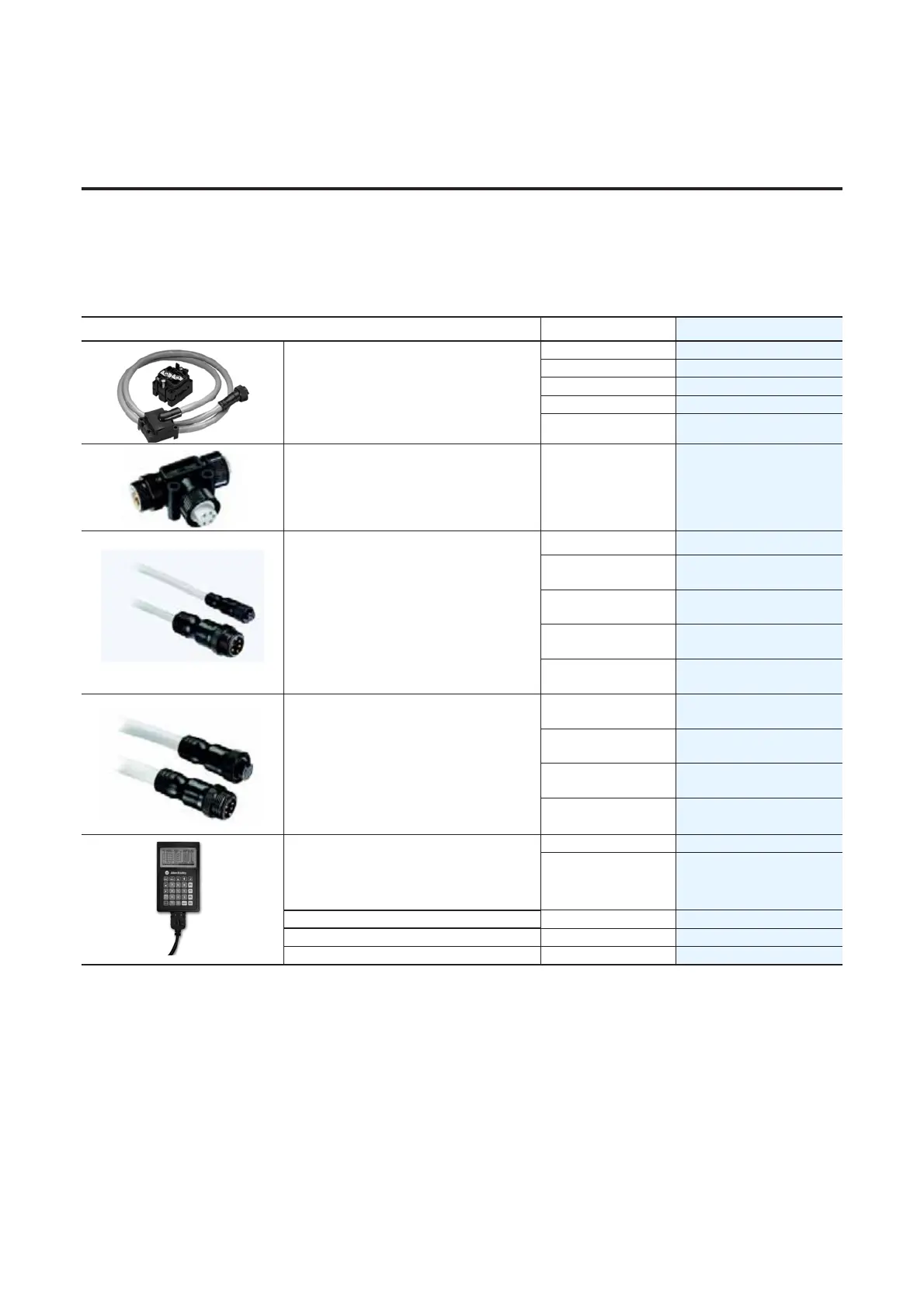

Table E.1 DeviceNet™ Media ➊
➊ See the On-Machine Connectivity catalog for complete cable selection information.
➋ Replace symbol with desired length in meters (Example: 1485G-P1N5-M5 for a 1 m cable). Standard cable lengths: 1 m, 2 m, 3 m, 4 m, 5 m, and 6 m.
➌ Replace symbol with desired length in meters (Example: 1485C-P1N5-M5 for a 1 m cable). Standard cable lengths: 1 m, 2 m, 3 m, 4 m, 5 m, 6 m, 8 m, 10 m, 12 m,
18 m, 24 m, and 30 m.
Description Length m (ft) Cat. No.
KwikLink pigtail drops are Insulation
Displacement Connector (IDC) with integral Class
1 round cables for interfacing devices or power
supplies to flat cable
Sealed
1 m (3.3)
1485P-P1E4-B1-N5
2 m (6.5)
1485P-P1E4-B2-N5
3 m (9.8)
1485P-P1E4-B3-N5
6 m (19.8)
1485P-P1E4-B6-N5
DeviceNet Mini- T-Port Tap
Right Keyway
Left Keyway
1485P-P1N5-MN5NF
1485P-P1N5-MN5KM
Gray PVC Thin Cable
Connector
Cat. No.
Mini Straight Female
Mini Straight Male
1485G-P
➋
N5-M5
Mini Straight Female
Mini Right Angle Male
1485G-P
➋
W5-N5
Mini Right Angle Female
Mini Straight Male
1485G-P
➋
M5-Z5
Mini Right Angle Female
Mini Straight Male
1485G-P
➋
W5-Z5
Thick Cable
Mini Straight Female
Mini Straight Male
1485C-P
➌
N5-M5
Mini Straight Female
Mini Right Angle Male
1485C-P
➌
W5-N5
Mini Right Angle Female
Mini Straight Male
1485C-P
➌
M5-Z5
Mini Right Angle Female
Mini Straight Male
1485C-P
➌
W5-Z5
DeviceNet Configuration Terminal — Used to
interface with objects on a DeviceNet network.
Includes 1 m communications cable.
Length m (ft)
Cat. No.
1 m (3.3)
193-DNCT
Communication cable, color-coded bare leads 1 m (3.3)
193-CB1
Communication cable, microconnector (male) 1 m (3.3)
193-CM1
Panel Mount Adapter/Door Mount Bezel Kit —
193-DNCT-BZ1
