CHAPTER 1 Quick Start
Connection to Audio Equipment
Playing the Pads
Turning the Power On

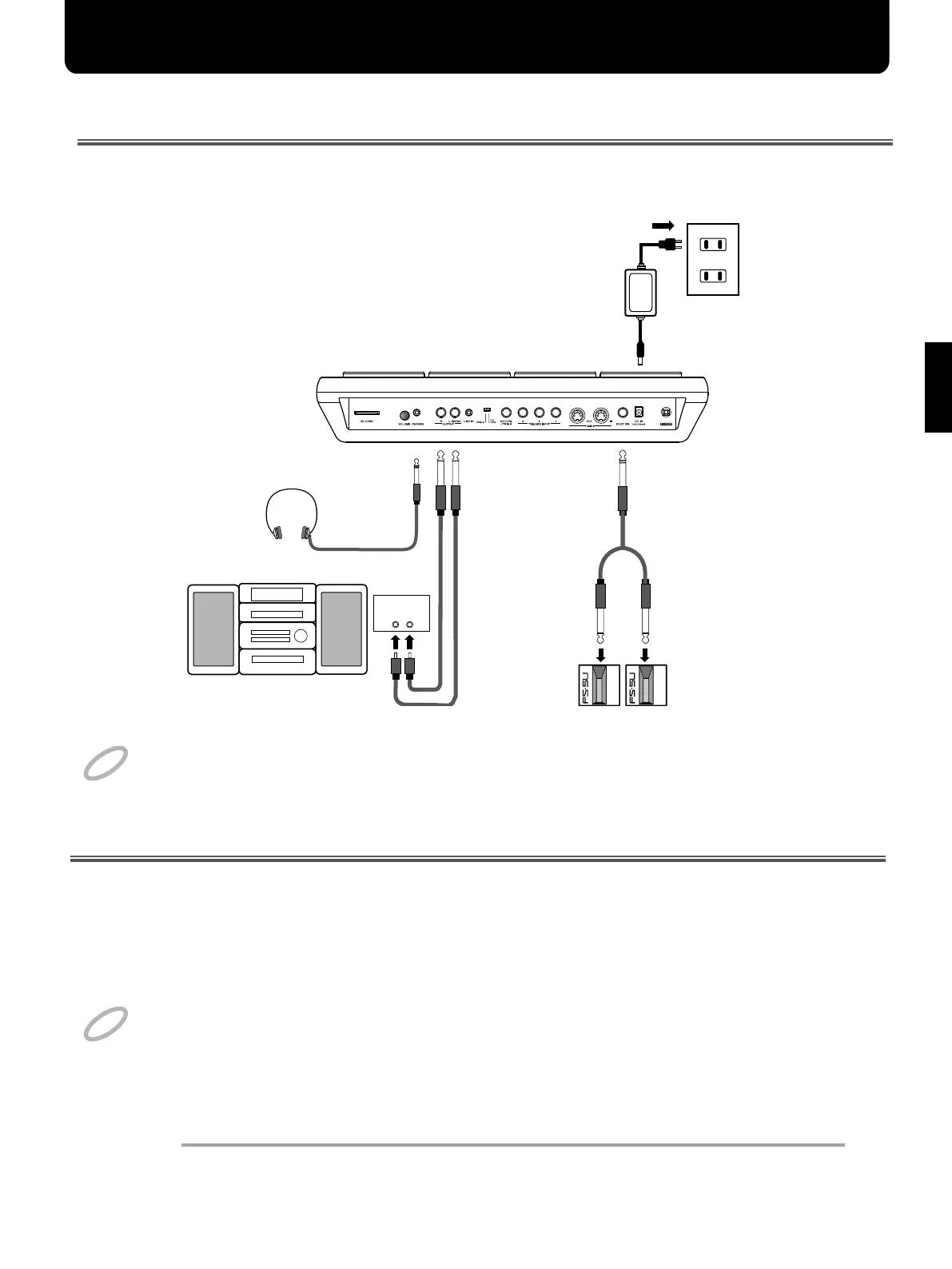

With the SPD-20X, you can produce realistic sounds simply by connecting an audio system. You can also
use headphones.
The POWER switch is on the rear panel.
1
Check that all connections with other devices are correct, and that
everything is off.
Once the connections have been completed, turn on power to your various devices in the order
specied. By turning on devices in the wrong order, you risk causing malfunction and/or damage
to speakers and other devices.
Always make sure to have the volume level turned down before switching on power. Even with
the volume all the way down, you may still hear some sound when the power is switched on, but
this is normal, and does not indicate a malfunction.
NOTE
To prevent malfunction and/or damage to speakers or other devices, always turn down the volume,
and turn o the power on all devices before making any connections.
NOTE
When connections are complete, you can play the SPD-20X.
L INE I N
L R
AC adaptor
Audio Equipment
(Stereo set)
Footswitches
Stereo Headphones
