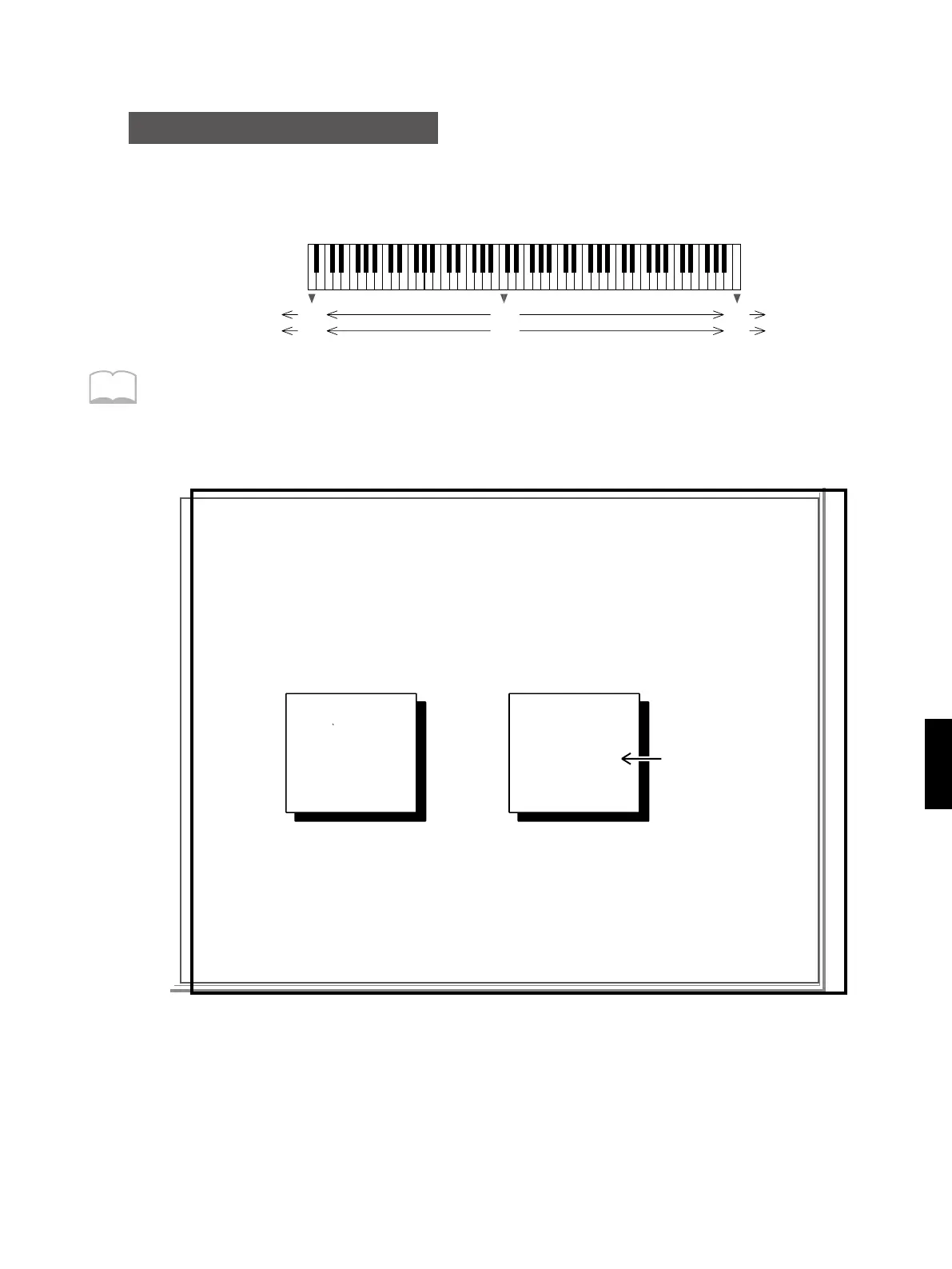

Set this parameter to the sound (note) of the MIDI sound module you want to play from that pad
(0–127/OFF).
Note Number (NOTE #)
8C4C0A
8010612
C-1
0
G9
127
Correspondence between Note Numbers and Note Names
Note Name:
Note Number:
When setting the same Note Numbers to a number of pads within the same Patch, the same Note
Numbers and Note Messages are transmitted from each pad. If a note assigned to 2 or more pads is
received, only one pad will be expressed.
MEMO
About Note Numbers for HI-Hats Controlled with Pedals
Normally one Instrument will be assigned one Note Number. However, a hi-hat sound (PEDAL_
HH 1 – PEDAL_HH 17) controlled by a hi-hat control pedal will automatically be given three
note numbers; the displayed Note Number and the two note numbers immediately below it.
Only the highest Note Number will be displayed.
Sound of an Instrument Hi-Hat sound controlled by a pedal
For example, suppose that PEDAL_HH 1 has Note Number 46 assigned to it. With the pedal
depressed, if you strike the pad to which PEDAL_HH 1 is assigned, Note Number 42 will be sent.
If you strike the pad without depressing the pedal, Note Number 46 will be sent. If you depress
the pedal without striking the pad, Note Number 44 will be sent.
Note #
Pad
Note #
Pad
44
46
42
Only the highest
note number will
be shown
38
SNARE 1 PEDAL_HH 1
