Roland RD-2000 - 4 Tap Pan Delay; Multi Tap Delay

51
Modulation FX Parameters
Parameter Value Explanation
Center
Feedback #
-98–+98 [%]
Adjusts the amount of the
delay sound that’s fed back
into the eect. Negative “-”
settings invert the phase.
HF Damp
200–8000 [Hz],
BYPASS
Adjusts the frequency above
which sound fed back to
the eect is ltered out
(BYPASS: no cut).
Left/Right/
Center Level
0–127 Volume of each delay
Low Gain -15–+15 [dB]
Gain of the low frequency
range
High Gain -15–+15 [dB]
Gain of the high frequency
range
Balance #
D100:0W–
D0:100W
Volume balance between
the direct sound (D) and the
delay sound (W)
Level 0–127 Output Level

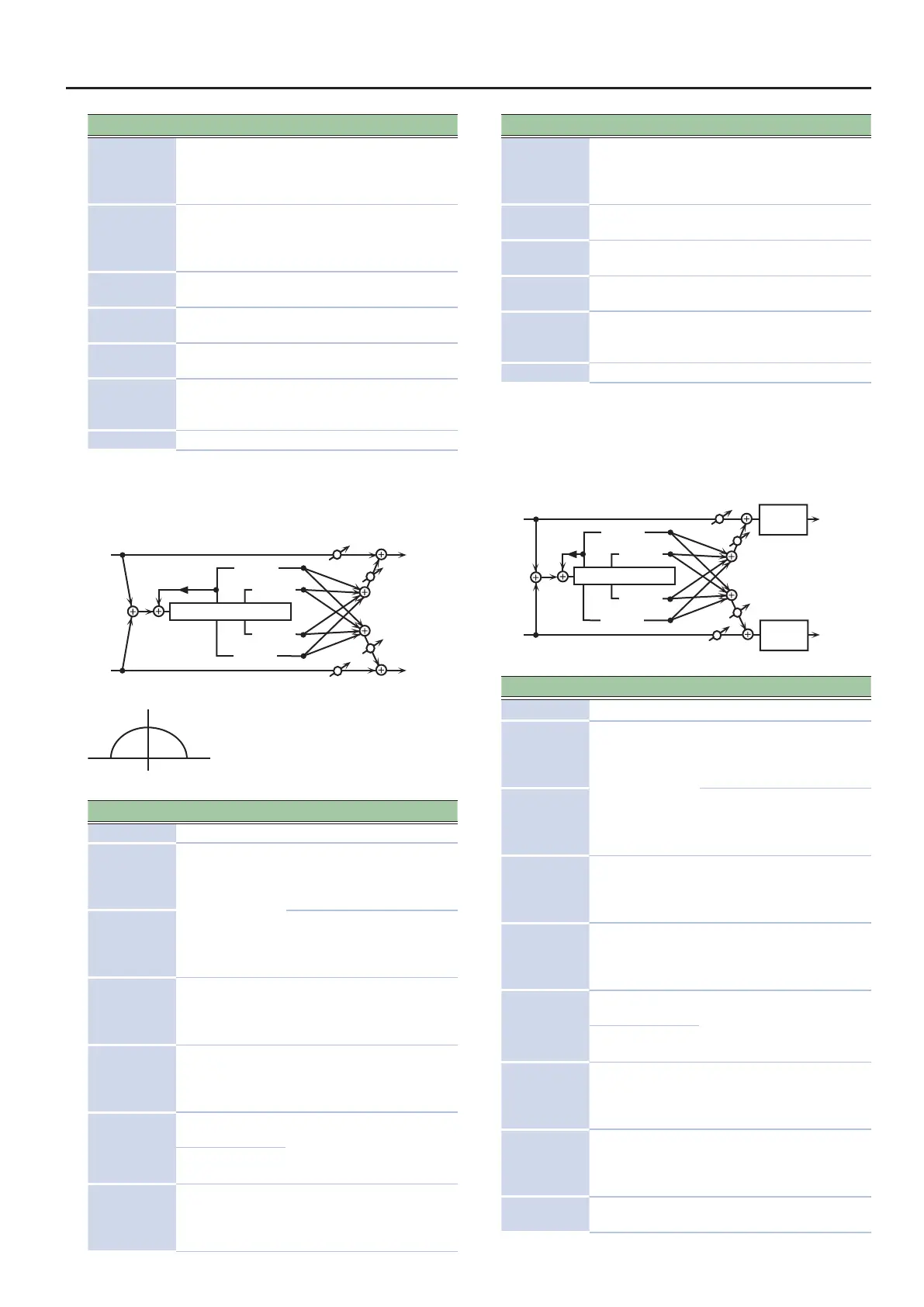

41: 4TAP PAN DELAY
This eect has four delays.
L in
R in
L out
R out
Quadruple Tap Delay
Balance W
Balance D
Balance W
Balance D
Delay 1
Delay 2
Delay 3
Delay 4
Feedback
1
2 3
4
L
R
Parameter Value Explanation
Switch OFF, ON Turns the eect on/o.
Depth Knob
DLY 1 FBACK,
BALANCE,
DLY 1 TIME
Species the parameter
that is controlled by the
MODULATION FX [DEPTH]
knob.
Rate Knob
Species the parameter
that is controlled by the
MODULATION FX [RATE]
knob.
Feedback
Knob
OFF,
DLY 1 FBACK,
BALANCE,
DLY 1 TIME
Species the parameter
that is controlled by the
MODULATION FX [FEEDBACK]
knob.
Delay
1–4 Time
(sync sw)
OFF, ON
If this is ON, the modulation
is synchronized to the tempo
of the rhythm (owner’s
manual: p. 24).
Delay 1–4
Time (msec)/
Delay 1–4
Time (note)
1–2600 [msec]
Adjusts the time until the
delay 1–4 sound is heard.
note (p. 60)
Delay 1
Feedback #
-98–+98 [%]
Adjusts the amount of the
delay sound that’s fed back
into the eect. Negative “-”
settings invert the phase.
Parameter Value Explanation
HF Damp
200–8000 [Hz],
BYPASS
Adjusts the frequency above
which sound fed back to
the eect is ltered out
(BYPASS: no cut).
Delay 1–4
Level
0–127 Volume of each delay
Low Gain -15–+15 [dB]
Gain of the low frequency
range
High Gain -15–+15 [dB]
Gain of the high frequency
range
Balance #
D100:0W–
D0:100W
Volume balance between
the direct sound (D) and the
delay sound (W)
Level 0–127 Output Level
42: MULTI TAP DELAY
This eect provides four delays. Each of the Delay Time parameters
can be set to a note length based on the selected tempo. You can
also set the panning and level of each delay sound.
L in
R in
L out
R out
Multi Tap Delay
Balance W
Balance D
Balance W
Balance D
Delay 1
Delay 3
Delay 4
Delay 2
Feed
back
2-Band
EQ
2-Band
EQ
Parameter Value Explanation
Switch OFF, ON Turns the eect on/o.
Depth Knob
DLY 1 FBACK,
BALANCE,
DLY 1 TIME
Species the parameter
that is controlled by the
MODULATION FX [DEPTH]
knob.
Rate Knob
Species the parameter
that is controlled by the
MODULATION FX [RATE]
knob.
Feedback
Knob
OFF,
DLY 1 FBACK,
BALANCE,
DLY 1 TIME
Species the parameter
that is controlled by the
MODULATION FX [FEEDBACK]
knob.
Delay 1–4
(sync sw)
OFF, ON
If this is ON, the modulation
is synchronized to the tempo
of the rhythm (owner’s
manual: p. 24).
Delay 1–4
Time (msec)/
Delay 1–4
Time (note)
1–2600 [msec]
Adjusts the time until Delays
1–4 are heard.
note (p. 60)
Delay 1
Feedback #
-98–+98 [%]
Adjusts the amount of the
delay sound that’s fed back
into the eect. Negative “-”
settings invert the phase.
HF Damp
200–8000 [Hz],
BYPASS
Adjusts the frequency above
which sound fed back to
the eect is ltered out
(BYPASS: no cut).
Delay 1–4
Pan
L64–63R Stereo location of Delays 1–4
