d04927.fm
INSTALLATION MANUAL
BRP-Powertrain
Effectivity: 912 Series
Edition 2/Rev. 0
79-00-00
page 17
August 01/2012

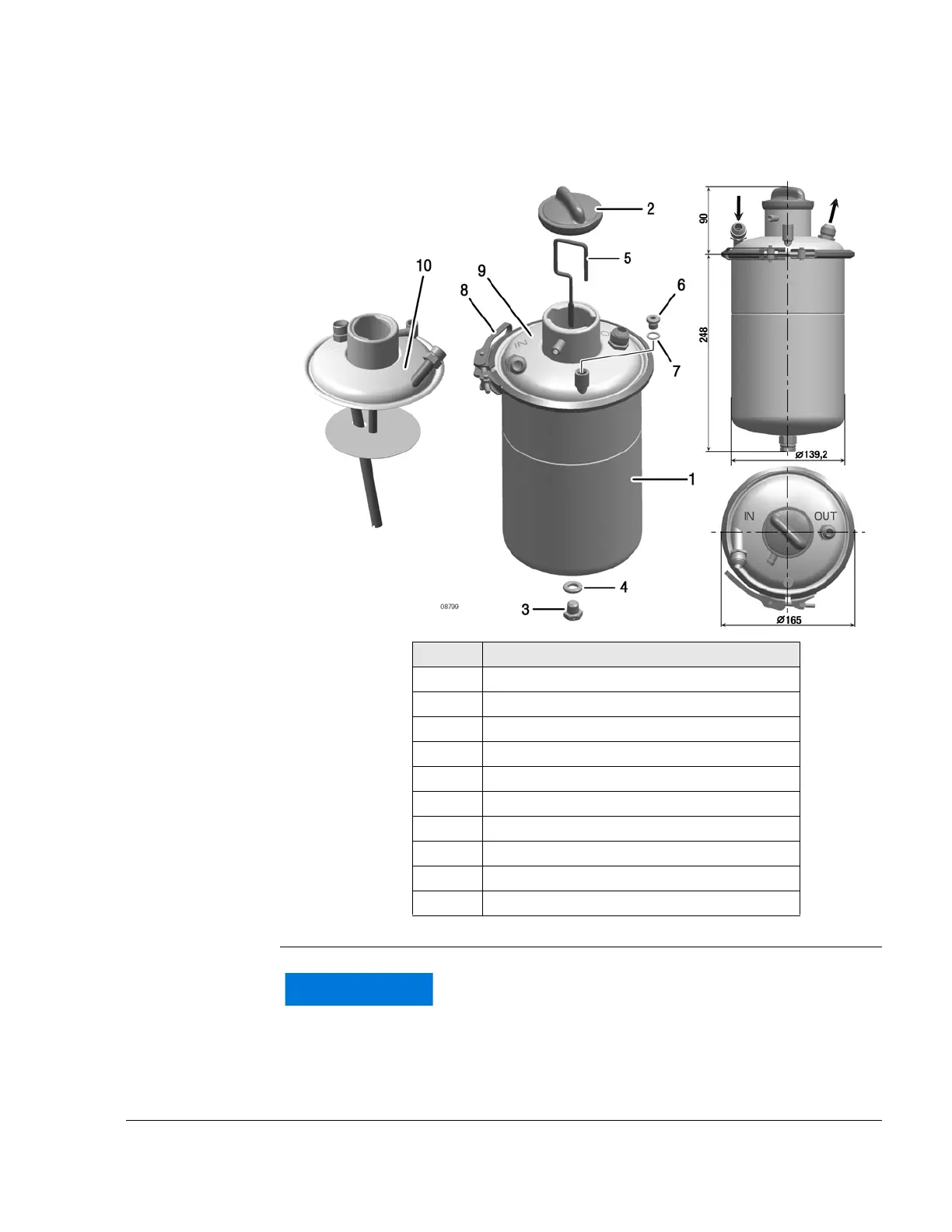

Graphic
OIl tank
Fig. 10 08799
Part Function
1 Oil tank
2 Bayonet cap
3 M12x12 hex. screw
4 C12x18 gasket ring
5 Oil dipstick
6 M10x1 plug screw
7 A10x14 gasket ring
8 Profile clamp 163
9 Oil tank cover assy. (UNF 3/4-16)
10 Oil tank cover assy. (metric M18x1.5)
WARNUNG
NOTICE
If the lines are connected incorrectly, the engine will
not be lubricated and the engine will be damaged very
quickly!

Table of Contents

Other manuals for Rotax 912 Series

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Rotax 912 Series and is the answer not in the manual?

Rotax 912 Series Specifications

General IconGeneral
Redline5800 rpm
TBO2000 hours
Displacement1211 cc
Bore79.5 mm
Stroke61 mm
Power Output80 hp (59.6 kW)
Compression Ratio9.0:1
Fuel TypeAvgas 100LL
Ignition SystemDual electronic ignition
Fuel SystemFuel Injected
Oil SystemDry sump
Engine Type4-cylinder, horizontally opposed, 4-stroke
