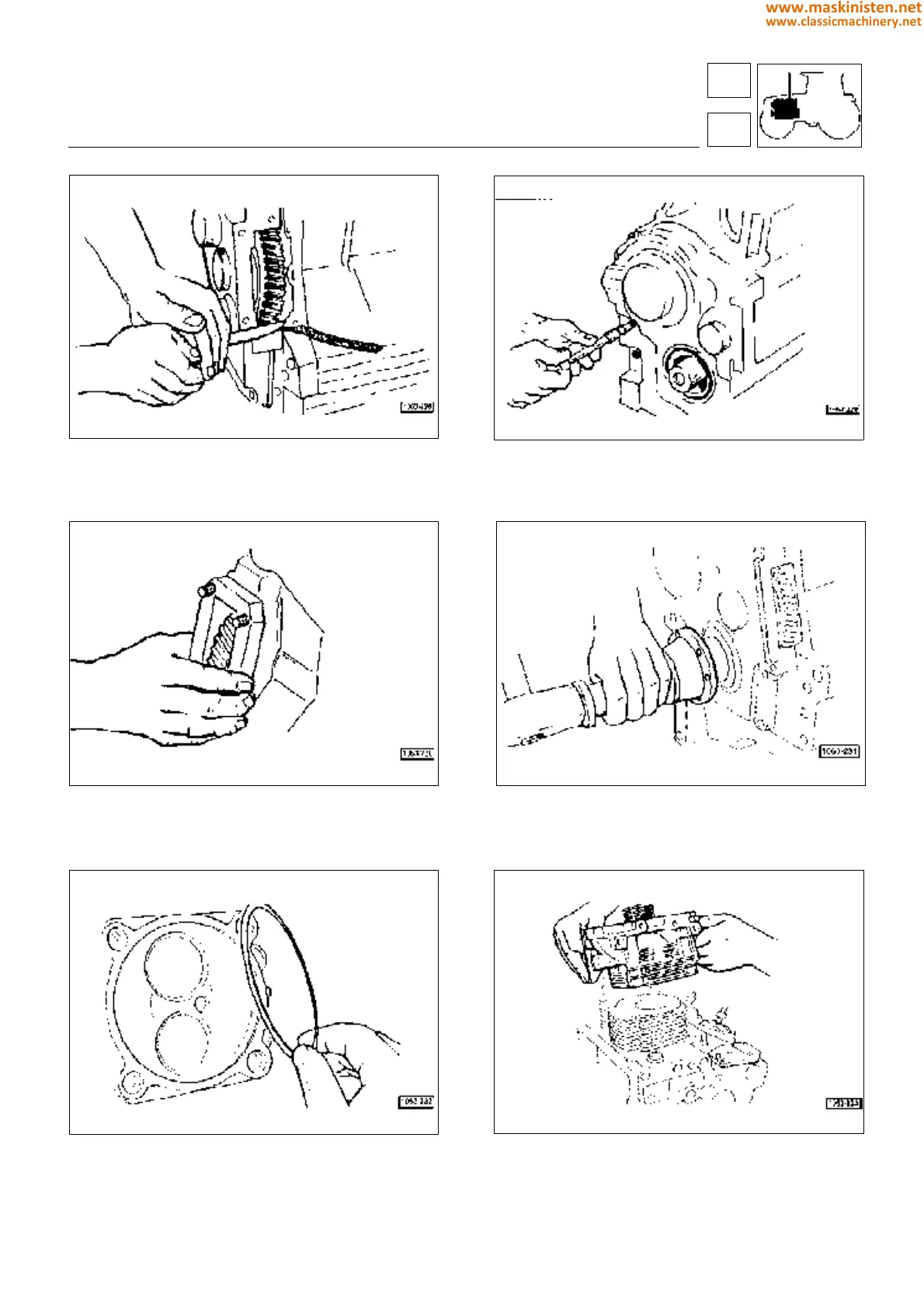

Fig. 53 - Remove excess gasket from the face used to fix
external applications;
Fig. 55 - Fit no. 5.9030.634.0 tool as shown in figure to obtain
thorough concentricity between sealing ring and crankshaft
as well as a full coplanarity of the external application fixing
faces, then fully tighten the timing case securing screws.
Remove the tool;
Fig. 57 - Fit gaskets between cylinder heads and cylinders
(see instructions on page 27);
Fig. 54 - Insert all timing case securing screws but do not
tighten fully;
Fig. 56 - Using a suitable plug fit the pulley hub to the
crankshaft;
Fig. 58 - After preassembling the heads install on engine;
engine
assembly
1
101
