QUICK INSTALLATION GUIDE: SNC-3322

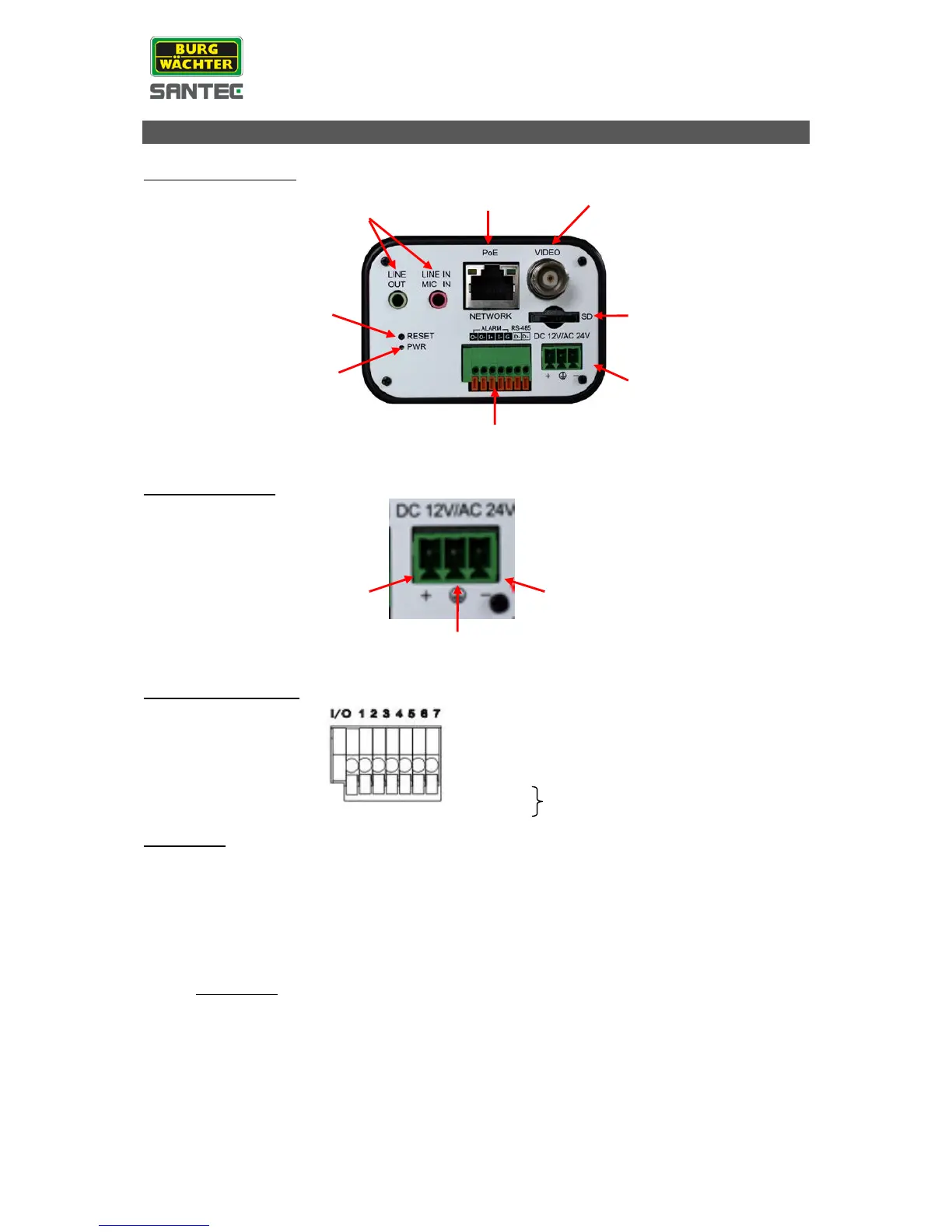

Camera connections:
Connect to power:
Alarm I/O connection:
IP address:
1. Insert the CD (included in the delivery) into your PC/laptop and install the IP-finder.
2. The IP-finder displays an IP address for the camera. Double-click on the IP address
and the Internet Explorer comes up automatically. In case this doesn’t work, you may
also enter the IP address (as shown by the IP-finder) manually into the Internet
Explorer. Using the IP-finder, another IP address can be assigned to the camera, if
required.
IP address:
The camera comes with a default IP address:
Default IP address: 192.168.1.168 (or by DHCP, if available)
User name: admin
Pass word: 9999
Please refer to the following chapters in this user manual for further installation information
and on camera configurations.
1. Output +
2. Output -
3. Input +
4. Input –
5. GND
6. D – RS-485
7. D +
Reset button
For 24 V AC: Connection 1
For 12 V DC: Connection
2-way audio
transmission
PoE conection
RJ-45
Power LED
Video connection BNC
SD card slot
Power connection
12 V DC / 24 AC
Alarm I/O connection
For 24 V AC: Connection 2
For 12 V DC: GND
For 12 V DC / 24 V AC: FG
