SNC-4323IR:

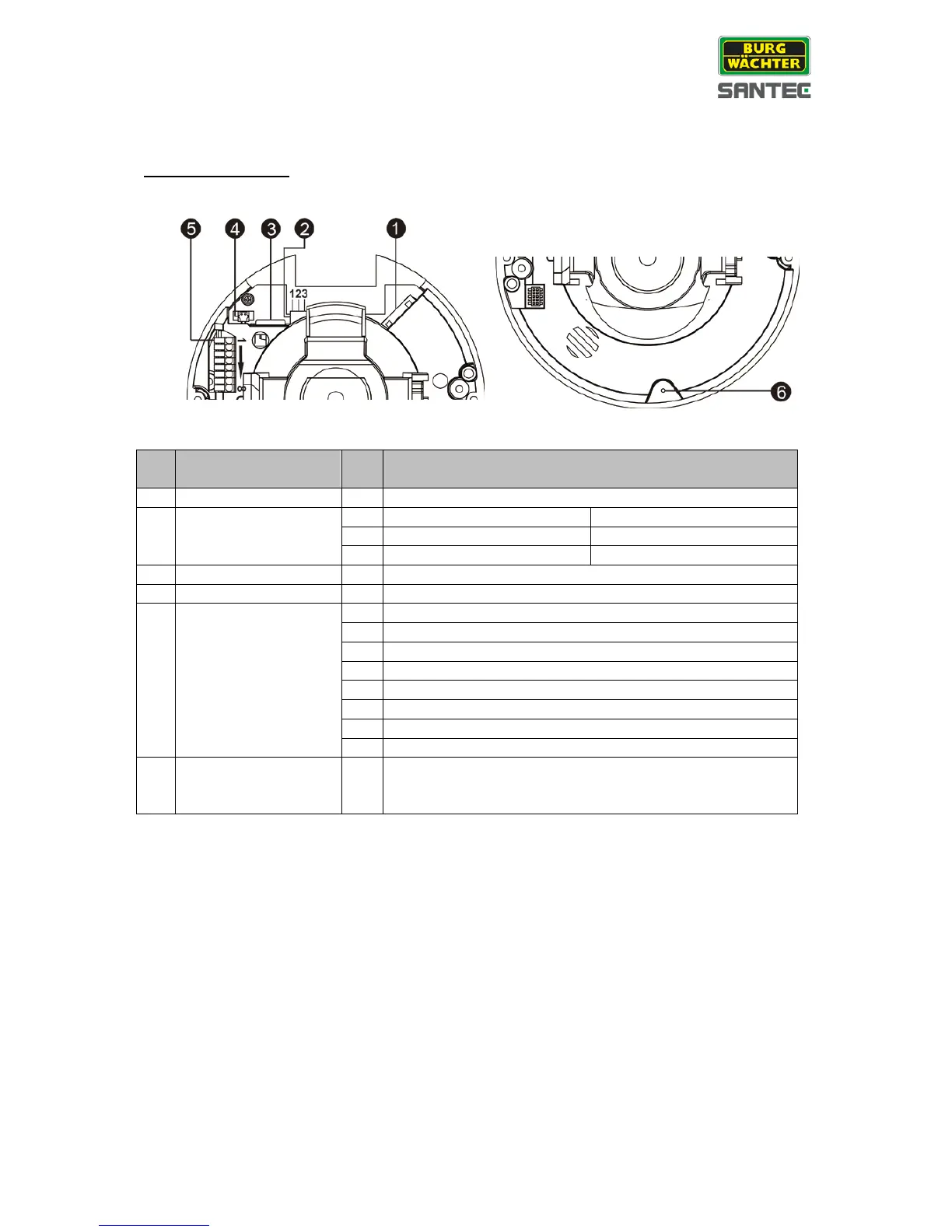

Camera inside view:
No
.
Connector
Pin
Definition
1
RJ-45
-
10/100 Mbps Ethernet / PoE
2
Power
24 V AC / 12 V DC
1
24 V AC: Power -1
12 V DC: Power
2
24 V AC: GND
12 V DC: Reserved
3
24 V AC: Power -2
12 V DC: GND
3
Micro SD card slot
-
For video recording
4
BNC
-
Analogue video output
5 Alarm & Audio I/O
1
Alarm In (–)
2
Alarm In (+)
3
Alarm Out (–)
4
Alarm Out (+)
5
Audio Out (L)
6
Audio Out (R)
7
GND
8
Audio In
6 Reset button -
Press the reset button (at least 20 sec.) using a
pointed, thin object to reset the camera to factory
default settings.
