SNC-6202 and SNC-6212IR:

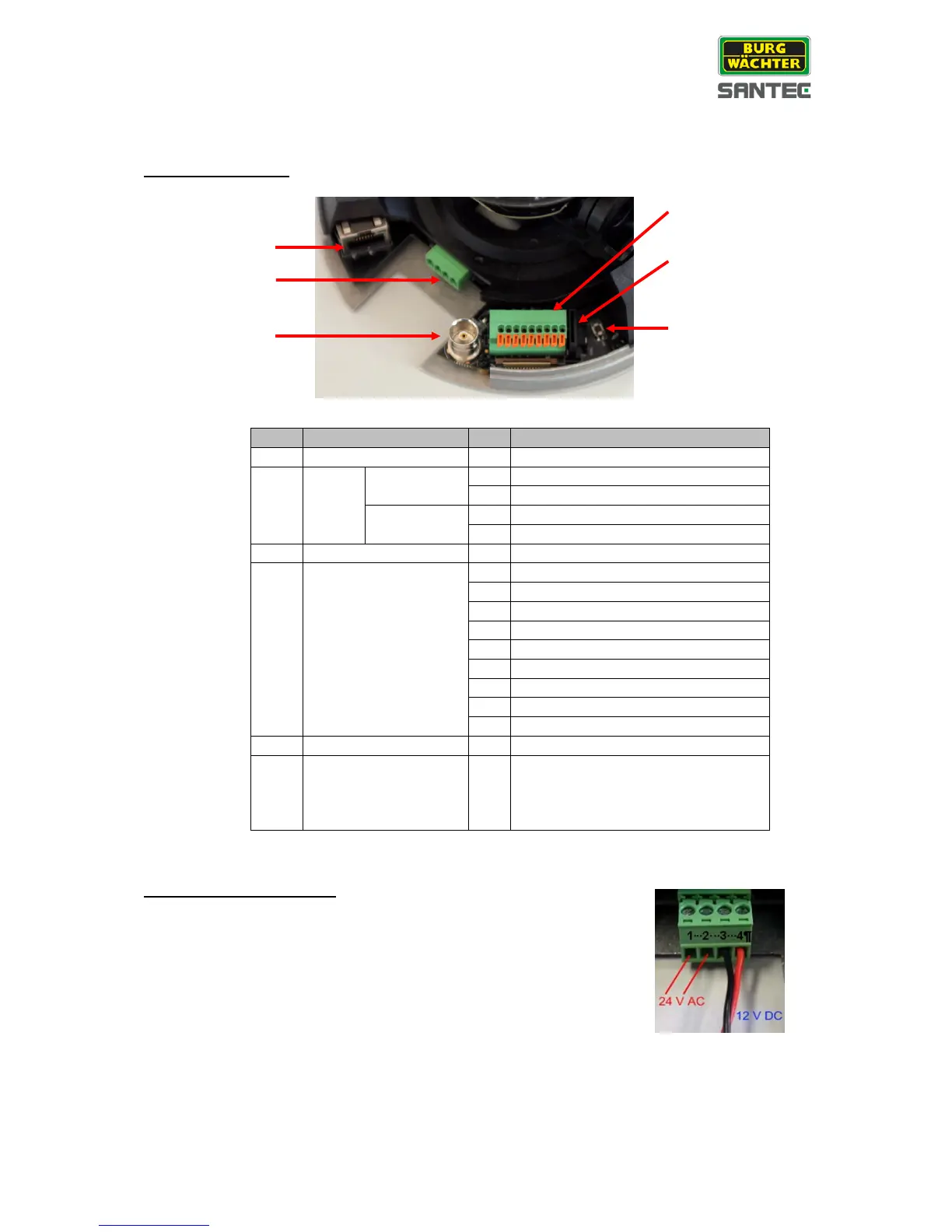

Camera inside view:
Note on power connection:
When connecting power, please note that the connection pins on the
4-pin plug are separate for 12 V DC and 24 V DC.
Improper power connection may lead to camera damages and to
invalidation of warranty!
No.
Connector
Pin
Definition
1
RJ-45
-
10/100 Mbps Ethernet / PoE
2 Power
24 V AC
1
24 V AC
2
24 V AC
12 V DC
3
12 V DC (-), GND
4
12 V DC (+)
3
BNC
-
Analogue video output
4 Alarm & Audio I/O
1
Alarm In (–)
2
Alarm In (+)
3
Alarm Out (–)
4
Alarm Out (+)
5
Audio Out (R)
6
Audio Out (L)
7
Audio GND
8
Audio In (R)
9
Audio In (L)
5
Micro SD card slot
-
For video recording storage
6 Reset button -
Press your finger on the reset
button for approx. 15 sec. to
restore the camera to factory
settings.
6
5
4
3
2
1
