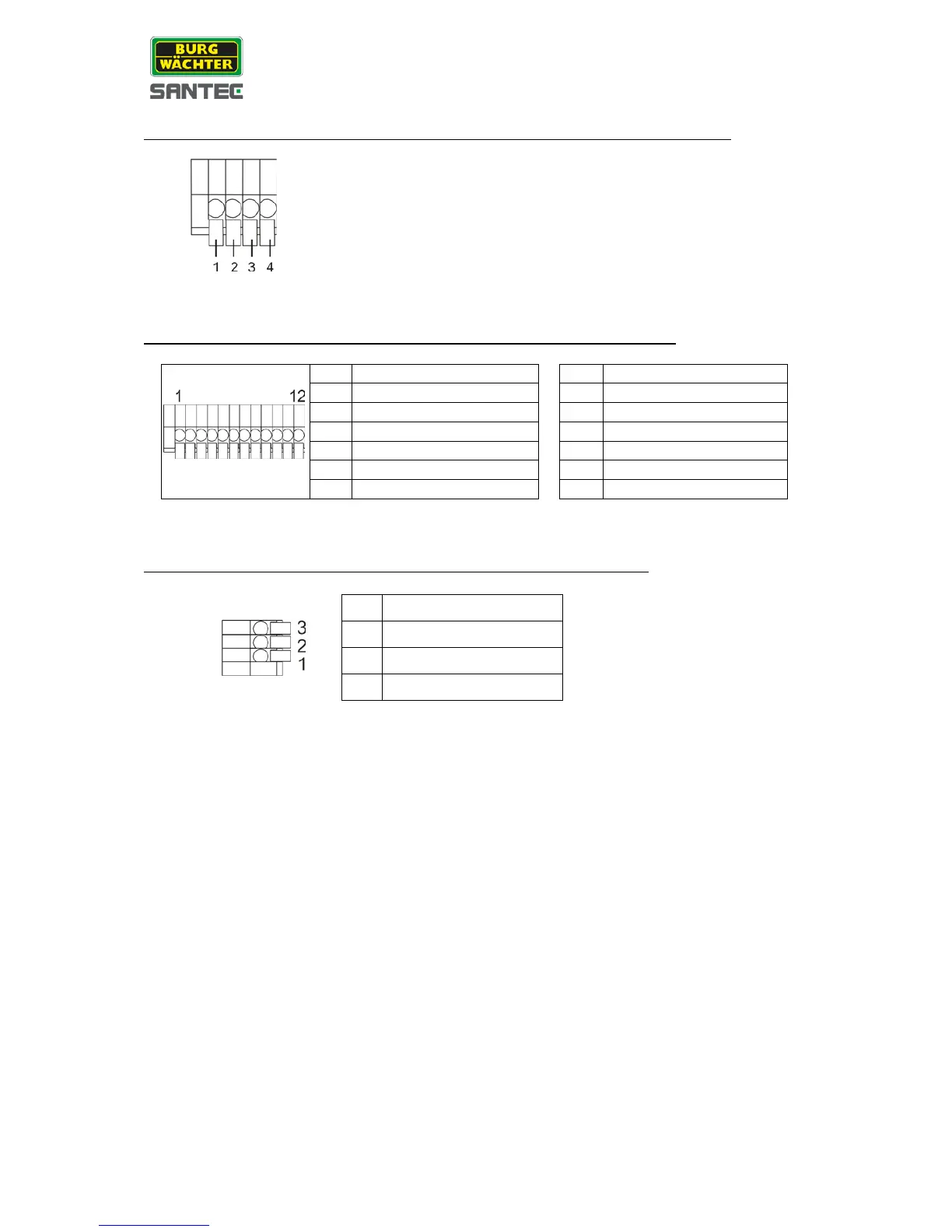

SNC-6302, SNC-6312IRH, SNC-6315IRH, SNC-6323IRH: Pins for external circuit:
PIN 1: GND (Input -)
PIN 2: Input +
PIN 3: Output -
PIN 4: Output +
SNC-8322I, SNC-8322HO: Pins for external circuit: Alarm I/O connections:
Pin
Description
Pin
Description
1
ALARM_OUT_NO_1
7
ALARM_OUT_COM_2
2
ALARM_OUT_NC_1
8
GND
3
ALARM_OUT_COM_1
9
ALARM_IN_4
4
GND
10
ALARM_IN_3
5
ALARM_OUT_NO_2
11
ALARM_IN_2
6
ALARM_OUT_NC_2
12
ALARM_IN_1
SNC-8322I, SNC-8322HO: Pins for external circuit: Audio connections:
Pin Description
3
LINE_IN
2
GND
1
LINE_OUT
