SATEL VERSA 29
Partition 1 / Partition 2 – partition to which the zone is assigned. The zone must be
assigned at least one partition, for its status to be supervised.

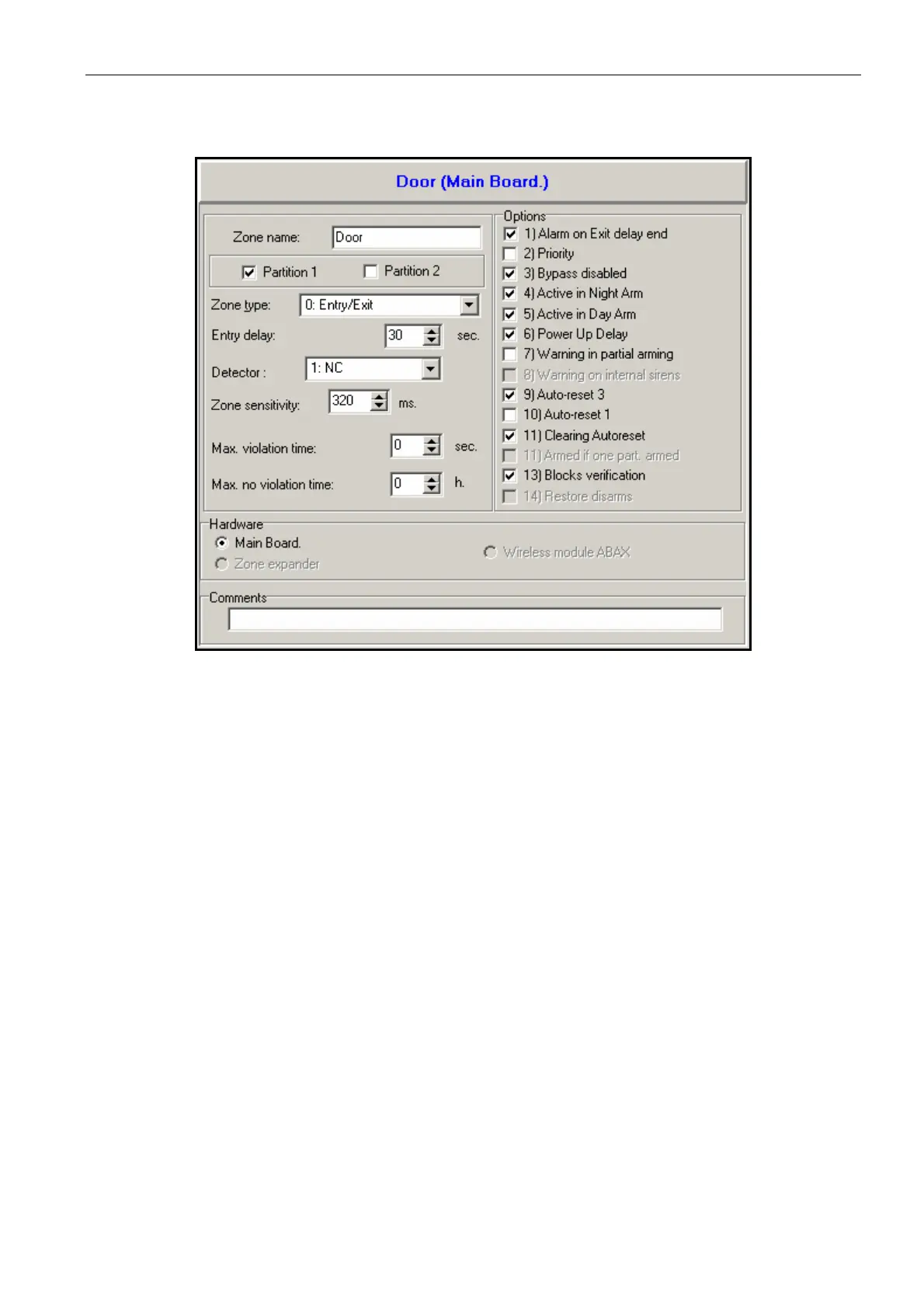

Fig. 9. Programming the zone parameters in "Versa – Structure" window in the DLOADX
program (an example of configuration).
Entry delay – the time counted from the moment of violating a zone with the reaction type
0. ENTRY/EXIT or 1. ENTRY/EXIT FINAL, which makes disarming possible before triggering the
alarm. It is programmed in seconds and can be up to 255 seconds. If the value 0 is
programmed, the ENTRY DELAY programmed for the partition will be taken into account. If the
value 0 is programmed for both the zone and the partition, the zone will act as an instant
one.
Delay time – the time counted from the moment of violating a zone with the reaction type
2. E
NTRY/EXIT ROUTE, if it acts as a delayed one. The time is programmed in seconds and
can be up to 255 seconds. If the value 0 is programmed, the E
NTRY DELAY programmed for
the partition will be treated as the D
ELAY TIME. If the value 0 is programmed for both the
zone and the partition, the zone will act as an instant one.
Delay activation time – the time counted from the moment of violating a zone with the
reaction type 18. E
NTRY ROUTE ENABLING. During countdown of this time, the zones with the
reaction type 2. ENTRY/EXIT ROUTE WILL act as the delayed ones. The time is programmed
in seconds and can be up to 255 seconds. If the value 0 is programmed, the ENTRY DELAY
programmed for the partition will be treated as the DELAY ACTIVATION TIME. If the value 0 is
programmed for both the zone and the partition, violation of the zone will have no effect.
Waiting time – the time counted from the moment of violating a zone with the reaction type
4. DOUBLE KNOCK. If the zone is violated again during the waiting time, it will trigger alarm.
The time is programmed in seconds and can be up to 255 seconds. Programming the
value 0 means that the WAITING TIME will be 30 seconds.
