4. FIRE ALARM – signals the fire alarms from keypad and from zones with reaction type
10. 24H FIRE.
5. “DURESS” ALARM – signals that code with DURESS right was used for arming/disarming or
alarm clearing.
6. PANIC ALARM – signals the panic alarms from keypad and from zones with reaction type
7. 24H PANIC.
7. AUX. ALARM – signals the medical assistance call alarms triggered from keypad and from
zones with reaction type 9. 24H MEDICAL.
8. ALARM – NOT VERIFIED – signals the unverified alarms.
9. ALARM - VERIFIED – signals the verified alarms.
10. TAMPER ALARM – signals the tamper alarms.
11. FIRE DETECTORS POWER SUPPLY – the dedicated output for power supply of the fire
detectors with automatic verification alarm. After violation of the fire zone the output will be
disabled for 16 seconds. If, after the power is turned on again, another violation from the
fire zone occurs, the fire alarm will be triggered.
12. POWER SUPPLY ON ARMED – the dedicated output for power supply of the detectors which
should not be active when the system is disarmed. It gets activated at moment of arming,
without taking into account the EXIT DELAY.
13. ZONE VIOLATION – signals violation of the zones.
14. CHIME – signals violation of the zones when they are disarmed.
15. CONTROLLED – controlled by means of zones, timers, keypad or from key fob.
16. READY STATUS – indicates whether the system is ready for arming, i.e. whether there are
no violated zones (active when there is no violation).
17. EXIT DELAY STATUS – indicates that the EXIT DELAY countdown is running.
18. ARMED STATUS – indicates the armed mode (after completion of the exit delay countdown).
19. TROUBLE STATUS – indicates troubles.
6.3 Output parameters

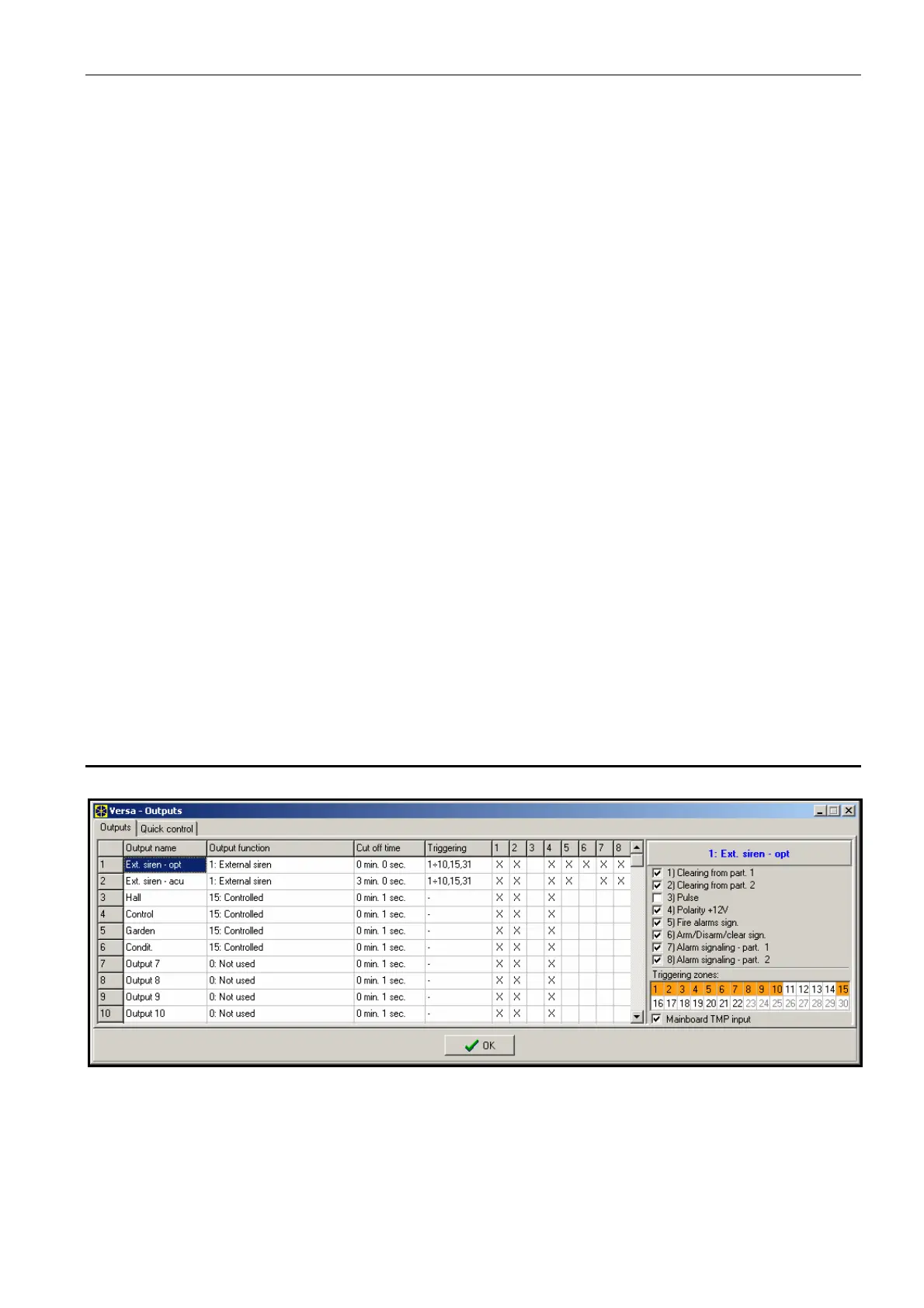

Fig. 10. "Versa – Outputs" window in the DLOADX program.
Output name – individual name of the output (up to 16 characters).
Cut-off time – time during which the alarm outputs and the outputs with functions 13. ZONE
VIOLATION
, 14. CHIME and 15. CONTROLLED are active. Entering the value 0 modifies the
way of functioning of some outputs:
– alarm outputs remain active until the alarm is cleared,
