6.00 PLANNING Screen
6.00 PLANNING Screen
(GPS Map → PLANNING)
The PLANNING screen is accessed from the
GPS Map screen by moving the joystick.
The centre of the location icon is a small black
cross in the middle of the page instead of a
blue dot as with the GPS Map screen. From
the edges of the orange location icon radiate
cross hairs as an additional visual cue that
you are in planning mode rather than GPS
mode.
The map is moved using the joystick.
The POSITION INFO page (section 8.00) may
be accessed from the PLANNING screen by
centre pressing the joystick.
When a map is loaded, the PLANNING
screen shows a central default location for
that particular map.
There is a data box overlay which shows;
• Grid reference – format options are given
in GPS Settings section 5.07 (Position
Display Format option).
• Altitude (elevation above sea level) for this
location.
• Distance from your last known location, ie
where you last had a GPS x. This is useful
as a ‘rangender’ (section 14.01).
• Bearing from your last known location –
format options given in Compass Settings,
section 5.10 (Compass Display).
Note: This data overlay is not congurable by
the user, unlike the 2 Data Box and 4 Data
Box layouts available on the GPS Map screen
(section 3.00).
When the crosshairs are moved over a POI
or a Route, a POI/Route indicator icon
appears at the bottom of the screen. Centre
pressing the joystick brings up further
information (section 9.08).
Buttons:
Toggle Maps
Toggle between maps at the same zoom level
(section 3.00)
ROUTES MENU
Go to ROUTES MENU page (section 7.00)
Lock to GPS
Go to GPS Map screen (section 3.00)
Zoom
Zoom in/out
Page
Go to MAIN MENU page (section 4.01)

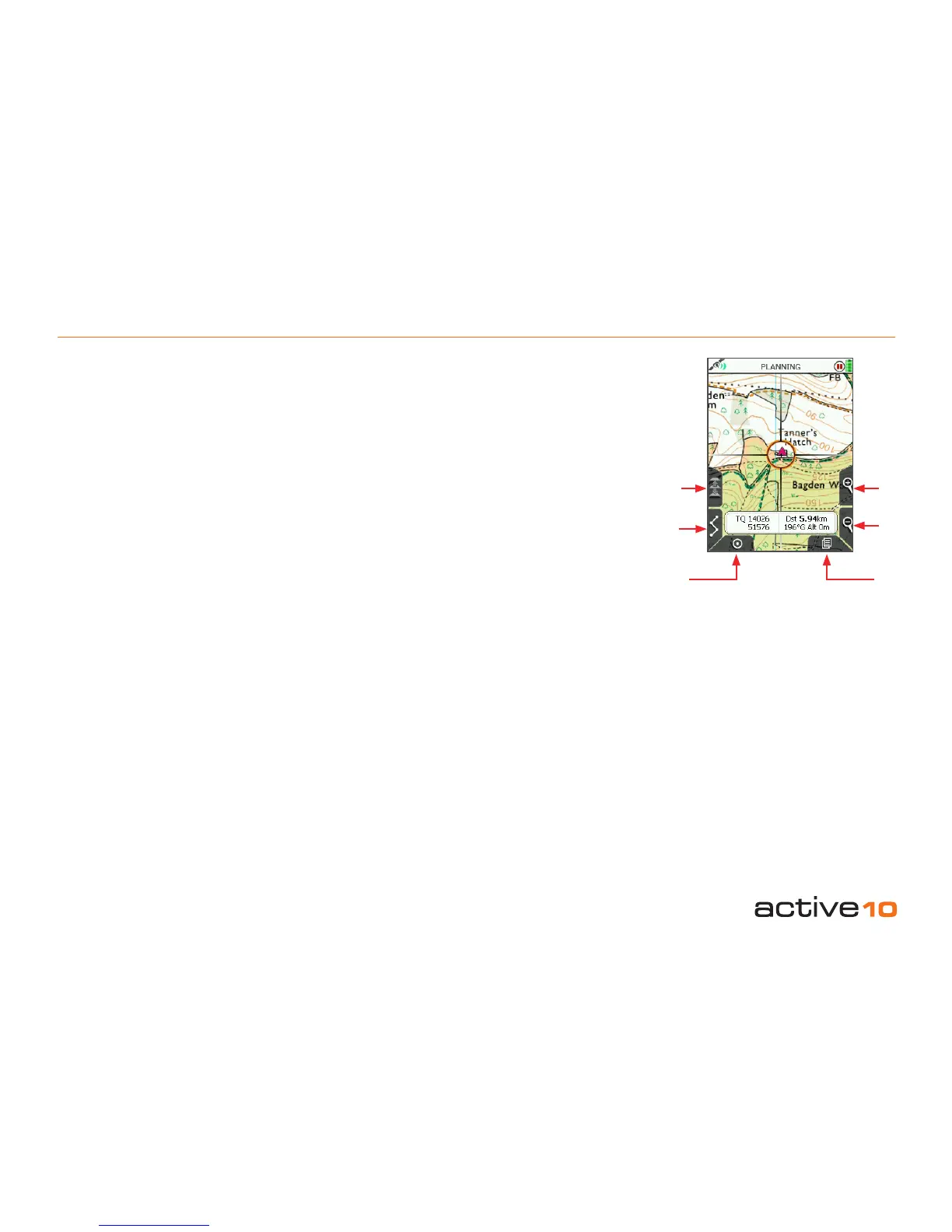

Figure 6.00
Toggle
maps
ROUTES
MENU
Lock to
GPS
Zoom
In
Zoom
Out
Page
