4 Operation and Configuration
152
S84-ex/S86-ex Operator Manual

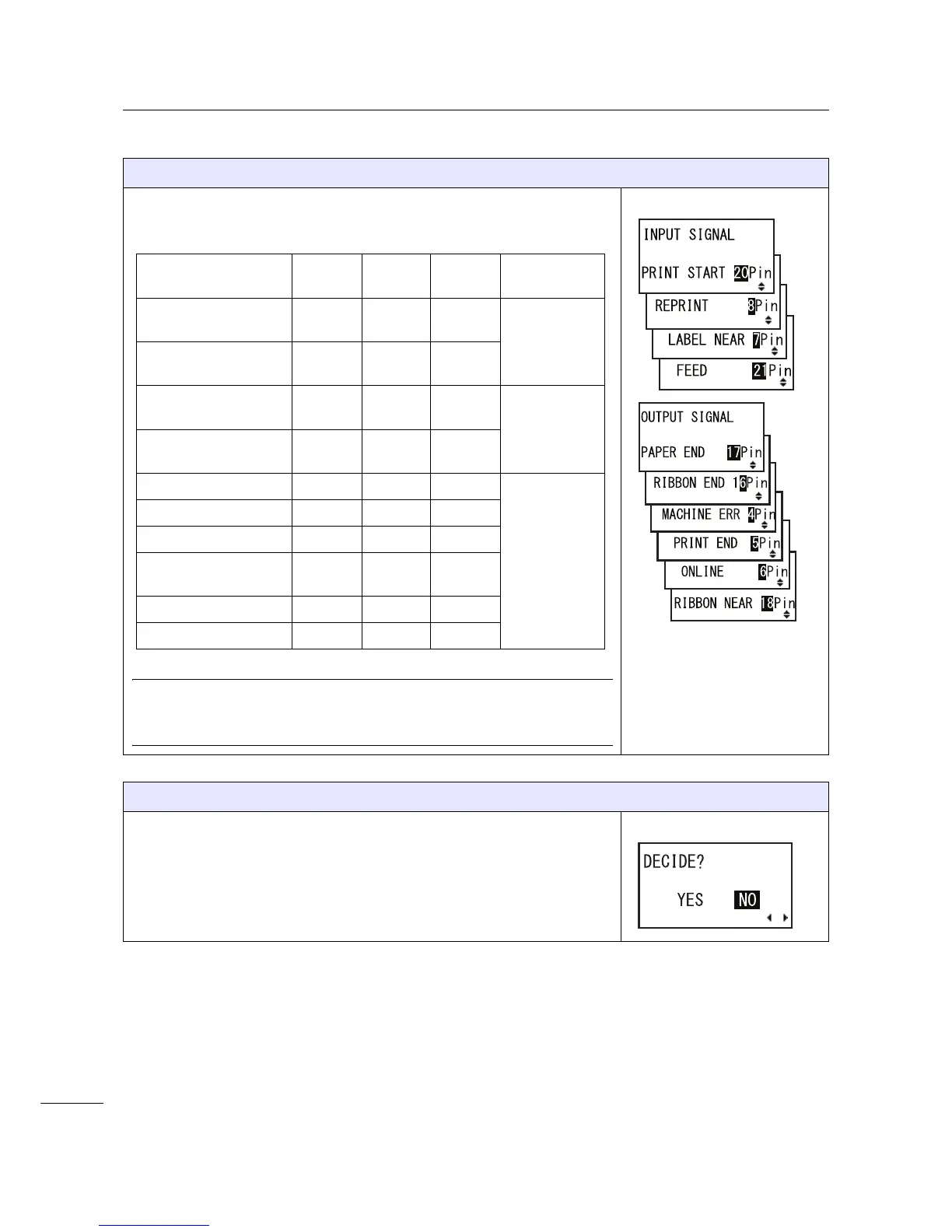

INPUT SIGNAL/OUTPUT SIGNAL
Set the pin number for the input/output signal.
The setting details are as follows:
Note
For details, refer to Section 8.5 Input/Output Signal of the External
Signal.
DECIDE?
Select whether or not to confirm the input/output signal setting.
• YES: Proceed to the UPDATED SETTING screen.
• NO: Returns to the I/O SIGNAL SETTING screen.
Signal Name Input/
Output
Default
Pin No.
Overla
pping
Available
Pin No.
PRINT START Input 20 Not
Allowed
Can be set to
8 or 20.
REPRINT Input 8 Not
Allowed
LABEL NEAR END Input 7 Not
Allowed
Can be set to
7 or 21.
“-”: Function
is disabled.
FEED Input 21 Not
Allowed
PAPER END Output 17 Allowed Can be set to
4, 5, 6, 16,
17 or 18.
“-”: No output
RIBBON END Output 16 Allowed
MACHINE ERROR Output 4 Allowed
PRINT END Output 5 Not
Allowed
ONLINE Output 6 Allowed
RIBBON NEAR END Output 18 Allowed
