S84-ex/S86-ex Operator Manual

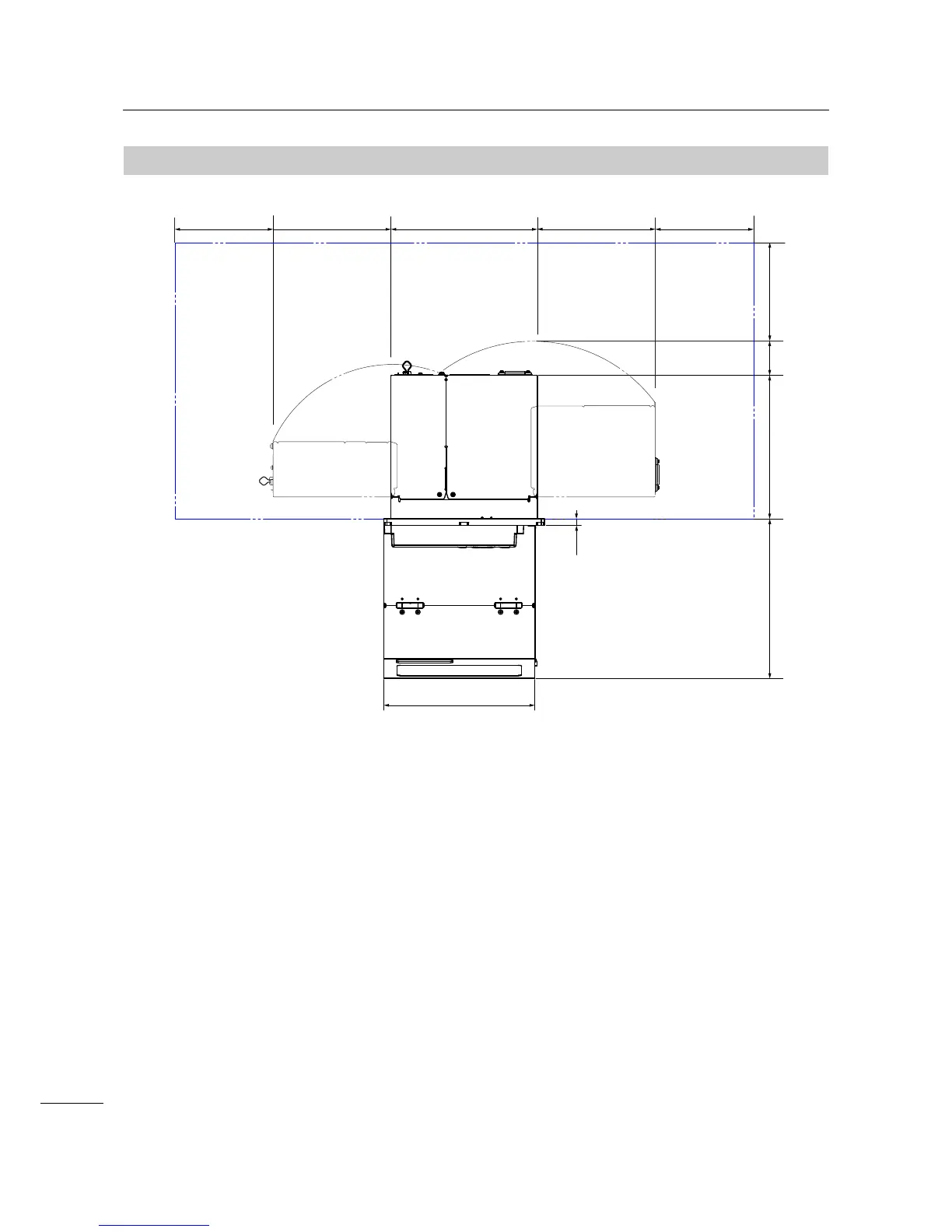

2.2.6 Top View (S86-ex printer)
51 mm
(2”)
230 mm (9.1”)
150 mm (5.9”)
223 mm (8.8”) 174 mm (6.85”)174 mm (6.85”) 150 mm (5.9”)150 mm (5.9”)
219 mm (8.6”)243 mm (9.6”)
10 mm (0.4”)
Americas: Standard/Right Hand
Europe/Asia: Left Hand
