SATO s86ex - Adjusting the I-Mark Sensor Level Manually

6 Cleaning and Performing Printer Adjustments
258
S84-ex/S86-ex Operator Manual

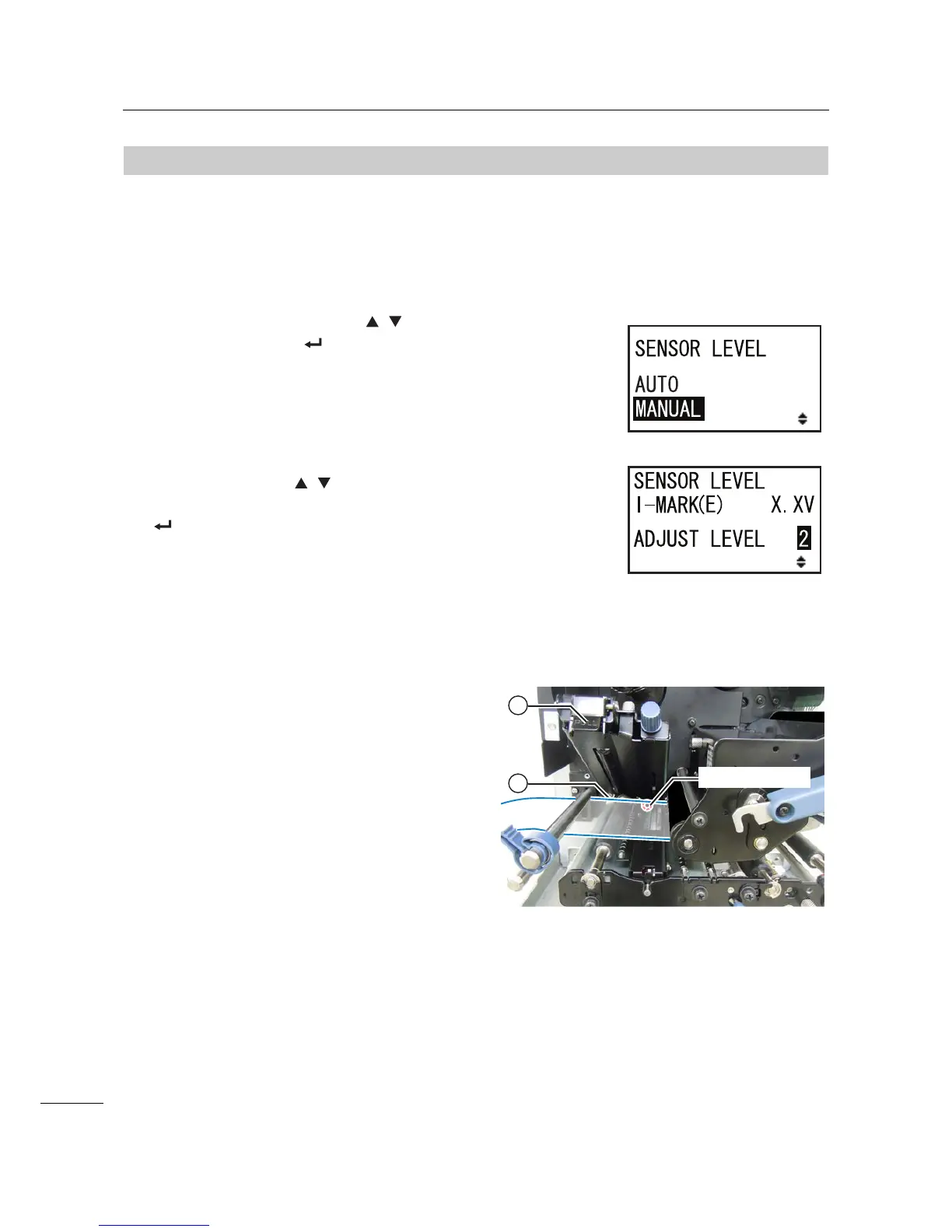

6.5.2 Adjusting the I-mark Sensor Level Manually
The adjustment procedure for the I-mark sensor level is as follows:
1 Go to the SENSOR LEVEL setting screen
of SERVICE MODE.
Perform steps 1 through 4 of Section 6.5.1
Adjusting the Media Sensor Automatically.
2 Select MANUAL using the / buttons
and then press the ENTER button.
The light emission level adjustment of the I-mark
sensor is shown.
3 On the SENSOR LEVEL I-MARK(E)
screen, press the / buttons to set
ADJUST LEVEL to 2 and then press the
ENTER button.
The adjustment range of ADJUST LEVEL is from 0
to 3.
We recommend using the initial value which is 2.
The light reception level adjustment of the I-mark
sensor is shown.
First, adjust the “Low” reception level (voltage) of the I-mark sensor.
4 Open the top cover and unlock the media
feed and media sensor assembly .
5 Physically place the media , with the
portion without the I-mark resting over the
I-mark sensor.
6 Press the media feed and media sensor
assembly  down to lock it.
To get the correct adjustment result, close the
media sensor assembly before performing the
adjustment.
1
2
I-mark sensor
