2 Installing the Printer
23
S84-ex/S86-ex Operator Manual

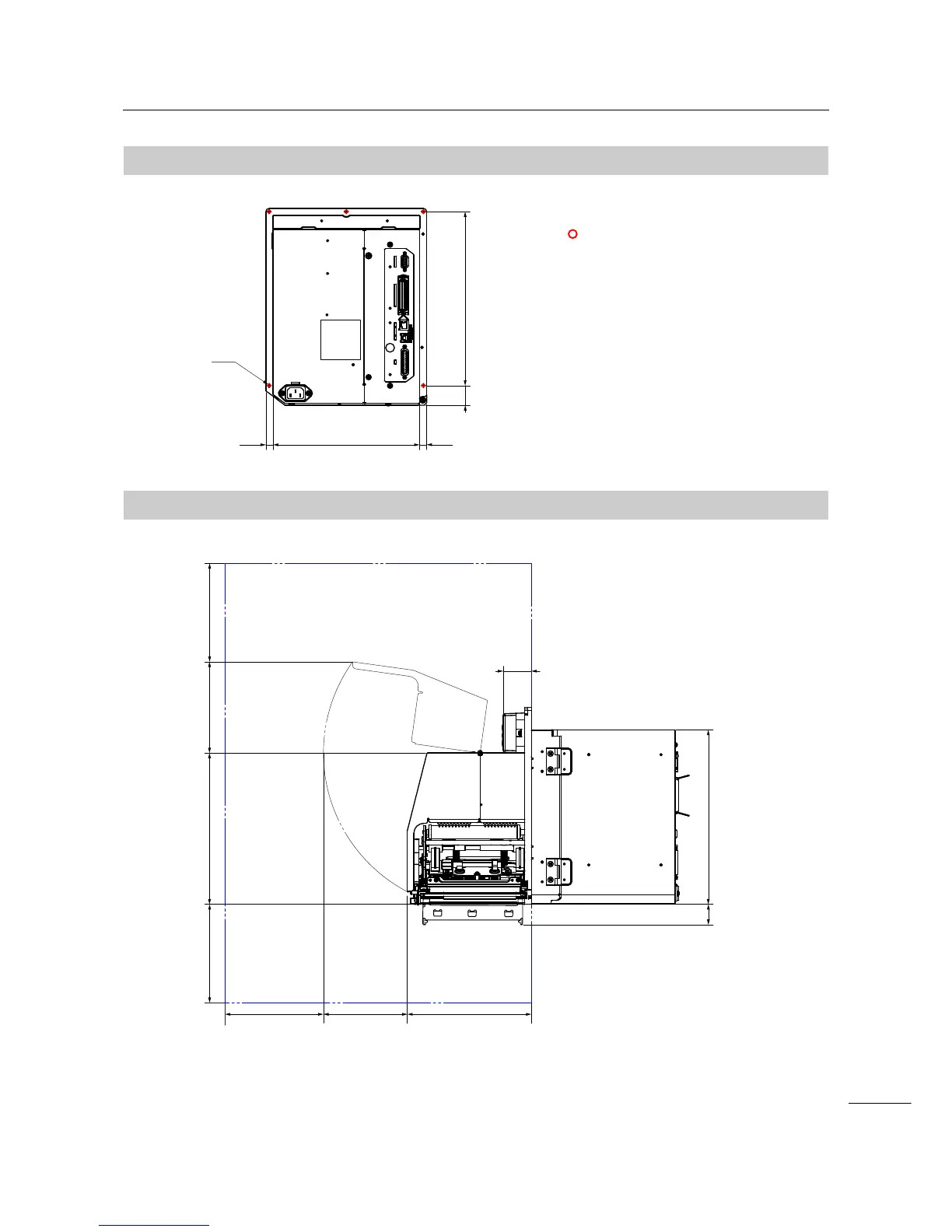

2.2.2 Rear View (S84-ex/S86-ex printer)
2.2.3 Media Dispensed View (S84-ex printer)
223 mm (8.8”)
11 mm (0.4”)
11 mm (0.4”)
265 mm (10.4”)
Ø 5 mm (0.2”)
5 positions
30 mm
(1.2”)
indicates five positions of
bores for installing the printer
to a support structure.
Americas: Standard/Right Hand
Europe/Asia: Left Hand
150 mm (5.9”) 150 mm (5.9”)
150 mm (5.9”)
231 mm (9.1”)
189 mm (7.4”)
266 mm (10.5”)
43 mm (1.7”)
131 mm (5.15”)
168 mm (6.6”)
Americas: Standard/Right Hand
Europe/Asia: Left Hand
36 mm
(1.4”)
