6.3 Adjusting the Base Reference Point
6.3.1 About the Base Reference Point

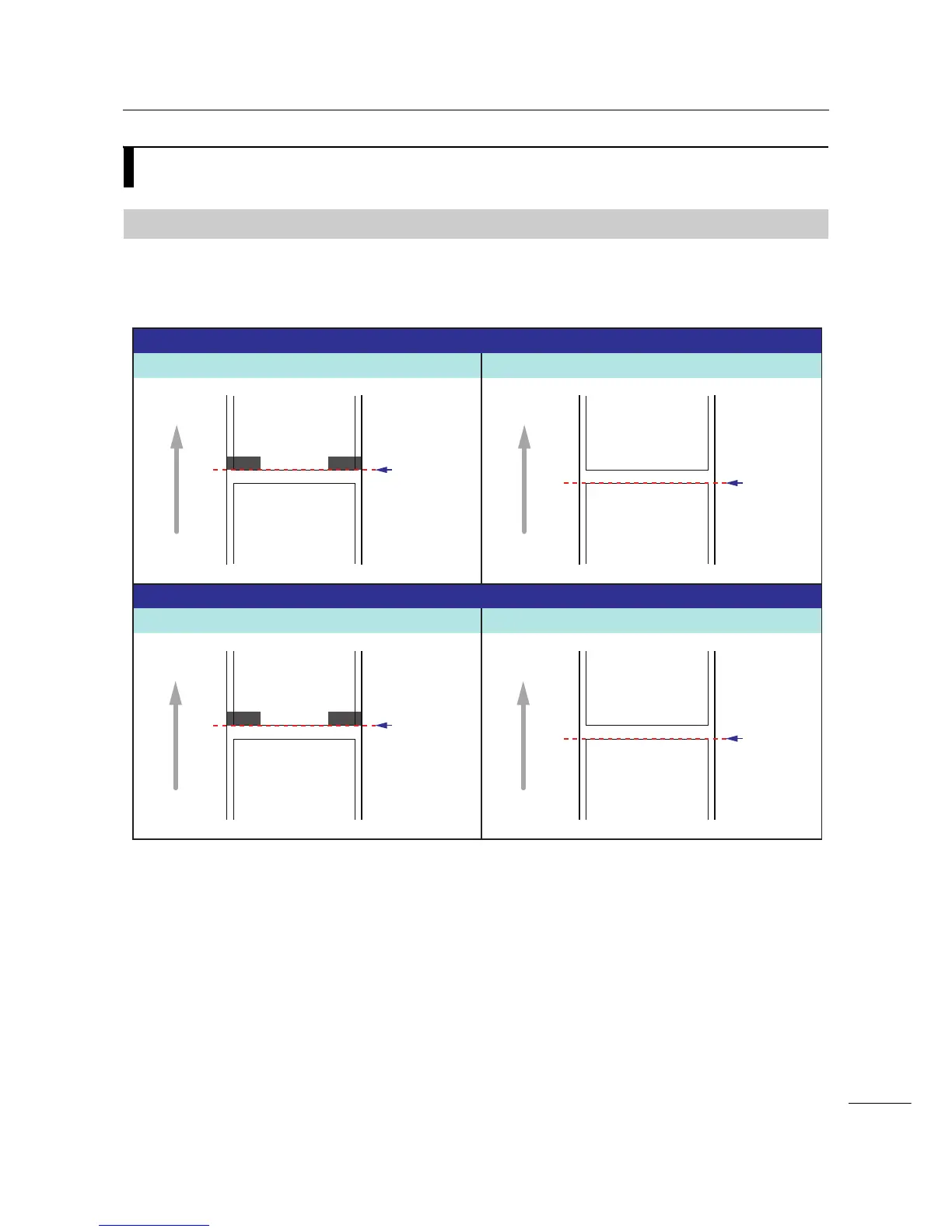

The base reference point is the point at which one determines the print position and stop/dispensing
position.
The base reference point differs depending on the operation mode or media sensor you use.
Gap Label
I-mark Label
Continuous Mode
Gap Label
I-mark Label
Print and
dispensing
position
Dispenser Mode
Print and
dispensing
position
Print and
stop position
Print and
stop
position
Feed direction Feed direction
Feed direction Feed direction
