8 Appendix
357
S84-ex/S86-ex Operator Manual

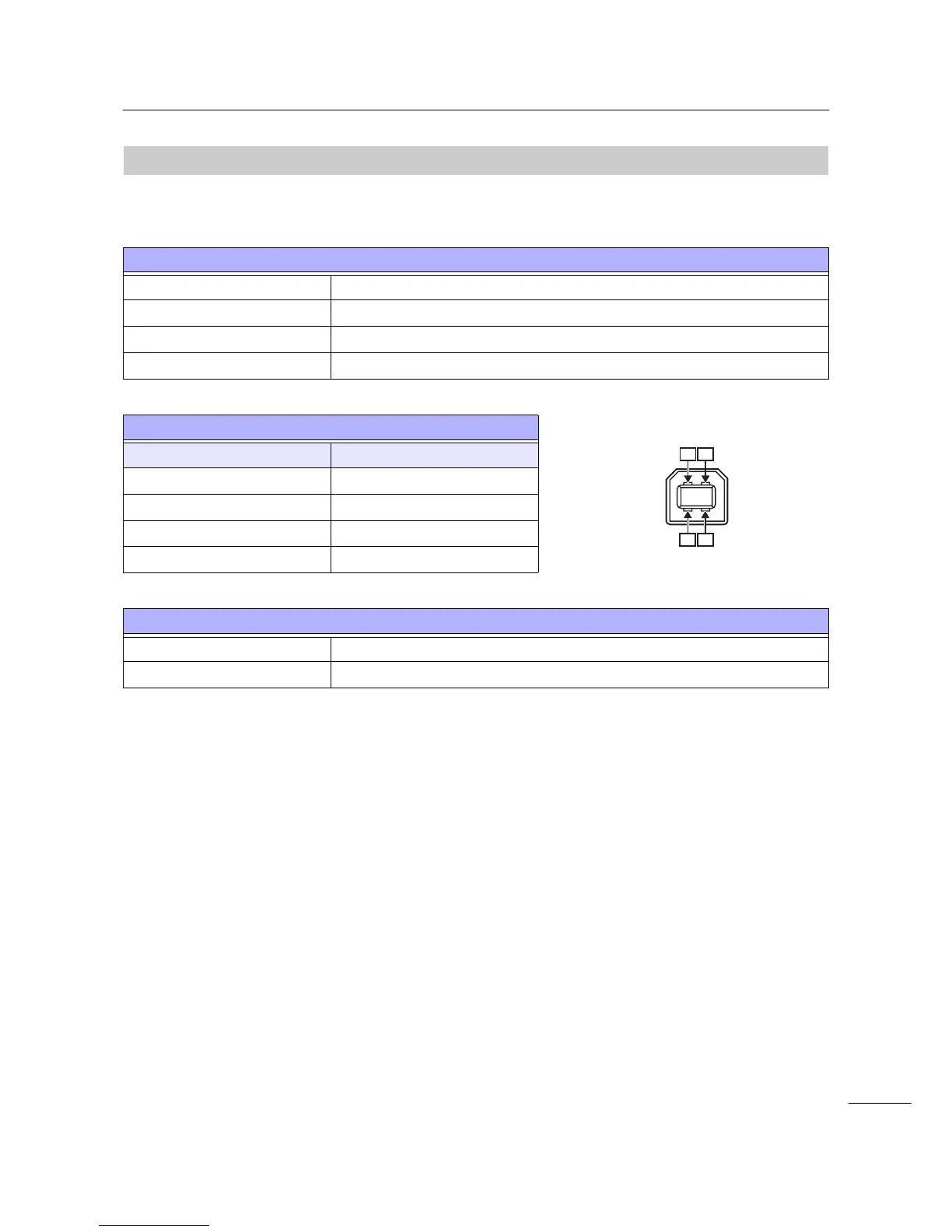

8.13.1
USB Interface
This interface complies with the USB2.0 standard.
Install the USB driver to the computer before use.
Basic Specifications
Connector USB Type B connector
Protocol Status4, Status5
Power Supply BUS Power through cable
Power Consumption +5 V at 80 mA
Pin Assignments
Pin No. Description
1 VBus
2-Data
3+Data
4GND
Cable Specifications
Cable Connector USB Type B connector
Cable Length 5 m (16.4 feet) or less
