6 Cleaning and Performing Printer Adjustments
268
S84-ex/S86-ex Operator Manual
6.7.2 Front - Rear Head Alignment
Required tools:
• Phillips screwdriver
• Slotted screwdriver
The adjustment procedure for the head alignment is as follows:
1 Open the top cover of the printer.
2 Make sure that the head lock lever is in the lock position.
If it is not locked, turn the head lock lever counterclockwise to lock the print head.

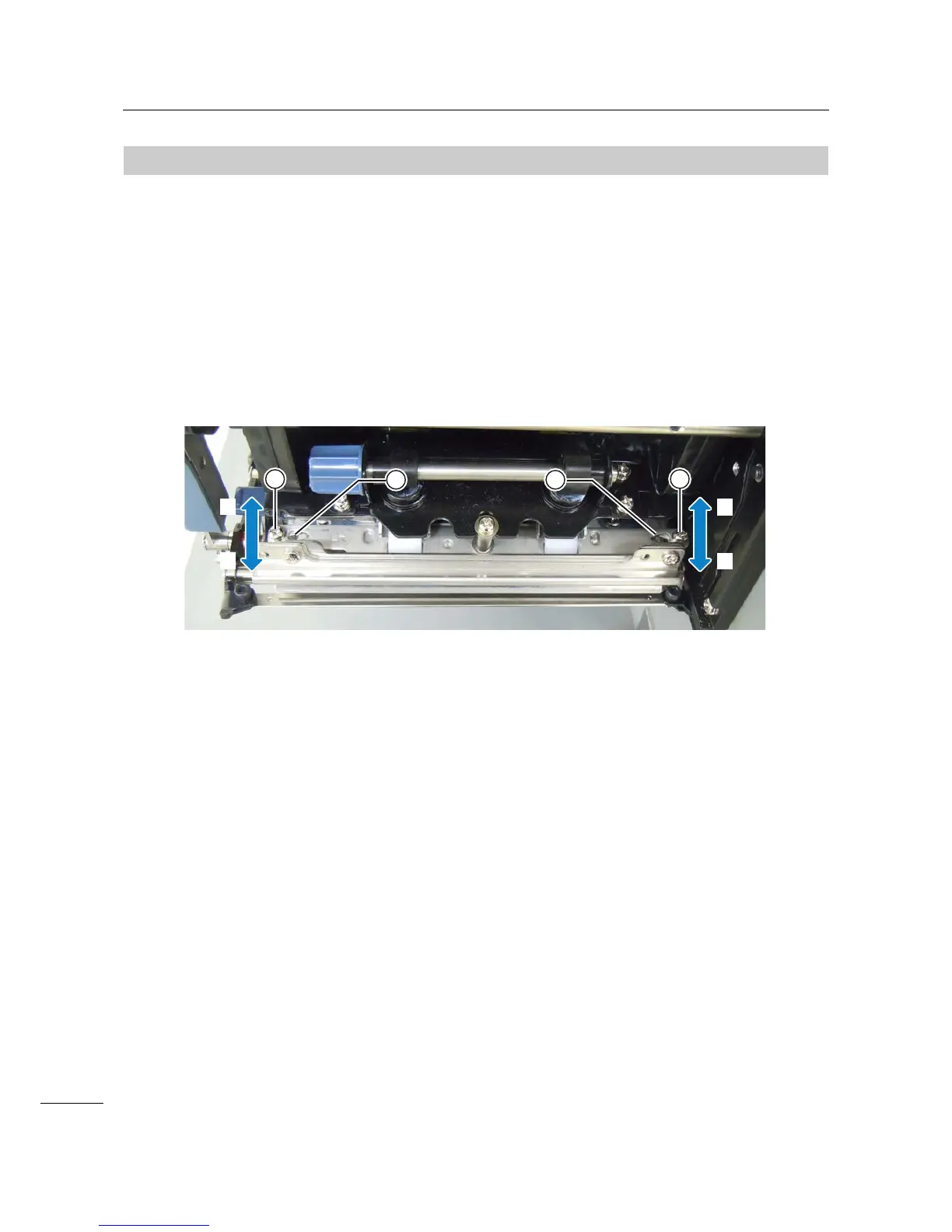

3 Locate two screws  from the front of the print head assembly.
4 Loosen two screws  using the Phillips screwdriver.
Do not remove the screws.
5 Insert the slotted screwdriver into the regulation apertures  on the left and right
sides. Adjust the head position by turning the slotted screwdriver in the relevant
direction.
• Direction A: Print head position moves forward.
• Direction B: Print head position moves backward.
6 Tighten two screws .
1 1
2 2
B
A
B
A
