8 Appendix
306
S84-ex/S86-ex Operator Manual
8.2 Media Sensor Positions and Media Stop
Positions

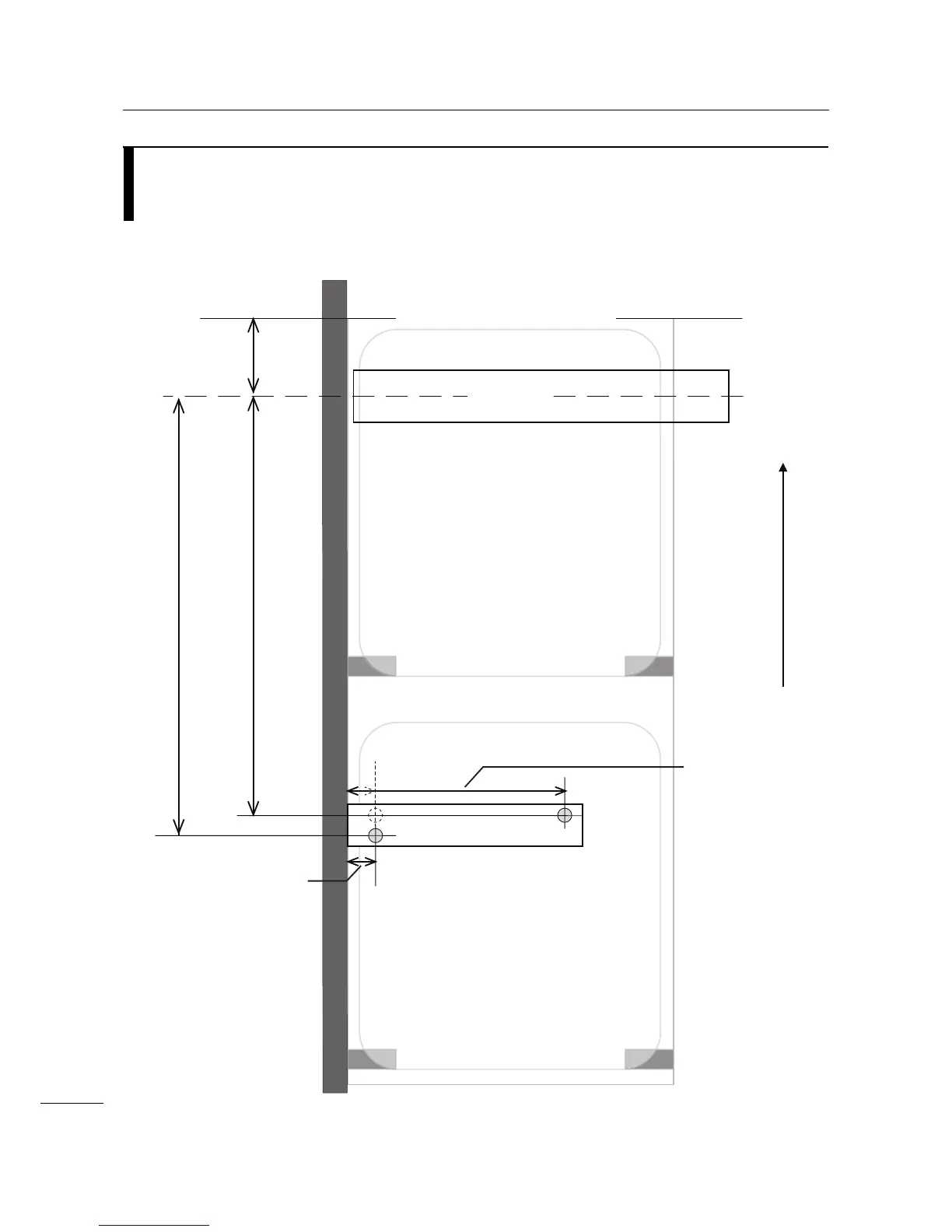

The media sensor positions and the media stop position are as follows:
S84-ex/S86-ex (Americas: Standard/Right Hand, Europe/Asia: Left Hand) printer:
I-mark sensor
Media feed direction
Media stop position in dispense mode
Gap sensor
Frame
Print head
123 mm
(4.8”)
15 mm
(0.6”)
5 mm (0.2”)
S84-ex:
5 mm ~ 66 mm
(0.2” ~ 2.6”)
S86-ex:
5 mm ~ 81 mm
(0.2” ~ 3.2”)
129 mm
(5.1”)
I-mark sensor
Gap sensor
Print head
Media feed direction
