8 Appendix
307
S84-ex/S86-ex Operator Manual

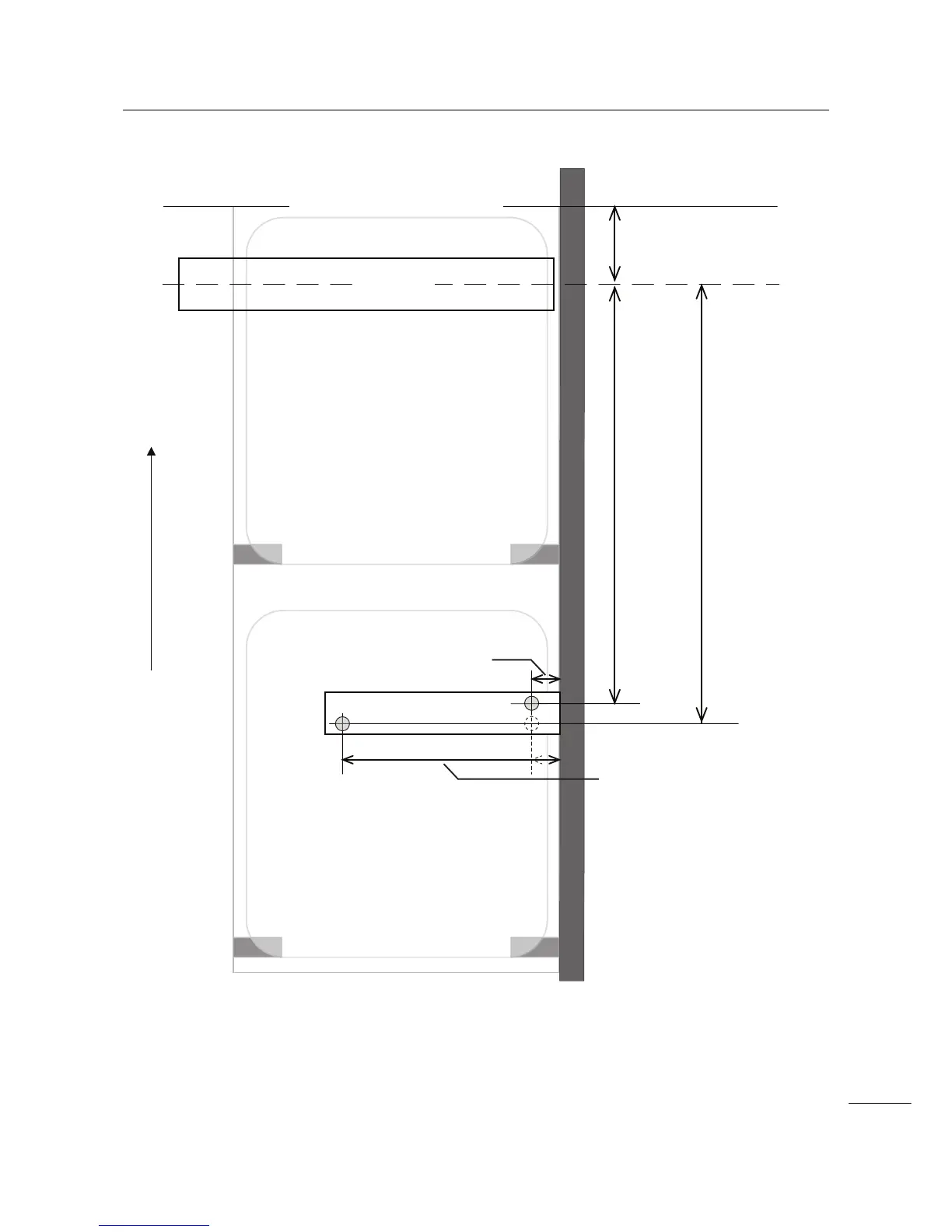

S84-ex/S86-ex (Americas: Opposite/Left Hand, Europe/Asia: Right Hand) printer:
I-mark sensor
Media feed direction
Gap sensor
Frame
Print head
120 mm
(4.7”)
15 mm
(0.6”)
5 mm (0.2”)
S84-ex:
5 mm ~ 66 mm (0.2” ~ 2.6”)
S86-ex:
5 mm ~ 81 mm (0.2” ~ 3.2”)
126 mm
(4.9”)
Media stop position in dispense mode
I-mark sensor
Gap sensor
Print head
Media feed direction
