Print head width and printable width
Print Head Density
S84-ex S8400
Print Head
Width
Printable
Width
Print Head
Width
Printable
Width
8 dots/mm (203 dpi) 112 mm (4.41”) 104 mm (4.09”) 112 mm (4.41”) 104 mm (4.09”)
12 dots/mm (305 dpi) 108 mm (4.25”) 104 mm (4.09”) 106.6 mm (4.2”) 104 mm (4.09”)
24 dots/mm (609 dpi) 107 mm (4.21”) 104 mm (4.09”) 104 mm (4.09”) 104 mm (4.09”)

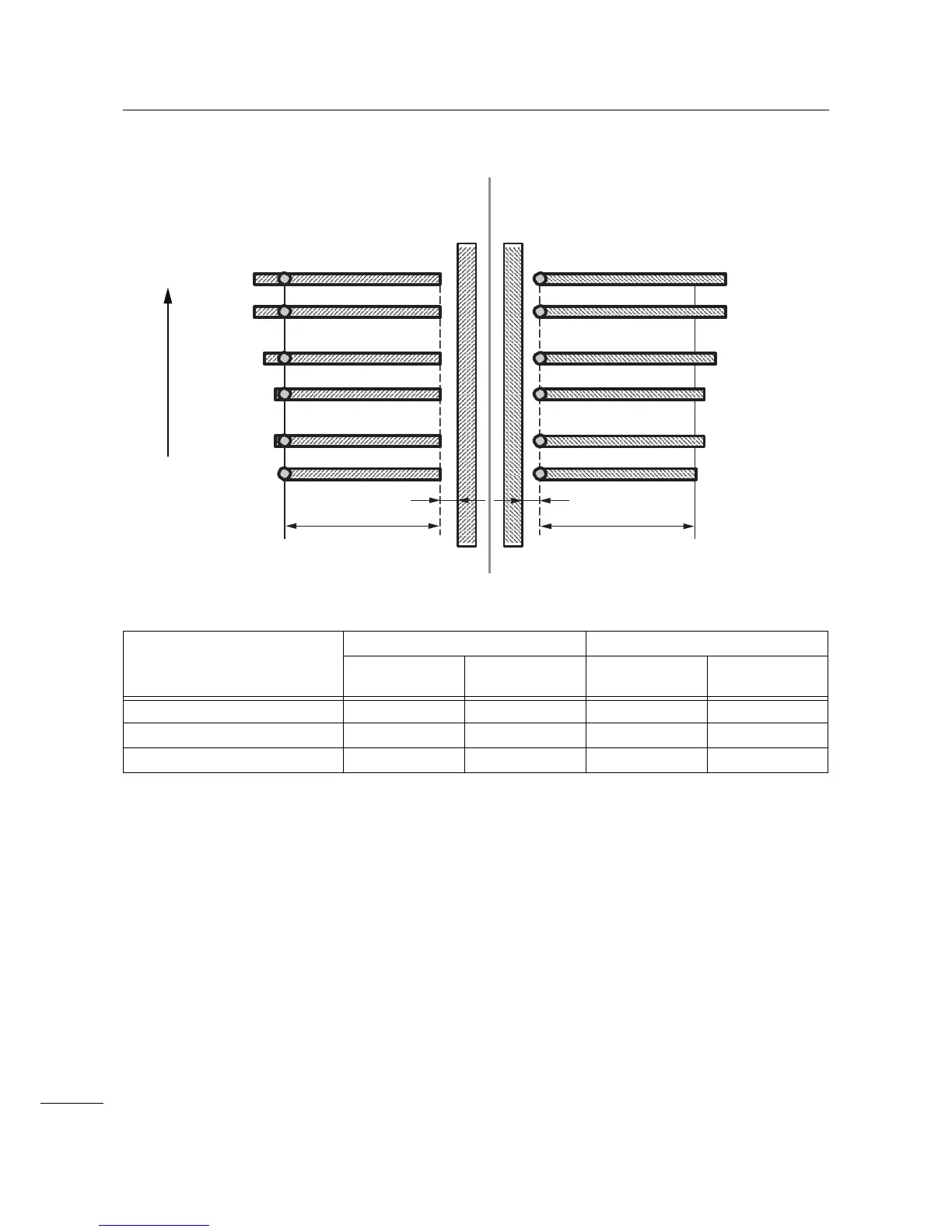

Media feed direction
Frame
S84-ex (Americas: Opposite/Left Hand,
Europe/Asia: Right Hand) printer
S84-ex (Americas: Standard/Right Hand,
Europe/Asia: Left Hand) printer
Printable area
㻌
㻌
112.0 mm
112.0 mm
108.0 mm
106.6 mm
107.0 mm
104.0 mm
3.0 mm
Printable width
104.0 mm
S84-ex
(203dpi)
S8408
S84-ex
(305dpi)
S8412
S84-ex
(609dpi)
S8424
Frame
Printable area
㻌
㻌
112.0 mm
112.0 mm
108.0 mm
106.6 mm
107.0 mm
104.0 mm
3.0 mm
Printable width
104.0 mm
S84-ex
(203dpi)
S8408
S84-ex
(305dpi)
S8412
S84-ex
(609dpi)
S8424
