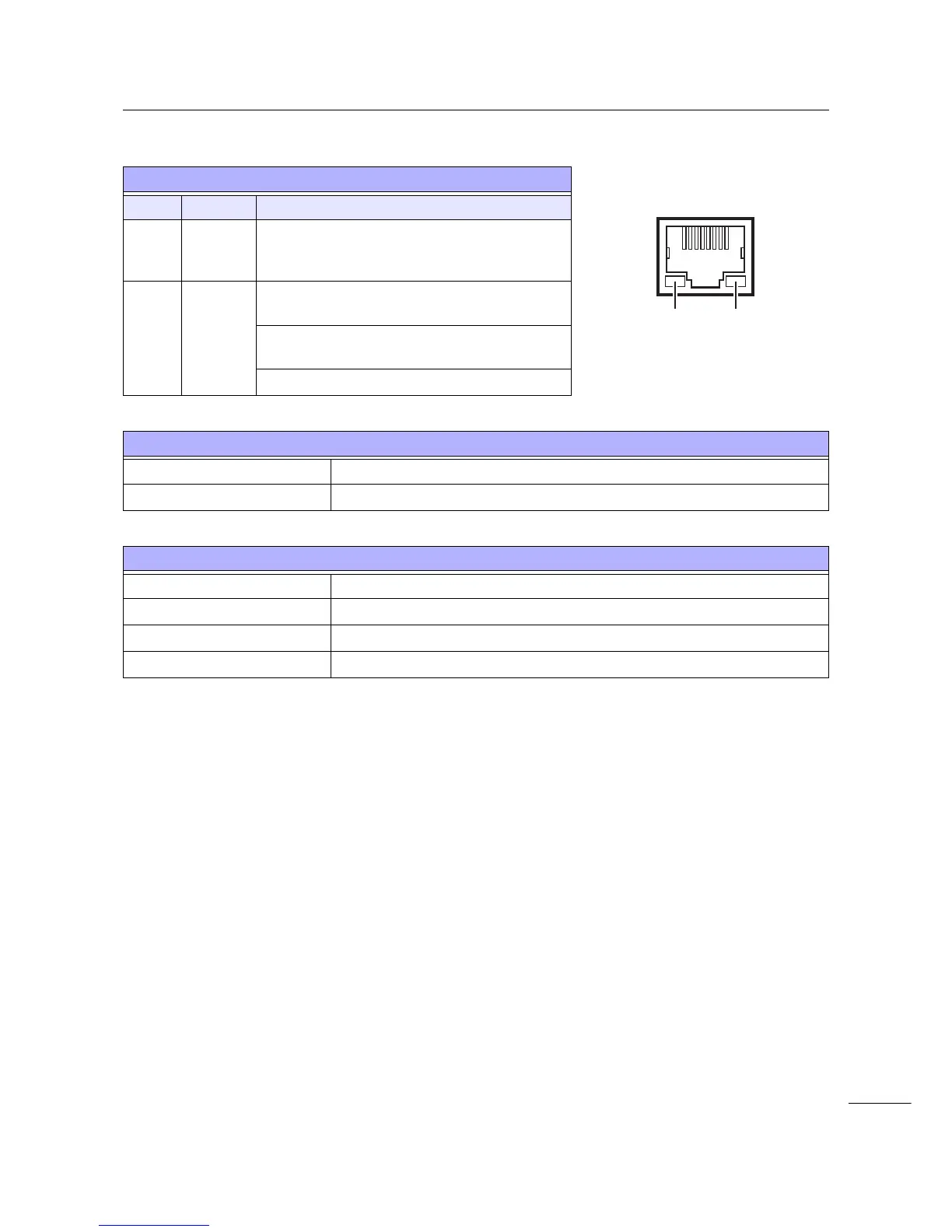

Link/Status LED
LED Color Description
LED1 Green LED lights up for 10 ms when packets are
received. LED lights up when the printer
established the LINK with Ethernet device.
LED2 Orange
LED lights off when the printer detected the
connection to 10BASE-T.
LED lights up when the printer detected the
connection to 100BASE-TX.
LED lights up when a cable is not connected.
Cable Specifications
Cable 10BASE-T/100BASE-TX Category 5
Cable Length 100 m (328 feet) or less
Software Specifications
Supported Protocol TCP/IP
Network Layer ARP, IP, ICMP
Session Layer TCP, UDP
Application Layer LPD, FTP, TELNET, BOOTP, DHCP, HTTP, SNMP, SNTP
