Scania DC11 - Renewing the Bearing in the Intermediate Gear for the Compressor

01:03-02
©
Scania CV AB 2011, Sweden
113
Renewing the bearing in the intermediate gear for the compressor
Special tools

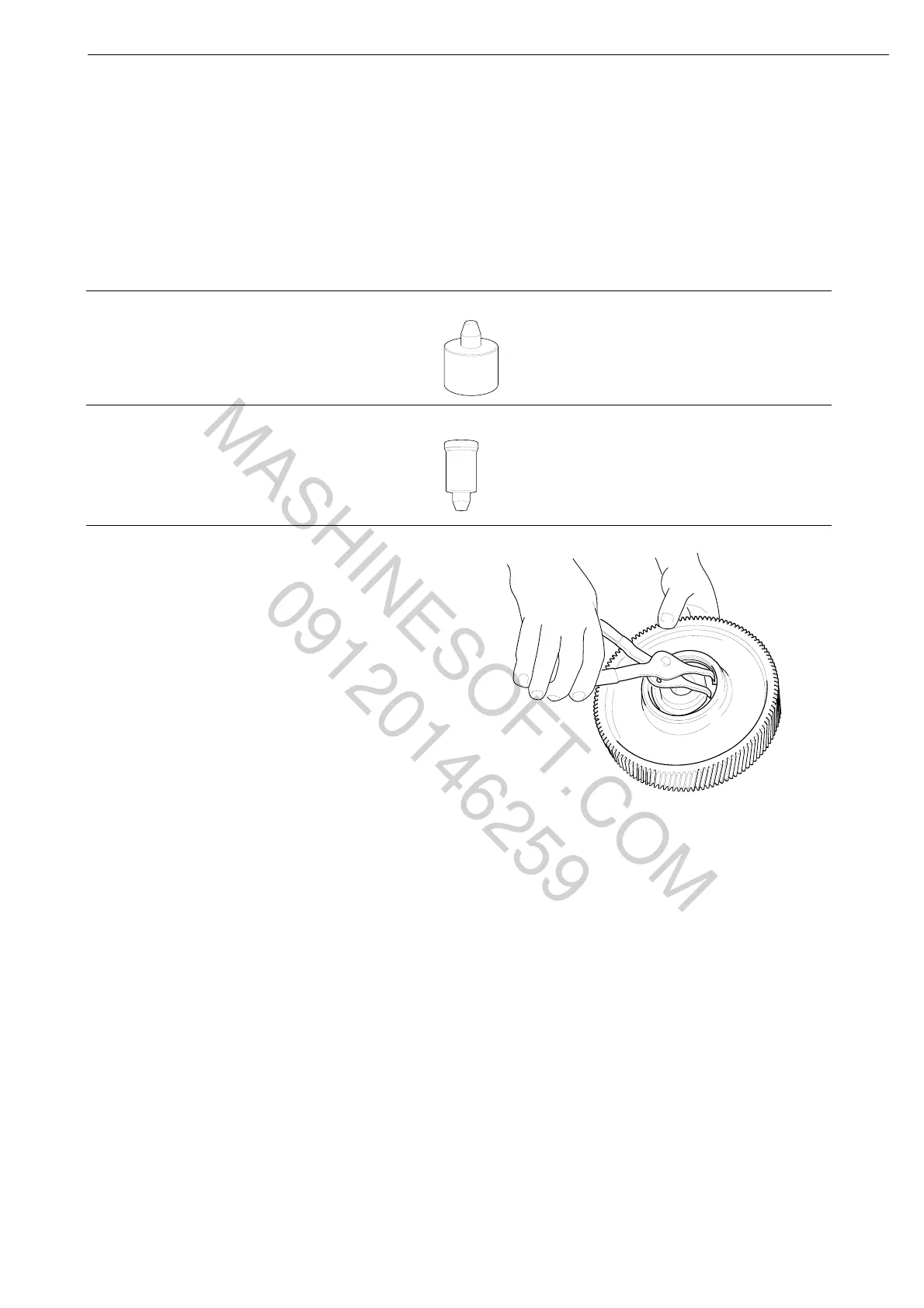

1 Remove the retaining ring.
2 Press the bearing packet out of the gear.
3 Press the shaft journal out of the bearing.
4 Press the shaft journal into a new bearing
using tool 87 348. Do not press on the outer
race.
5 Press the ring on the shaft journal.
6 Press the bearing packet into the
intermediate gear. Use tool 87
592.
7 Fit the retaining ring.
Number Denomination Illustration Tool board
87 348 Drift AM1
87 592 Drift -
104 862
87 348
87 592
110 331
01 1360
Timing gear
