Scania DC11 - Renewing the Front Crankshaft Seal

80
©
Scania CV AB 2011, Sweden
01:03-02
Renewing the front crankshaft seal
The description applies from the following engine serial numbers onwards:
Scania Södertälje: 5719194
Scania Zwolle: 5719107
Scania Angers: 5718891

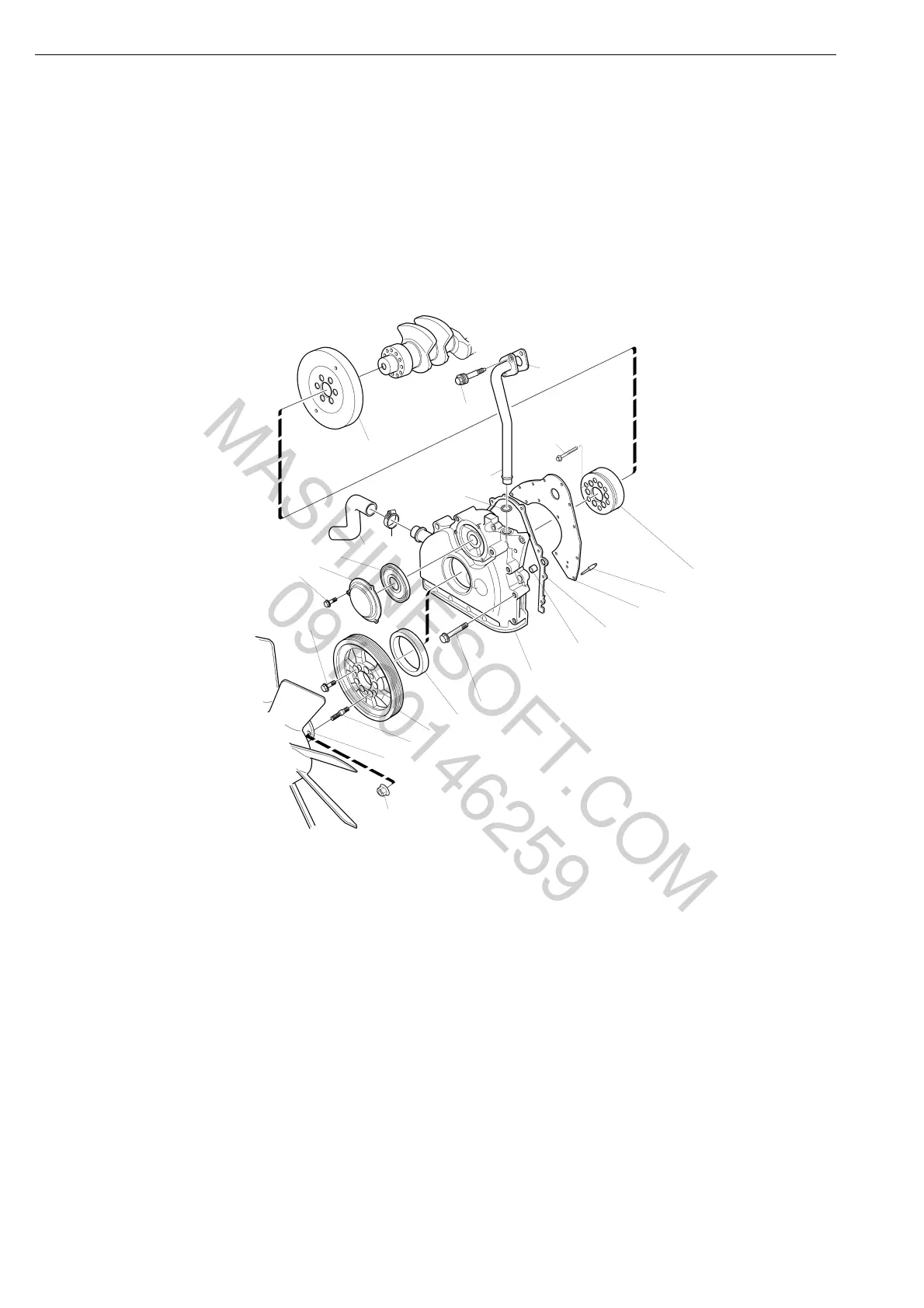

Crankcase ventilation and front crankshaft seal
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
108 968
24
1 Nut
2 Fan
3 Stud
4 Flange screw
5 Pulley
6 Shaft seal
7 Flange screw
8 Housing
9 Pin
10 Gasket
11 Cover plate
12 Rivet
13 Shaft journal
14 Flange screw
15 Cover
16 Diaphragm
17 Hose
18 Hose clamp
19 O-ring
20 Pipe
21 Flange screw
22 Gasket
23 Torsion damper
24 Flange screw
Front crankshaft seal
